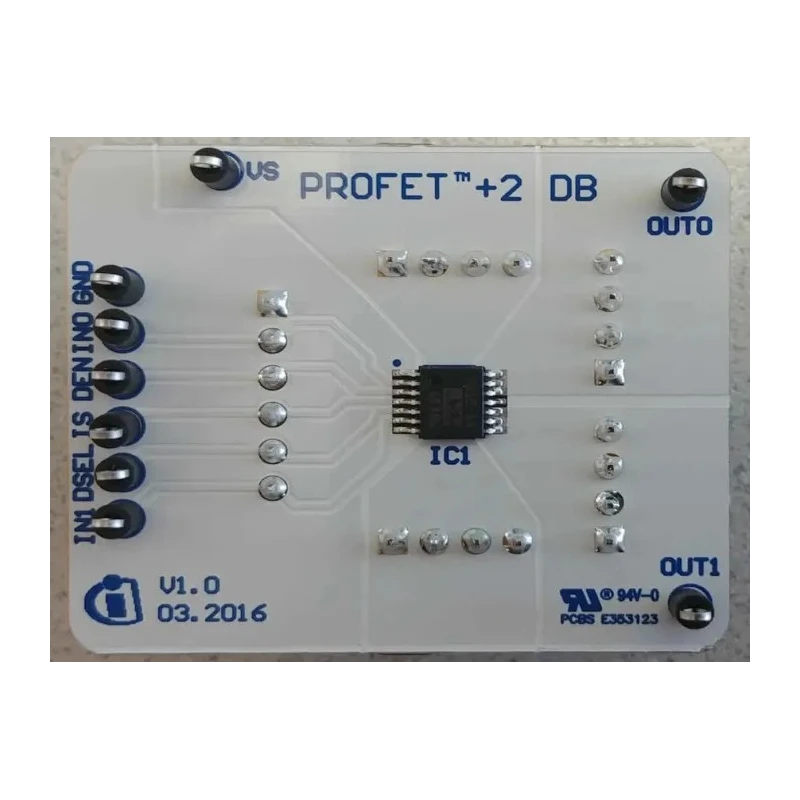

Infineon Evaluation Board with High-Side Switch BTS7200-2EPA for Automotive Applications BTS7200-2EPA

Infineon BTS7200-2EPA Evaluation Board (model BTS7200-2EPA) is designed specifically for automotive power management and testing applications. This daughterboard contains one high-side switch device, BTS7200-2EPA, providing reliable switching capabilities in automotive environments. The board is engineered for compatibility with the PROFET™+2 12V motherboard, allowing easy system integration and design flexibility.

The evaluation board features multiple protections including current tripping prevention, over-temperature shutdown, and overvoltage protection to ensure robust operation under varying electrical conditions. Load diagnosis is facilitated by the integrated load current sense output, enabling in-depth monitoring and fault detection.

This compact evaluation solution is optimized for easy laboratory testing and rapid prototyping, enabling designers and engineers to efficiently assess device performance. It supports pin-to-pin compatibility with other products in the BTS family and allows the use of external components to tailor performance to specific applications.

Compliance with RoHS standards ensures that the board meets environmental protection guidelines. This makes the BTS7200-2EPA daughterboard an ideal component for automotive electronics development in professional lab and industrial settings including power, motor, and robotics applications.

Includes one high-side switch BTS7200-2EPA integrated on the daughterboard. Compatible with PROFET™+2 12V motherboard for flexible integration. Offers protection against current tripping, over-temperature, and overvoltage conditions.

Includes load diagnosis features using load current sense output. Optimized for design flexibility through pin-to-pin and external components compatibility. Compact design enables miniaturization of evaluation setup. Suitable for lab evaluations requiring quick pick and place solutions.

Complies with RoHS environmental standards.

This product is a specialized evaluation board designed for automotive power management with high reliability and protection features. It is ideal for applications in automotive electronics, industrial power systems, and development projects focusing on motor control and robotics. Explore the full range of power, motor, and robotics development tools and Evaluation Boards on EnvMart.
