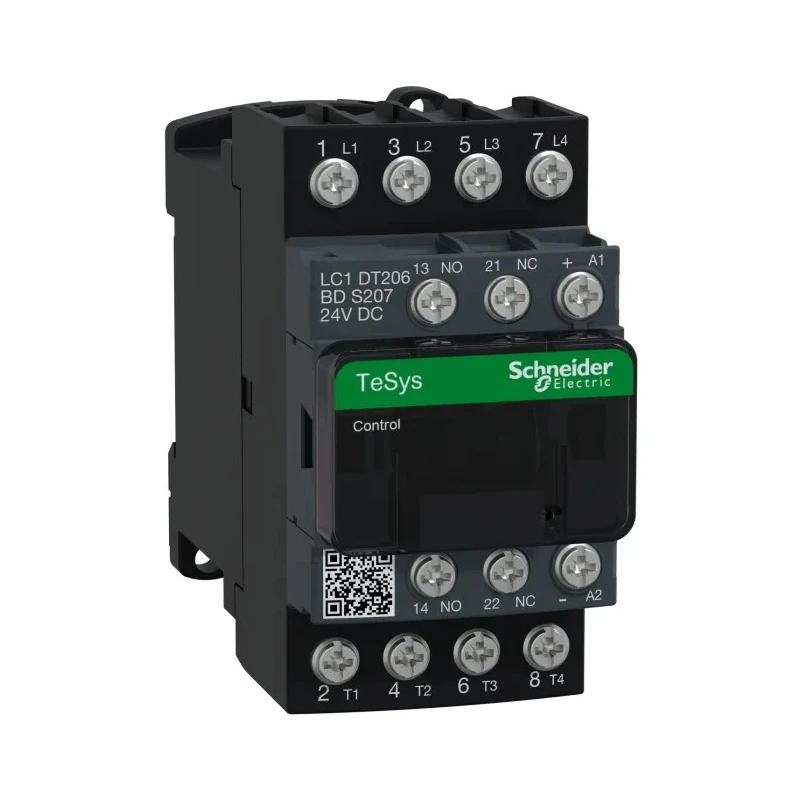

Schneider Electric Reversing Contactor 24V DC Coil, 4-Pole, 20A, 4 NO, 690V LC1DT206BDS207
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Reversing |
| Length | 85mm |
| Model | LC1DT206BDS207 |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Lug Ring |
| Number of Poles | 4 |
| Standards/Approvals | EN, IEC, UL |
| Contact Voltage | 690V |
| Coil Voltage | 24V dc |
| Normal State Configuration | 4 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 20A |
| Number of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 4-pole configuration for reliable motor reversing.
- Operates with a coil voltage of 24V DC and contact current of 20A.
- Includes 4 normally open (NO) contacts supporting up to 690V contact voltage.
- Mounts easily on DIN rail installations for flexible setup.
- Auxiliary contacts include 1 NO and 1 NC configuration for control signaling.
- Designed for motor control and reversing functions with long mechanical and electrical life.
- Operates across a temperature range of -40°C to 60°C for reliability in diverse environments.
- Constructed with lug ring type terminals ensuring secure connections.
Product Description
Schneider Electric LC1DT206BDS207 reversing contactor is engineered for industrial motor control and reversing applications. Equipped with a robust 24V DC coil and 4 poles, this contactor provides a reliable 20A full load current at 690V AC-1 rating. Its 4 normally open contacts offer efficient switching capabilities, while an auxiliary contact set including 1 NO and 1 NC enhances control circuit flexibility.
The contactor is designed for DIN rail mounting, facilitating quick integration into control systems. Its lug ring terminal type ensures secure and efficient electrical connections. Certified to meet international standards EN, IEC, and UL, it guarantees high safety and operational quality. The operational temperature range from -40°C to 60°C allows stable performance under various environmental conditions.
Manufactured in France, this component aligns with Better World sustainability initiatives, featuring a design that supports easy disassembly and environmental responsibility. It is a critical element in automation, electrical, and manufacturing sectors requiring dependable motor reversing capabilities.
4-pole construction with 4 NO contacts rated for 20A, 690V AC. 24V DC coil voltage optimized for motor control functions. Auxiliary contacts configured as 1 NO/1 NC for control signaling. DIN rail mount for installation flexibility.
Lug ring terminals for secure connections. Operating temperature range: -40°C to 60°C. Complies with EN, IEC, and UL standards. Better World product with disassembly design for sustainability.
This Reversing Contactor suits industrial automation, motor starters, HVAC systems, manufacturing equipment controls, and other electrical motor control applications. For detailed integration, engineers and technicians can rely on its long mechanical and electrical lifespan, ensuring durability and productivity.
Explore more Schneider Electric automation components and related electrical control equipment at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 24V DC.
It supports a maximum contact voltage of 690V.
This reversing contactor has a full load current rating of 20A.
This model features a 4-pole configuration.
The dimensions are 85mm in length, 99mm in depth, and 45mm in width.
It operates within a temperature range of -40°C to 60°C.
It is equipped with lug ring type terminals for secure connections.
It includes one auxiliary contact configured as 1 NO and 1 NC.
Yes, it is designed for easy DIN rail mounting.
This contactor complies with EN, IEC, and UL standards.
It is intended for motor control and reversing applications in industrial automation, HVAC systems, and manufacturing equipment controls.
This reversing contactor is manufactured in France.
