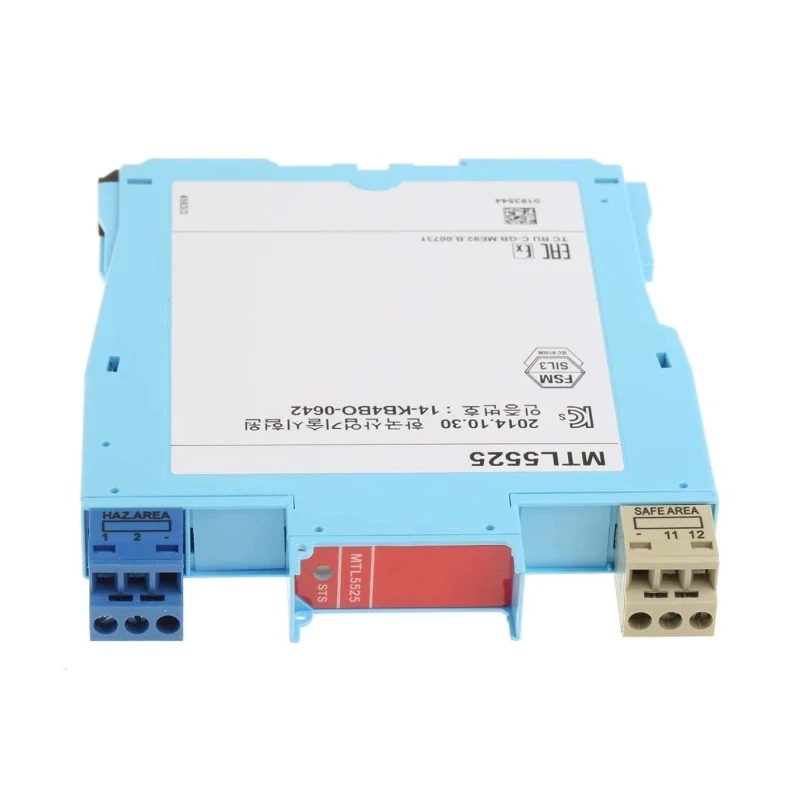

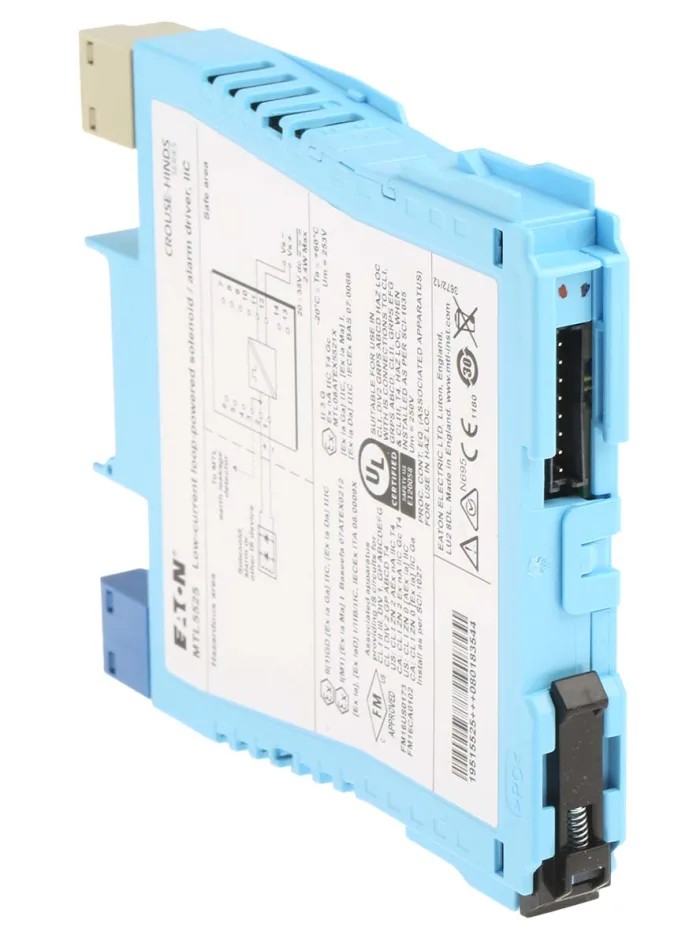

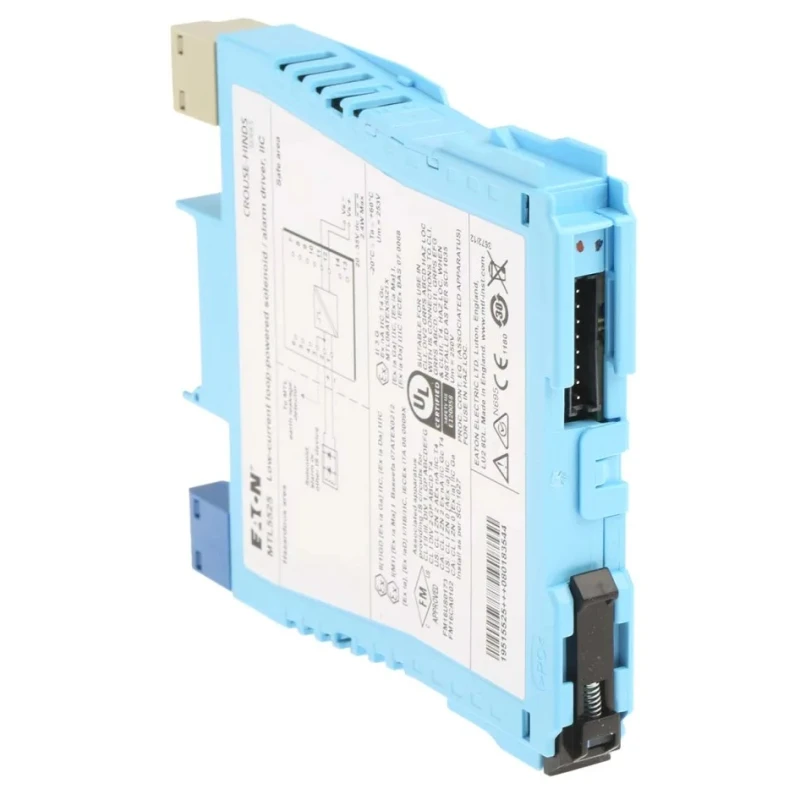

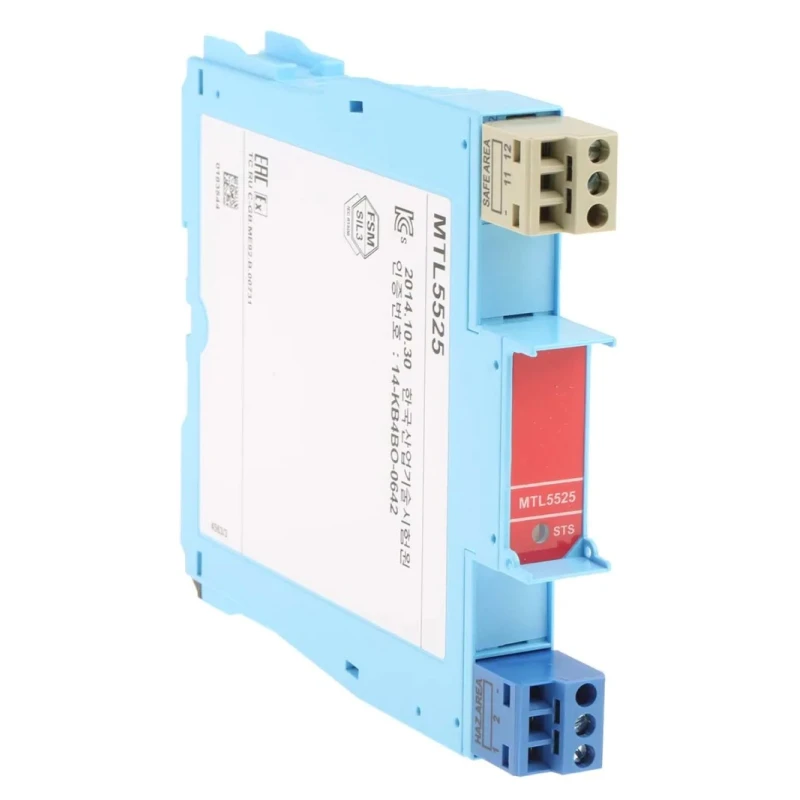

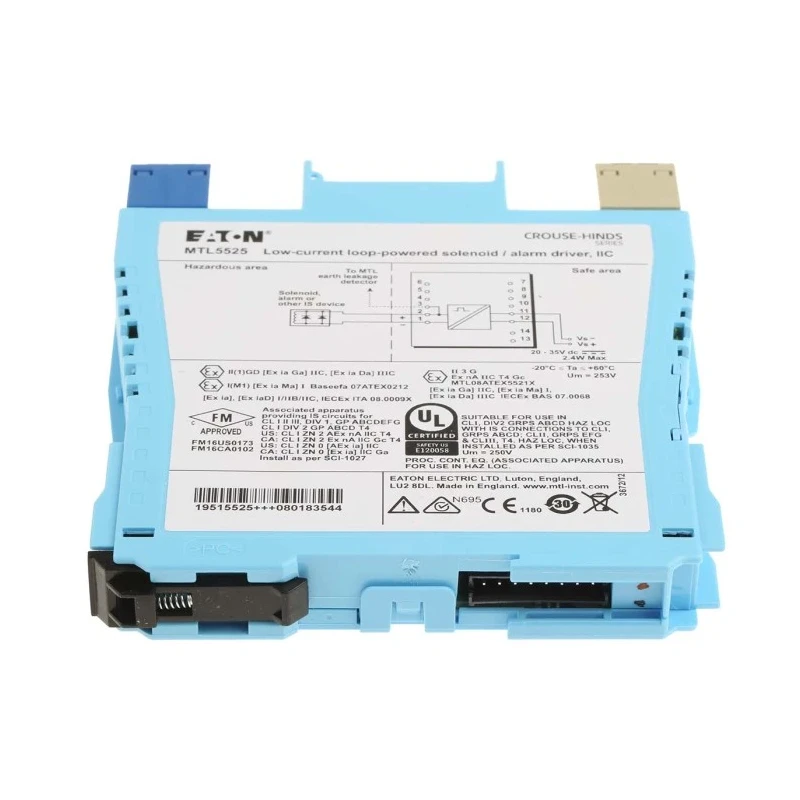

Eaton Signal Conditioner Voltage Input 1.4-4.5 V dc, Voltage Output 7.8-24 V, Supply 20, 35 V dc, Zone 0 IIC T4 to 6 MTL5525
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | Input, Voltage Output, 20V dc, 35 V dc Supply, Zone 0, IIC, T4 to 6, Group RS St |
| Brand | Eaton |
| Model | MTL5525 |
| Mount Type | DIN Rail |
| Series | MTL |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Cable |
| Number Of Channels | 1 |
| Output Range | 7.8 → 24 V |
| Input Range | 1.4 → 4.5 V dc |
| Supply Voltage | 20, 35V dc |
| Hazardous Area Certification | Zone 0, IIC, T4 to 6, Group A, Hazardous location, Div 1 |
| Input Signal Type | Voltage |
| Standards/Approvals | IEC 61508:2010 |
| Standards/ApprovalsIEC 61508 | 2010 |
| IEC 61508 | 2010 |
Key Features
- Supports input voltage range from 1.4 to 4.5 V dc.
- Provides output voltage range between 7.8 and 24 V.
- Operates with supply voltages of 20 and 35 V dc.
- Certified for Zone 0, IIC, T4 to 6 hazardous locations ensuring safe use.
- Features DIN rail mount for easy installation.
- Operates in temperatures ranging from -20°C to 60°C.
- Includes cable terminals for secure electrical connections.
- Equipped with green power and yellow status LED indicators.
Product Description
The Eaton MTL5525 Signal Conditioner is designed for precise voltage input and output control, suitable for hazardous environments classified as Zone 0, IIC, T4 to 6 Group. It supports an input voltage range of 1.4 to 4.5 V dc and provides a voltage output range from 7.8 to 24 V, operating with supply voltages of 20 and 35 V dc.
This device is ideal for controlling low-power devices such as solenoids, alarms, and LEDs in hazardous areas by isolating and converting signals reliably. The inclusion of electrically isolated ports enhances operator safety by minimizing the risk of electrical shocks, while the color-coded connectors (grey for safe and blue for hazardous) ensure proper and safe installation.
The MTL5525 boasts a robust design capable of working in a wide temperature range from -20°C up to 60°C, making it suitable for demanding industrial conditions. Its DIN rail mounting feature allows for quick and convenient assembly in control panels.
Certified under IEC 61508:2010, this Signal Conditioner meets rigorous functional safety requirements. It is equipped with a green LED power indicator and a yellow output status indicator that offers quick visual confirmation of operational status.
Applications for the Eaton MTL5525 include industrial, manufacturing, automation control systems, and hazardous area monitoring where reliable signal conditioning with safety compliance is critical.
Supports input voltage range from 1.4 to 4.5 V dc. Provides output voltage range between 7.8 and 24 V. Operates with supply voltages of 20 and 35 V dc. Certified for Zone 0, IIC, T4 to 6 hazardous locations ensuring safe use.
Features DIN rail mount for easy installation. Operates in temperatures ranging from -20°C to 60°C. Includes cable terminals for secure electrical connections. Complies with IEC 61508:2010 safety standards. Equipped with green power and yellow status LED indicators.
Electrically isolated ports minimize operator shock risk. Explore more signal conditioning solutions available on EnvMart for industrial and hazardous environment applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 1.4 to 4.5 V dc.
It provides a voltage output range between 7.8 and 24 V.
This unit operates with supply voltages of 20 and 35 V dc.
It operates in temperatures ranging from -20°C to 60°C.
Yes, it is certified for Zone 0, IIC, T4 to 6 hazardous locations, ensuring safe use in such environments.
It features a DIN rail mount for easy installation.
It includes cable terminals for secure electrical connections.
This unit has one channel.
It complies with IEC 61508:2010 safety standards.
It accepts a voltage input signal type.
It is equipped with a green power indicator and a yellow output status indicator for operational status confirmation.
The country of origin for this model is the United Kingdom.
