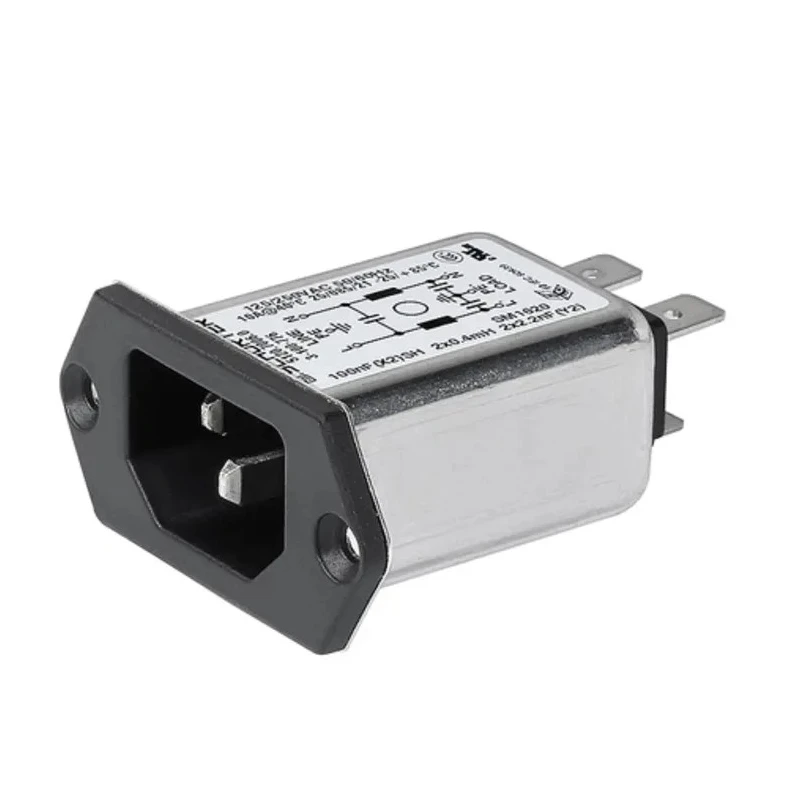

Schurter 5120 Series 250V 4A IEC Connector Quick Connect 3-101-142

Schurter 3-101-142 IEC Connector Quick Connect from the 5120 Series is a high performance IEC line filter designed for professional use in electronic and electrical applications. Rated at 250V and 4A, this IEC connector features a modern compact plastic flange that eliminates beveling for a flat and visually appealing surface, covering nearly the entire metal flange of the filter case.

The connector is suitable for PCB mounting and includes an earth terminal. Its design supports multiple mounting options including screw-on from the front or rear side, snap-in from the front, and rear side PCB versions. The quick connect termination type facilitates efficient assembly and maintenance.

Engineered for use at 60Hz operating frequency, it operates reliably within a temperature range of -25°C to +85°C, making it adaptable for various harsh industrial and medical environments.

These IEC filters are especially ideal for compact and high density switching power supplies with significant transient loads. They comply with medical equipment standards IEC 60601-1 and are suitable for datacom, measurement instruments, and industrial appliances.

Note that the fuse drawer required for fuse size 5 x 20 mm is not included and must be ordered separately. Protection class II versions cater specifically for medical devices used in home care settings as per IEC 60601-1-11 standards.

The connector's compact high performance filter enhances line filtering capacity. Plastic flange design provides a sleek and functional mounting interface. Versatile mounting options increase application flexibility. Complies with UL, VDE, and CCC certifications ensuring quality and safety.

Effective shielding due to the closed metal case maximizes noise reduction. Designed for use in demanding industrial, medical, and telecommunications applications. Fuse drawer sold separately accommodates standard 5 x 20 mm fuses.

Supports operation from -25°C to 85°C ensuring robust performance in varied environments.

This Schurter IEC connector is an excellent choice for engineers and technicians seeking reliable, certified IEC Filters for equipment requiring efficient line filtering and protection at 250V and 4A. It fits well in a broad range of industrial, laboratory, medical, and manufacturing scenarios.
