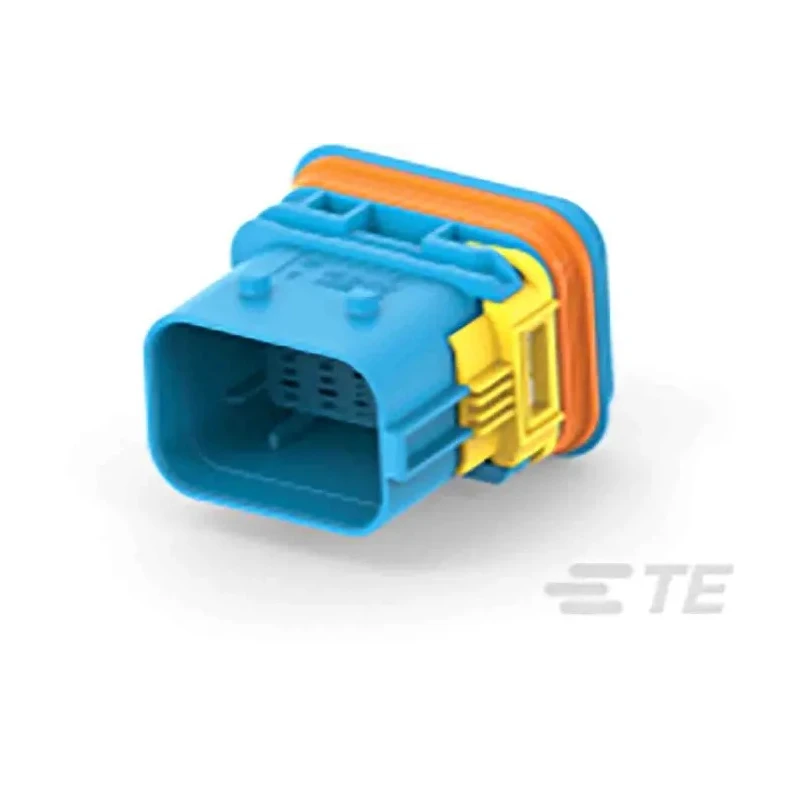

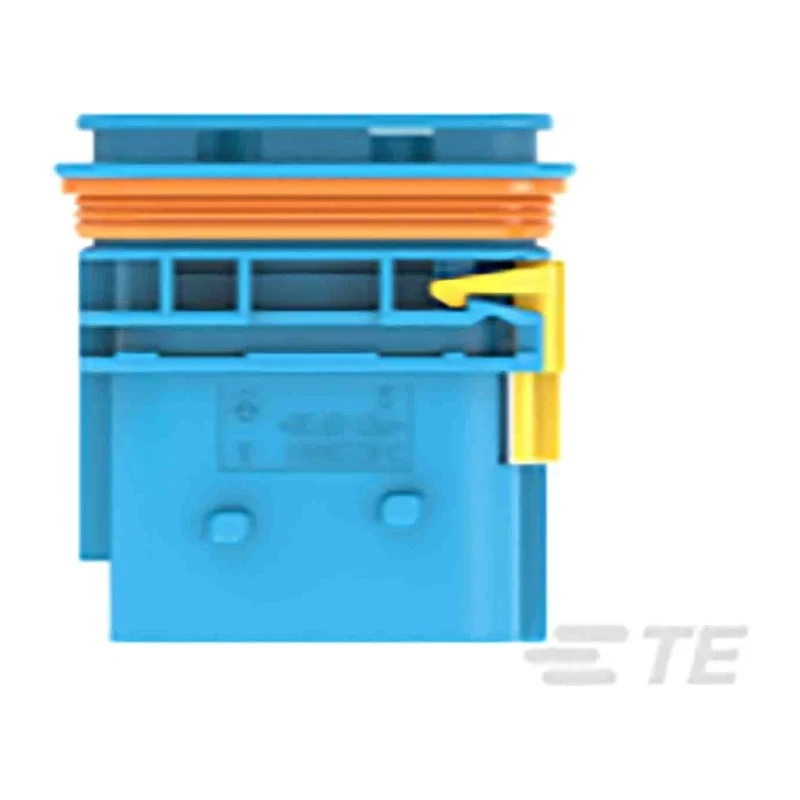

TE Connectivity LEAVYSEAL Automotive Connector Male Black Cable 22 Way Crimp Termination 3-1823449-1

TE Connectivity 3-1823449-1 LEAVYSEAL Automotive Connector Male is a high-performance black cable connector designed for automotive electrical systems. This 22 way crimp termination housing offers robust, sealable, and secure connections ideal for wire-to-wire applications in demanding environments.

Manufactured from fibreglass reinforced polybutylene terephthalate, the connector housing ensures mechanical strength and high temperature resistance up to 120°C. With an IP69K and IP67 ingress protection rating, it provides excellent sealing to safeguard contacts from dust, water, and corrosive elements, fulfilling strict automotive standards.

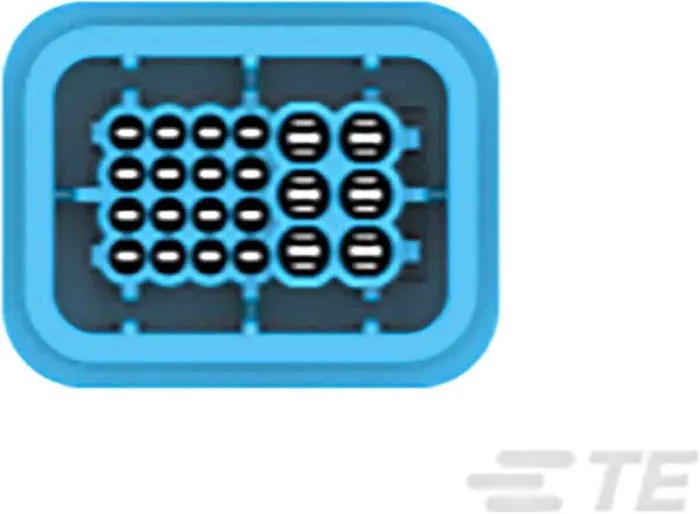

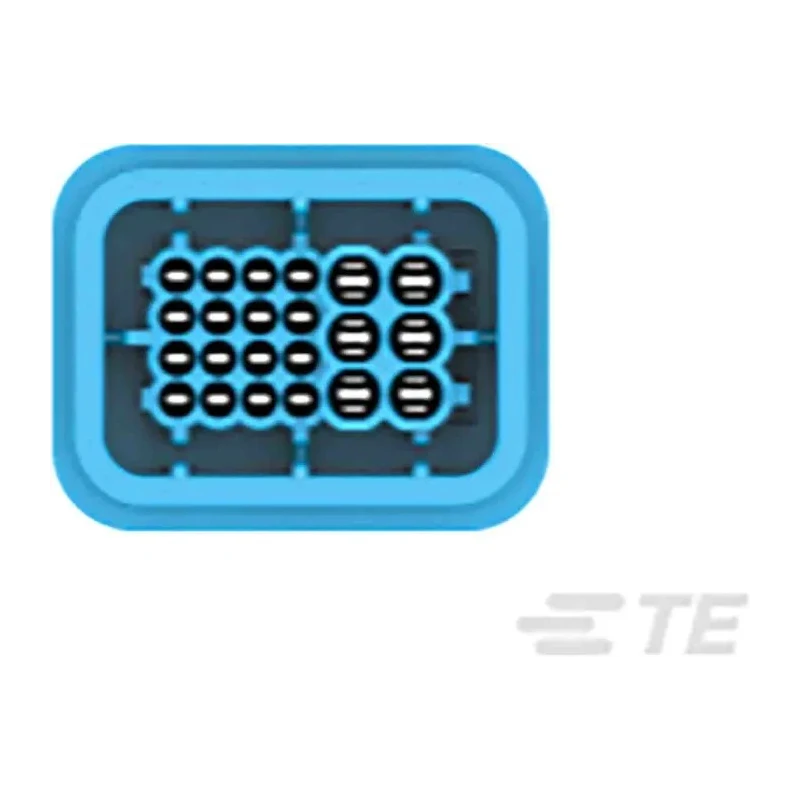

This male connector features 22 contacts organized in 4 rows supporting a current rating of 30A, providing reliable electrical performance for signal and power transmission in automotive or industrial systems. The crimp termination ensures a firm wire connection while the primary locking feature secures the terminals in place, reducing the risk of disconnection due to vibration or stress.

The wire-to-wire connection system is hybrid and sealable, making it suitable for harsh operating conditions and offering user confidence in long term reliability. Its compact dimensions - width 32.4mm, height 49mm, and depth 48.4mm - facilitate integration in constrained spaces common in automotive wiring harnesses.

This connector is recommended for automotive manufacturing, repair, and industrial electrical applications where durable, sealed multi-contact connectors are required. The black color and cable mount type aid in easy identification and installation into complex wiring systems. Note that this product does not include any cord.

The connector features 22 contacts arranged in 4 rows for robust electrical connections. Constructed with fibreglass reinforced polybutylene terephthalate housing for durability and heat resistance. Rated for 30A current with an IP69K and IP67 ingress protection rating, providing excellent environmental sealing.

Operates effectively within a temperature range of -40°C to 120°C. The crimp termination style facilitates secure wire attachment and male gender ensures proper mating. Designed with a primary locking feature on the terminal for secure contact retention.

The connector system is wire-to-wire and sealable for protection against contaminants. Black finish and hybrid connector design suit automotive and industrial electrical applications. Mount type is cable with no included cord, suitable for integration into existing wiring harnesses.

Dimensionally compact with width 32.4mm, height 49mm, and depth 48.4mm for easy installation.
