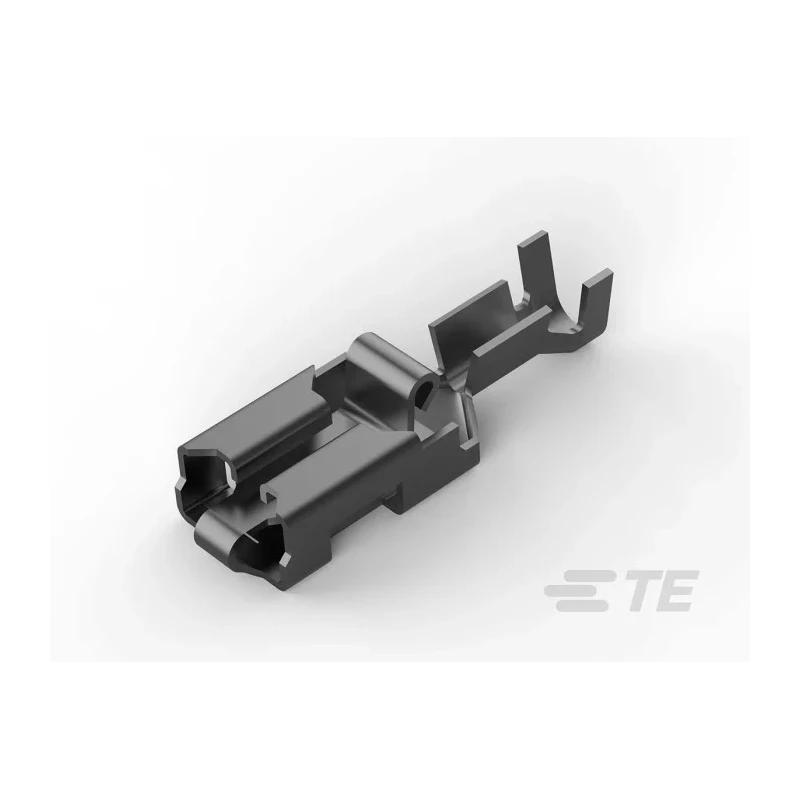

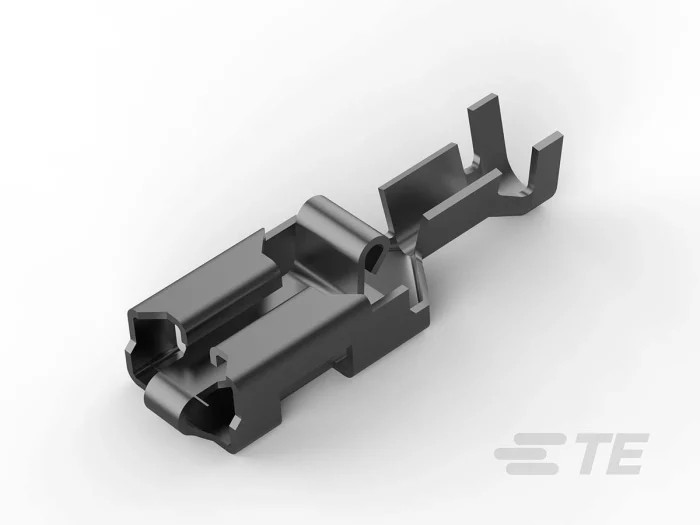

TE Connectivity Mark I 250 Series Female Crimp Terminal 26 AWG Min Crimp 10 AWG Max 1-160759-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Gender | Female |
| Contact Material | Brass |
| Series | Mark I 250 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 110°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Positive Lock 250 Series Housings |
| Standards/Approvals | Certified by Canadian Standards Association File No. LR7189A, File Nos. E66717 and E28476, Recognised under the Component Program of Underwriters Laboratories Inc |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 10AWG |
| Terminal & Splice Type? | Receptacle |
| Wire Size?(AWG) | 20 - 15 |
| Wire Size?(mm²) | .51 - 1.65 |
| Mating Tab Width? | 6.35?mm?[?.25?in?] |
| Mating Tab Thickness? | .81?mm?[?.032?in?] |
Key Features
- Designed specifically for Positive Lock 250 Series Housings.
- Compatible with wire sizes ranging from 26 AWG to 10 AWG.
- Constructed from brass with tin plated contacts for durability.
- Operates reliably in temperatures between -40°C and 110°C.
- Termination is by precise crimp method ensuring secure connections.
- Certified by Canadian Standards Association and Underwriters Laboratories Inc.
- Features a receptacle terminal and splice type for positive locking.
- Mating tab width is 6.35 mm with a thickness of 0.81 mm.
Product Description
TE Connectivity 1-160759-1 is a Female Crimp Terminal from the Mark I 250 Series, intended for industrial and electronic applications requiring secure wire termination. This crimp terminal is designed for use with Positive Lock 250 Series Housings and supports a wide range of wire sizes from 26 AWG minimum to 10 AWG maximum. Its brass contact material is plated with tin to ensure corrosion resistance and excellent electrical conductivity.
The terminal operates effectively across a broad temperature range between -40°C and 110°C, making it suitable for demanding environments in industries such as manufacturing, electronics, and electrical installations. The termination type is by crimping, providing secure and consistent wire connections essential for high reliability.
The terminal and splice type is a receptacle style engineered for positive locking to connect with corresponding tabs. It supports mating tab dimensions with a width of 6.35 mm and thickness of 0.81 mm, compatible with wire sizes typically from 20 to 15 AWG as an additional range for mating terminals.
This product complies with multiple standards, certified by the Canadian Standards Association (File No. LR7189A) and recognized under the Component Program of Underwriters Laboratories Inc. (File Nos. E66717 and E28476), ensuring quality and robust safety compliance.
These terminals are essential in various applications including PCB connections, power connectors, and electronic harness assemblies in industrial, telecommunications, and automotive sectors. They are designed to deliver consistent performance under rigorous operating conditions.
Designed specifically for Positive Lock 250 Series Housings. Compatible with wire sizes ranging from 26 AWG to 10 AWG. Constructed from brass with tin plated contacts for durability. Operates reliably in temperatures between -40°C and 110°C.
Termination is by precise crimp method ensuring secure connections. Certified by Canadian Standards Association and Underwriters Laboratories Inc. Features a receptacle terminal and splice type for positive locking. Mating tab width is 6.35 mm with a thickness of 0.81 mm.
This TE Connectivity Mark I 250 Series Female Crimp Terminal 1-160759-1 is a reliable choice for electronic components and industrial wiring solutions. Explore more related products in the Crimp Terminal category on EnvMart for complete connectivity systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports wire sizes ranging from 26 AWG minimum to 10 AWG maximum.
It operates reliably in temperatures between -40°C and 110°C.
The contacts are constructed from brass and are tin plated for corrosion resistance and improved conductivity.
This terminal is specifically designed for use with Positive Lock 250 Series Housings.
The terminal uses a precise crimp method for secure wire connections.
The mating tab has a width of 6.35 mm and a thickness of 0.81 mm.
It is certified by the Canadian Standards Association and recognized under the Component Program of Underwriters Laboratories Inc.
It features a receptacle terminal and splice type designed for positive locking.
It can also mate with wire sizes typically from 20 AWG to 15 AWG.
The crimp terminal is manufactured in India.
This terminal is suitable for applications including PCB connections, power connectors, and electronic harness assemblies in various sectors.
