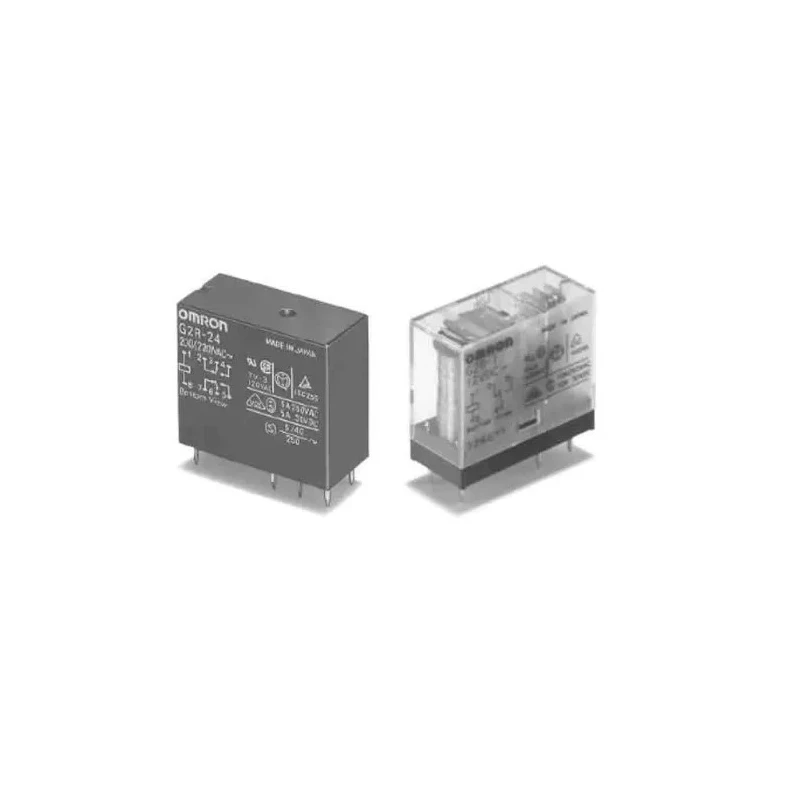

Omron PCB Power Relay 24V DC Coil 4A Switching Current DPST G2R-2A4 DC24
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 29.5mm |
| Length | 29mm |
| Model | G2R-2A4 DC24 |
| Width | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2R |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 4A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 380V ac |
| Coil Power | 530mW |
Key Features
- Operates efficiently with a 24V DC coil voltage.
- Provides DPST (Double Pole Single Throw) contact configuration.
- Supports switching currents up to 4A.
- Designed for PCB mounting with PCB pin terminals.
- Capable of switching AC voltage up to 380V and DC voltage up to 125V.
- Operates reliably between -40°C and 70°C temperature range.
- Constructed with silver alloy contacts for enhanced durability.
- Features low contact resistance of 50mΩ for efficient operation.
Product Description
Omron G2R-2A4 DC24 PCB Power Relay is a high-performance power relay featuring a 24V DC coil suitable for various electronic and electrical automation applications. It is equipped with a DPST contact configuration that facilitates the switching of two separate circuits simultaneously, enhancing control precision and system versatility.
This relay supports a switching current of 4A, allowing it to handle moderate power load requirements effectively. Its coil resistance of 1.1kΩ and coil power consumption of 530mW ensure efficient energy use with minimal heat generation.
Compact in size with dimensions of 29mm length, 13mm width, and 29.5mm height, this relay is designed for PCB mounting using PCB pin terminals, simplifying integration into electronic circuits. The relay operates reliably under a wide temperature range from -40°C to 70°C, making it suitable for varied industrial environments.
The contact material is silver alloy, providing excellent conductivity and resistance to corrosion. With a maximum contact resistance of 50mΩ, the relay maintains low electrical losses ensuring optimal performance. It supports AC voltage switching up to 380V and DC voltage up to 125V, enabling versatile application across AC and DC circuits.
Compliant with RoHS directives, this product meets environmental safety standards, making it a responsible choice for industrial and electronic usages. Operates with 24V DC coil voltage. DPST contact configuration for switching two circuits.
Supports switching currents up to 4A. PCB mount type with PCB pin terminals. Suitable for AC voltages up to 380V and DC voltages up to 125V. Operating temperature range from -40°C to 70°C. Silver alloy contact material for durability.
Maximum contact resistance of 50mΩ. Compact dimensions allow easy PCB integration. RoHS compliant for environmental safety.
Ideal for use in industrial automation, signal conditioning, control panels, and other electrical equipment. Omron power relays are renowned for reliability and long electrical durability, making this model suitable for commercial and manufacturing applications.
Explore more high-quality Power Relays and electrical components on EnvMart to enhance your system designs and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a switching current of up to 4A, making it suitable for moderate power load requirements.
It operates with a coil voltage of 24V DC, ensuring efficient operation in various applications.
The relay has compact dimensions of 29mm in length, 13mm in width, and 29.5mm in height, allowing for easy integration into PCB layouts.
It features a DPST (Double Pole Single Throw) contact configuration, enabling the switching of two separate circuits simultaneously.
It can switch AC voltage up to 380V and DC voltage up to 125V, providing versatility for different electrical circuits.
This relay operates reliably within a temperature range of -40°C to 70°C, making it suitable for various industrial environments.
It is designed for PCB mounting and uses PCB pin terminals for easy integration into electronic circuits.
The contacts are made from silver alloy, which enhances conductivity and resistance to corrosion.
The coil resistance is 1.1kΩ and the coil power consumption is 530mW, ensuring efficient energy use with minimal heat generation.
Yes, it is RoHS compliant, meeting environmental safety standards for responsible use in industrial applications.
The maximum contact resistance is 50mΩ, which helps maintain low electrical losses during operation.
It is ideal for use in industrial automation, signal conditioning, control panels, and other electrical equipment.
