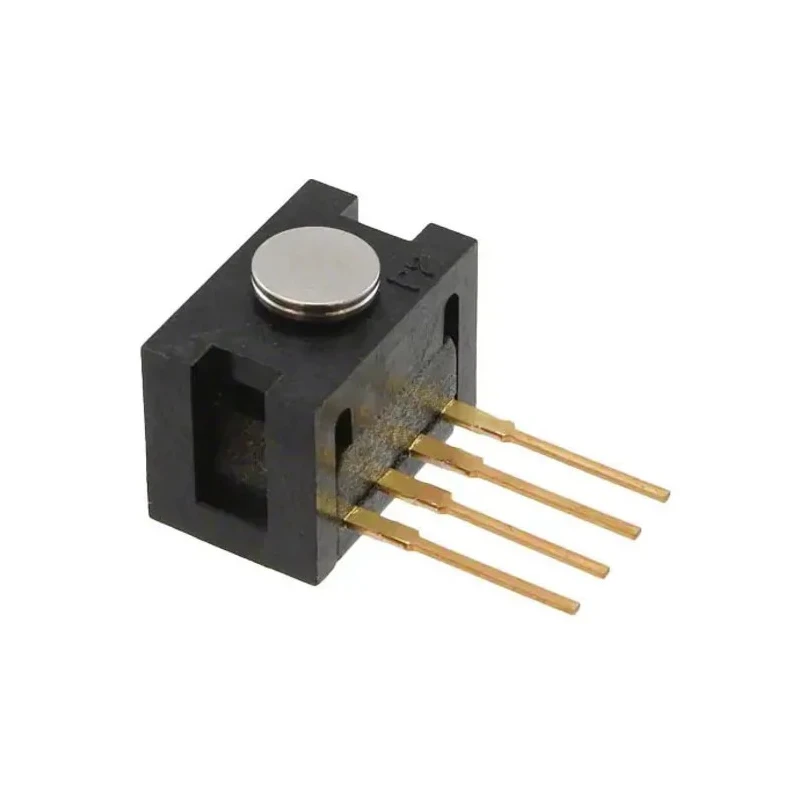

Honeywell Technologies FSG Series Button Load Cell, Tension and Compression Force Measurement, 0N to 2.04kg FSG020WNPB
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Length | 12.7mm |
| Model | FSG020WNPB |
| Depth | 9.04mm |
| Sensor Type | Button |
| Width | 7.98mm |
| Mount Type | Surface |
| Housing Material | Plastic |
| Series | FSG |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Maximum dc Voltage | 10V dc |
| Force Measured | Tension, Compression |
| Maximum Force/Load Measurement | 2.04kg |
| Minimum Force/Load Measurement | 0N |
Key Features
- The sensor features a compact button style suitable for surface mounting applications.
- Constructed with a plastic housing to ensure lightweight and environmental protection.
- Operates reliably between -40°C to 85°C temperature range.
- Utilizes a wire terminal type for easy connectivity in automated systems.
- Capable of handling maximum DC voltage of 10V, making it suitable for battery-operated devices.
- Excellent low deflection with minimal repeatability and linearity error for accurate force measurement.
- Low off-center loading error enhances system accuracy despite mechanical misalignments.
- Low power consumption allows integration into battery-powered industrial or laboratory equipment.
Product Description
Honeywell FSG020WNPB is a button load cell sensor designed for precise measurement of tension and compression forces ranging from 0 N up to 2.04 kg. Featuring a compact button sensor type and plastic housing, it is ideal for surface mounting in automated and industrial control systems. This load cell operates over a minimum temperature of -40°C to a maximum of 85°C, making it suitable for diverse operating environments.
The sensor's specialized piezoresistive micro-machined silicon element ensures reliable and repeatable force sensing performance with extremely low deflection and minimal linearity error. Its design minimizes off-center loading errors, thus improving measurement accuracy despite mechanical misalignments.
With a maximum DC voltage rating of 10V and wire terminal type, this Load Cell is compatible with battery-powered and low-power industrial applications. The plastic housing contributes to light weight and environmental resistance, supporting long-term reliability in demanding conditions.
This model is widely used in industrial automation, manufacturing process monitoring, laboratory equipment, and quality control systems where accurate force measurement is critical. Its compact size of 12.7mm length, 7.98mm width, and 9.04mm depth allows easy integration into tight spaces.
The product condition is new, ensuring fresh supply with full factory specifications. The sensor delivers precise tension and compression force measurement with low power consumption. Plastic housing ensures durability and lightweight construction.
Designed for surface mounting with wire terminals for connectivity. Wide operating temperature range from -40°C to 85°C enhances application versatility. Maximum DC voltage of 10V suitable for battery applications. For more industrial-grade sensors and load measurement devices, explore the categories at EnvMart to find equipment suited to your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Honeywell FSG020WNPB load cell measures forces ranging from 0 N to 2.04 kg for both tension and compression applications.
This load cell operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
The FSG020WNPB features a plastic housing, ensuring lightweight construction and environmental protection.
It utilizes a wire terminal type for easy connectivity, making it suitable for integration into automated systems.
The maximum DC voltage rating for this model is 10V, which allows it to be used in battery-operated devices.
This load cell has dimensions of 12.7 mm in length, 7.98 mm in width, and 9.04 mm in depth, allowing for easy integration into tight spaces.
The FSG020WNPB is widely used in industrial automation, manufacturing process monitoring, laboratory equipment, and quality control systems.
This model minimizes off-center loading errors, enhancing measurement accuracy despite mechanical misalignments.
The sensor type of this load cell is a button, designed for surface mounting applications.
Low power consumption allows the FSG020WNPB to be integrated into battery-powered industrial or laboratory equipment, enhancing its versatility.
The country of origin for this load cell is China, ensuring compliance with relevant manufacturing standards.
The FSG020WNPB is part of the Honeywell FSG Series, which includes various models designed for force measurement applications.
