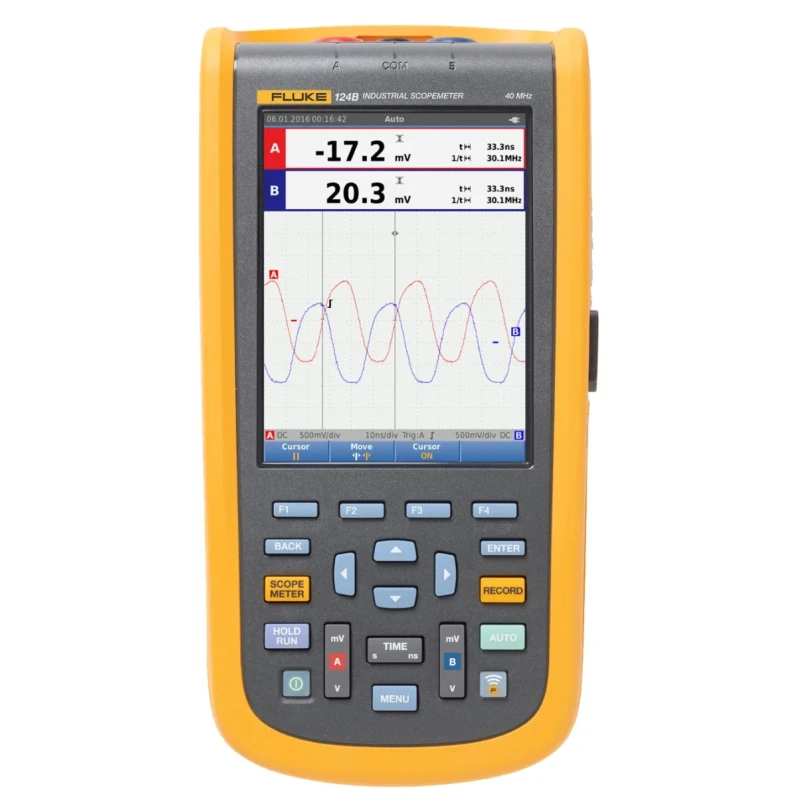

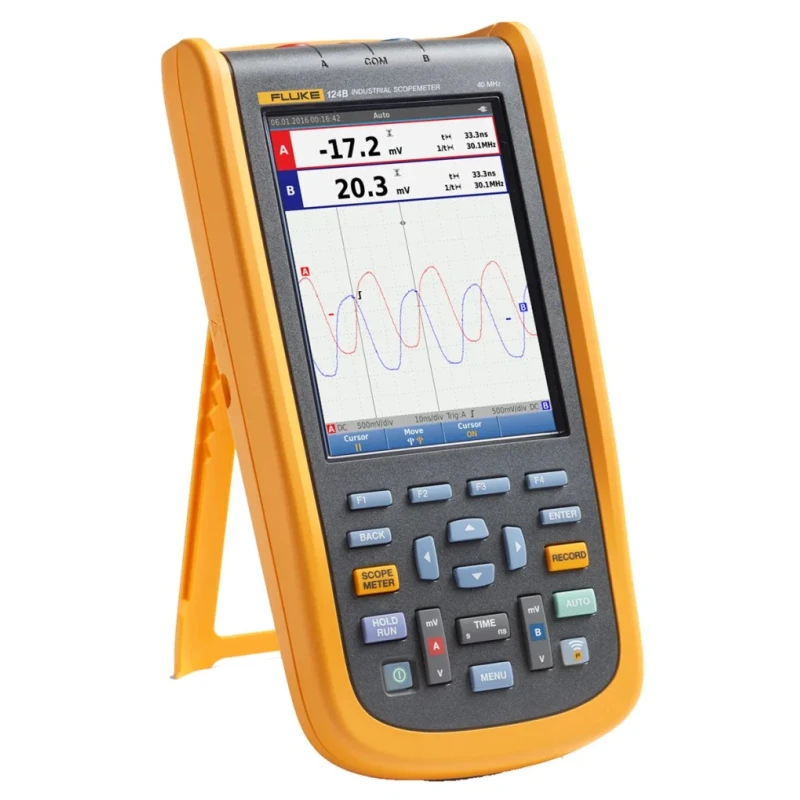

Fluke 120B Series 40 MHz Handheld Digital Oscilloscope, 2 Channels, 5.7-inch TFT Colour Display FLUKE-124B/UK

Fluke FLUKE-124B/UK handheld digital oscilloscope from the 120B Series features a 40 MHz bandwidth and 2 analogue channels, designed for versatile electrical and electronic testing applications. Powered by a NiMH battery with a 7-hour life, it includes a 5.7-inch TFT colour display delivering sharp and accurate waveform visualization, ideal for field and laboratory use.

The oscilloscope's compact form factor measuring 259 x 132 x 55 mm and weighing 1.4 kg ensures easy portability and rapid deployment in diagnostic and maintenance tasks.

Interfaces include CAN, RS232, RS422, RS485, and USB, facilitating seamless data transfer and connection to external devices for enhanced monitoring and analysis workflows. Safety certifications for CAT III (750V) and CAT IV (600V) categories enable secure operation in industrial and high-voltage environments.

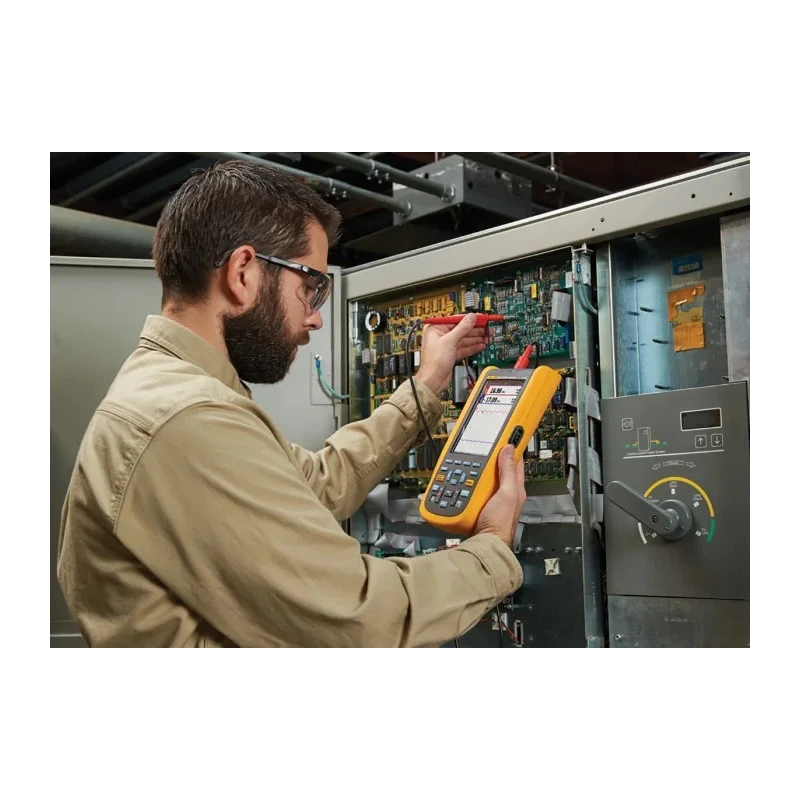

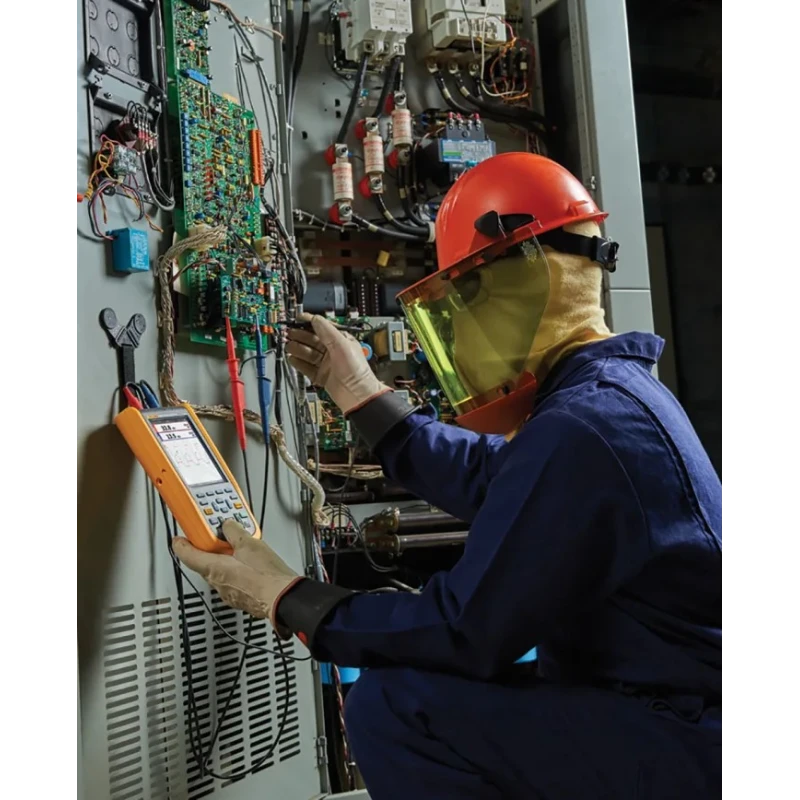

Typical applications include troubleshooting automation equipment, electrical circuit repairs, mechanical system diagnostics, and advanced electronic signal analysis. The device features a maximum time base of 500 ns/div, minimum time base of 10 ns, maximum vertical sensitivity of 200 V/div, and a rise time of 8.75 ns, ensuring high-quality signal capture.

Compact handheld design for easy transportation and setup. 40 MHz bandwidth supports detailed signal investigation. Dual analogue channels for simultaneous measurements. Variety of communication interfaces for flexible connectivity.

Extended battery life for prolonged usage in the field. Safety standards IEC 61010-2-033 and IEC 61010-4 compliance. TFT colour display enables clear waveform visibility. Input impedance of 1 MΩ minimizes circuit loading.

Suitable for diagnostics and maintenance in electrical and mechanical systems.

This Fluke handheld oscilloscope is an essential tool for industrial maintenance, electronics development, and HVAC troubleshooting. It combines portability with professional-grade measurement capabilities, supporting a wide range of industrial, laboratory, and commercial applications. Browse EnvMart's extensive range of precision Oscilloscopes for reliable test and measurement solutions.
