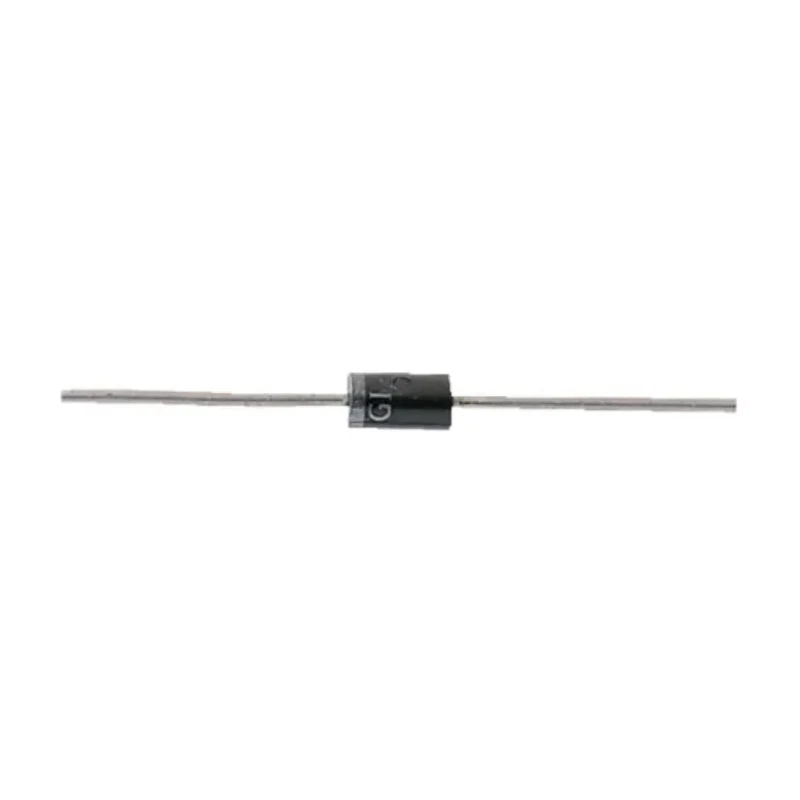

HY Electronic Corp 100 V 5 A Schottky Diode 2-Pin Through Hole DO-27 SR5100
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 5.6mm |
| Brand | HY Electronic Corp |
| Height | 9.5mm |
| Length | 59.5mm |
| Model | SR5100 |
| Mount Type | Through Hole |
| Series | SR5100 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-27 |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 5A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 850mV |
| Metal | Semiconductor junction with guard ring |
Key Features
- The diode features a maximum continuous forward current of 5 A.
- It supports a peak reverse repetitive voltage of 100 V.
- Constructed with semiconductor junction and guard ring for enhanced performance.
- Includes a colour band demarking the cathode for easy identification.
- Operates reliably between -55°C to 150°C temperature range.
- Maximum forward voltage drop is 850 mV allowing for efficient conduction.
- Designed with a 2-pin configuration in a DO-27 package for through-hole mounting.
- Peak non-repetitive forward surge current capacity is 150 A.
Product Description
HY Electronic Corp SR5100 Schottky Diode 2-Pin DO-27 is a 100 V 5 A diode designed for fast switching and polarity protection in power management and high-frequency inverter applications.
This diode features a single diode configuration with a low forward voltage drop of 850 mV and a peak reverse current of 50 mA, making it efficient in reducing power loss and heat generation during operation.
The diode is constructed using a semiconductor junction with a guard ring and epitaxial design to enhance current carrying capability and reliability. It uses a colour band to denote the cathode ensuring correct polarity during PCB assembly and through-hole mounting with a DO-27 package.
The product operates over a wide temperature range from -55°C to 150°C, supporting robust performance in harsh industrial, electronic, and automotive environments. It withstands a peak non-repetitive forward surge current of 150 A for transient conditions.
Dimensions include a diameter of 5.6 mm, height of 9.5 mm, and length of 59.5 mm, making it a compact and durable component suitable for discrete semiconductor circuit designs. The diode offers high current capability supporting up to 5 A continuous forward current.
It is designed primarily for power management, freewheeling high-frequency inverters, and polarity protection circuits in electronics industry. The plastic package material carries UL 94V-0 flame retardant recognition ensuring safety compliance in electronic assemblies.
Manufactured in China with careful quality control and industrial standards. Its fast switching ability and low forward voltage make it ideal for efficiency and thermal management in circuits.
The HY Electronic Corp SR5100 is part of a series of Schottky barrier rectifiers, providing reliable performance for industrial and laboratory electronics applications. Explore more Schottky Diodes and rectifiers at EnvMart to find complementary components for semiconductor projects and power management systems.
