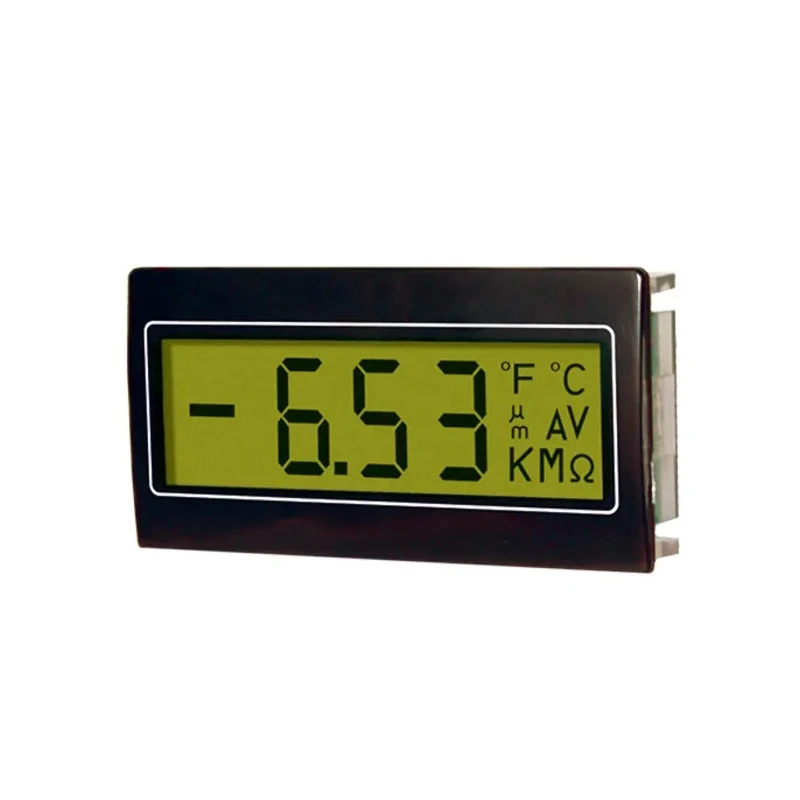

Trumeter LCD Digital Panel Multifunction Meter Voltage Measurement 3.5 Digit 68 mm x 33 mm DPM952
Specifications
| Country of Origin | Malaysia |
|---|---|
| Display Type | LCD |
| Brand | Trumeter |
| Model | DPM952 |
| Depth | 14mm |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 3.5 |
| Minimum Operating Temperature | 0°C |
| Digit height | 14mm |
| Standards/Approvals | CE |
| Properties Measured | Voltage |
| Cutout Height | 68mm |
| Cutout Width | 33mm |
| Minimum Measurement | 3 (5 V Mode) V, 7 (9 V Mode) V |
Key Features
- Panel mount digital meter suitable for voltage monitoring.
- 3.5 digit LCD with 14 mm digit height ensures easy readability.
- Operates at 5 V DC or 9 V DC power supply for flexible use.
- Compact dimensions with 68 mm height and 33 mm width cutout size.
- Wide operating temperature range from 0°C to 50°C for varied environments.
- Low power consumption with 2 mA supply current.
- Measurement accuracy of 0.1% for reliable results.
- Supports scalable sample rate of 3 readings per second.
Product Description
Trumeter DPM952 is an LCD Digital Panel Multifunction Meter designed specifically for voltage measurement applications. It features a clear 3.5 digit LCD display with 14 mm digit height housed in a compact panel mount form factor measuring 68 mm in height and 33 mm in width.
This digital meter operates on either 5 V DC or 9 V DC power supply, providing versatile installation options. It boasts low power consumption at 2 mA supply current, ensuring energy efficiency and minimal heat generation during extended use.
The device delivers a high measurement accuracy rate of 0.1%, suitable for precise voltage monitoring in electrical, industrial automation, and process control environments. It can sample readings at a scalable rate of 3 samples per second, allowing timely updates for monitoring systems.
Designed to operate reliably within a temperature range of 0°C to 50°C, the meter is well suited for various indoor industrial and laboratory settings. The meter complies with CE standards, indicating adherence to essential safety and quality directives.
The DPM952 model supports minimum voltage measurements of 3 V in 5 V mode and 7 V in 9 V mode, enabling detection of low voltage signals. Its compact cutout depth is 14 mm, facilitating straightforward panel integration without excessive depth requirements.
Panel mount digital meter suitable for voltage monitoring. 3.5 digit LCD with 14 mm digit height ensures easy readability. Operates at 5 V DC or 9 V DC power supply for flexible use. Compact dimensions with 68 mm height and 33 mm width cutout size.
Wide operating temperature range from 0°C to 50°C for varied environments. Low power consumption with 2 mA supply current. Measurement accuracy of 0.1% for reliable results. Supports scalable sample rate of 3 readings per second.
Complies with CE standards for quality assurance. Minimum voltage measurement capability: 3 V (5 V mode) and 7 V (9 V mode).
This digital multifunction meter is suitable for numerous industrial automation, electrical control, laboratory, and process monitoring applications, providing a dependable solution for accurate voltage measurement and display. Explore other automation and control gear products for comprehensive system integration on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DPM952 has a measurement accuracy of 0.1%, providing reliable results for voltage monitoring applications.
This model operates within a temperature range of 0°C to 50°C, making it suitable for various indoor environments.
It operates at either 5 V DC or 9 V DC power supply, allowing for flexible installation options.
The cutout dimensions required for installation are 68 mm in height and 33 mm in width.
The display features 3.5 digits, with a digit height of 14 mm for easy readability.
The meter can measure a minimum voltage of 3 V in 5 V mode and 7 V in 9 V mode.
It supports a scalable sample rate of 3 readings per second, allowing for timely updates in monitoring systems.
This model uses an LCD display, which is clear and easy to read.
The cutout depth required for panel mounting is 14 mm.
Yes, it complies with CE standards, indicating adherence to essential safety and quality directives.
This digital multifunction meter is suitable for industrial automation, electrical control, laboratory, and process monitoring applications.
The device has a low power consumption of 2 mA supply current, ensuring energy efficiency during use.
