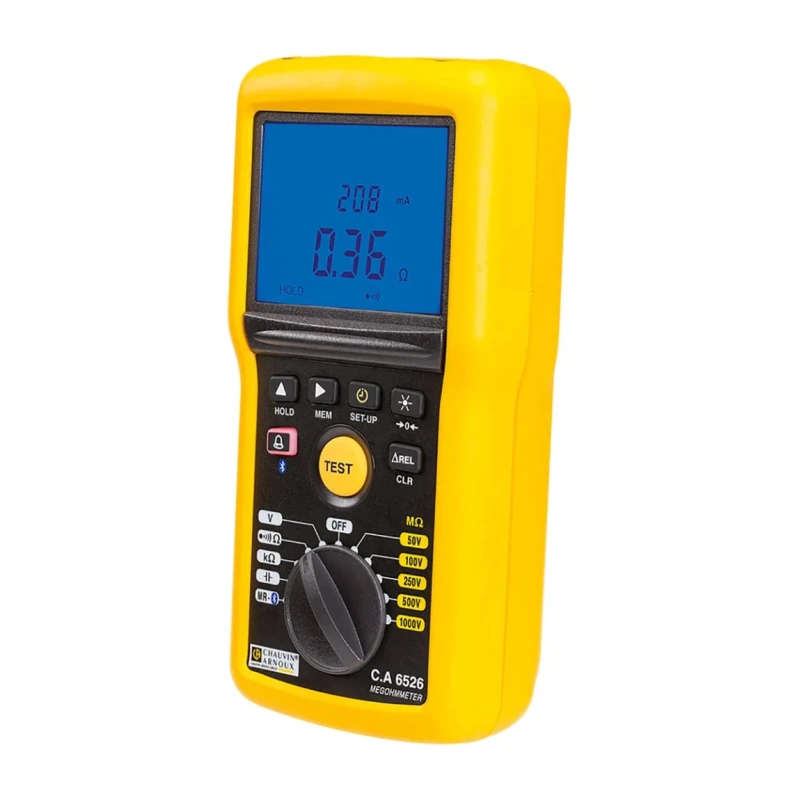

Chauvin Arnoux Insulation & Continuity Tester 50V Min, 1kV Max, 200 GΩ, CAT IV CA 6526 P01140826

Chauvin Arnoux CA 6526 Insulation & Continuity Tester is designed for industrial maintenance to perform precise insulation resistance and continuity tests. It supports test voltages ranging from 50 V minimum to 1 kV maximum and measures insulation resistance up to 200 GΩ with high accuracy. The tester complies with CAT IV safety standards rated for 600 V, ensuring safe operation in demanding industrial environments.

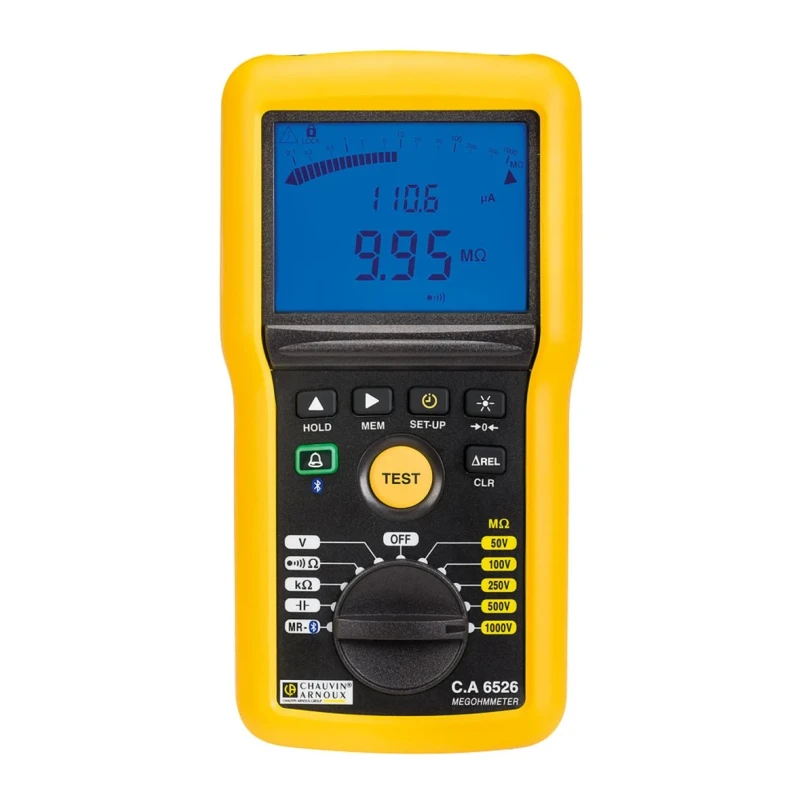

This digital tester features a clear 2 x 4000 count display combined with a logarithmic bar graph, offering easy-to-read measurement results. It calculates polarization index (PI) and dielectric absorption ratio (DAR) to provide detailed insulation quality analysis. The compact and lightweight design (211 mm height, 108 mm length, 60 mm width, and 850 g weight) makes it suitable for field use and industrial site applications with IP54 protection against dust and splashing water.

Operating temperature ranges from -20°C to 55°C, making it versatile for diverse industrial environments. The tester includes alarms and pass/fail indicators to streamline testing processes and comes supplied with a carrying bag for hands-free use. Included accessories feature elbowed-straight safety leads 1.5 m long (red and black), red crocodile clip, black test probe, six AA batteries, a multilingual user manual on CD, quick start-up guide, and safety datasheet for comprehensive support.

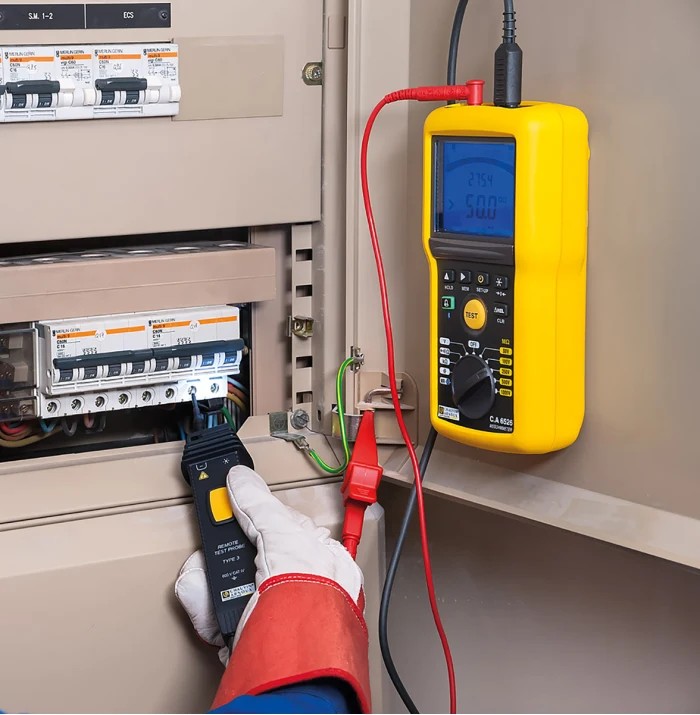

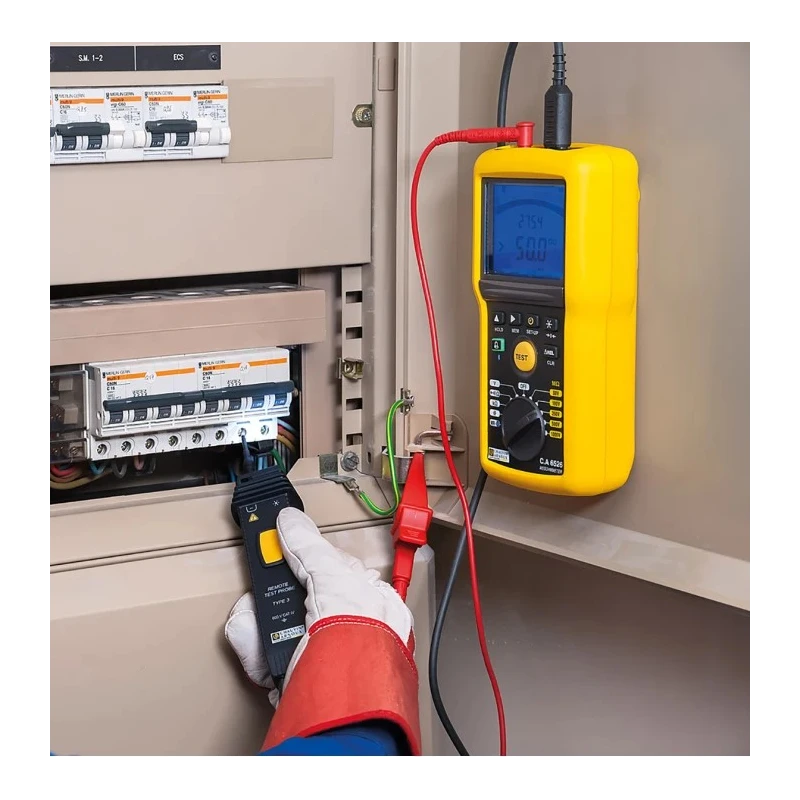

The C.A 6526 model is a reliable instrument widely used in electrical maintenance, manufacturing plants, HVAC systems, and water treatment facilities for planned periodic insulation testing, helping to prevent equipment failure by detecting insulation aging and deterioration early.

Measures insulation resistance up to 200 GΩ over programmed durations. Displays PI and DAR ratios to assess insulation quality. Features digital display with 2 x 4000 counts and logarithmic bar graph. Compact design measuring 211 x 108 x 60 mm and weighs 850 g for portability.

Provides safety category CAT IV at 600 V for industrial environments. Operates in temperatures from -20°C to 55°C with IP54 protection. Includes alarms and pass/fail indicator light for user convenience. Powered by six AA batteries for reliable field use.

Comes with carrying bag, safety leads, crocodile clip, test probe, batteries, and manuals. Ideal for industrial maintenance and planned periodic insulation testing. Explore Chauvin Arnoux Insulation Tester range and other electrical test measurement instruments at EnvMart for reliable industrial and laboratory applications.
