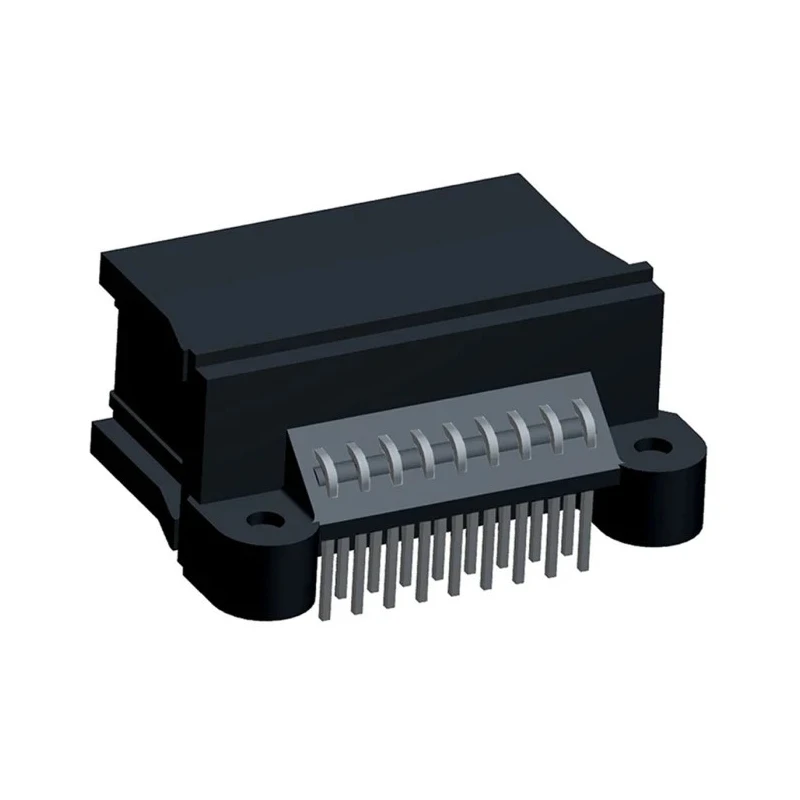

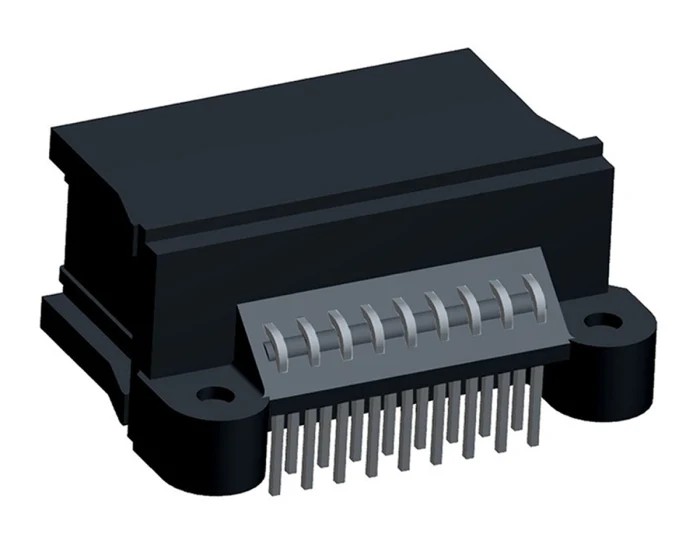

TE Connectivity Micro Quadlok System Automotive Connector Male Black Through Hole 18 Way Solder Termination 1-963539-1
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 17mm |
| Depth | 38.08mm |
| Width | 27.9mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Tin |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 130°C |
| Sub Type | Header |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 18 |
Key Features
- Designed for automotive applications with 18 contacts for reliable connections.
- Constructed with black polybutylene terephthalate housing for durability.
- Features 2 rows and through hole mount type for secure PCB integration.
- Operates effectively between -40°C and 130°C for extreme conditions.
- Solder termination ensures strong and lasting electrical contact.
- Contacts and plating are made of tin for corrosion resistance.
- Connector series is Micro Quadlok System with 2.54mm pitch.
Product Description
TE Connectivity 1-963539-1 Micro Quadlok System Automotive Connector male black through hole with 18 contacts and solder termination is engineered for reliable automotive electrical connections. This header connector features a black polybutylene terephthalate housing, ensuring robustness and electrical insulation in demanding environments.
It is designed with 2 rows of contacts and a 2.54mm pitch from the Micro Quadlok System series, facilitating easy integration on printed circuit boards via through hole mounting. The connector operates efficiently within a temperature range of -40°C to 130°C, making it suitable for both cold and hot automotive conditions.
Contact materials and plating are tin, providing corrosion resistance and consistent conductivity. The connector's compact form factor, measuring 27.9mm wide, 17mm high, and 38.08mm deep, allows for space-saving designs in automotive electrical systems.
This connector is RoHS compliant and manufactured in Germany, reflecting high-quality standards and environmental safety compliance. Designed for automotive applications with 18 contacts for reliable connections. Constructed with black polybutylene terephthalate housing for durability.
Features 2 rows and through hole mount type for secure PCB integration. Operates effectively between -40°C and 130°C for extreme conditions. Solder termination ensures strong and lasting electrical contact. Contacts and plating are made of tin for corrosion resistance.
Connector series is Micro Quadlok System with 2.54mm pitch. Compact dimensions: 27.9mm width, 17mm height, and 38.08mm depth.
This automotive connector is well suited for industrial, automotive manufacturing, electrical control, and other demanding environments requiring robust and reliable electrical connectors. Explore EnvMart for more connectors and automotive electrical components.
Explore more products in our Automotive Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 130°C.
The minimum operating temperature for this model is -40°C.
This automotive connector features 18 contacts.
The housing of this connector is made from black polybutylene terephthalate.
This model uses solder termination for strong electrical contact.
The connector measures 27.9mm in width, 17mm in height, and 38.08mm in depth.
Yes, this connector is RoHS compliant, reflecting environmental safety standards.
The contacts in this connector have a pitch of 2.54mm.
This connector features a through hole mount type for secure PCB integration.
The contacts and plating are made of tin, providing corrosion resistance.
This connector has 2 rows of contacts.
This connector is manufactured in Germany.
