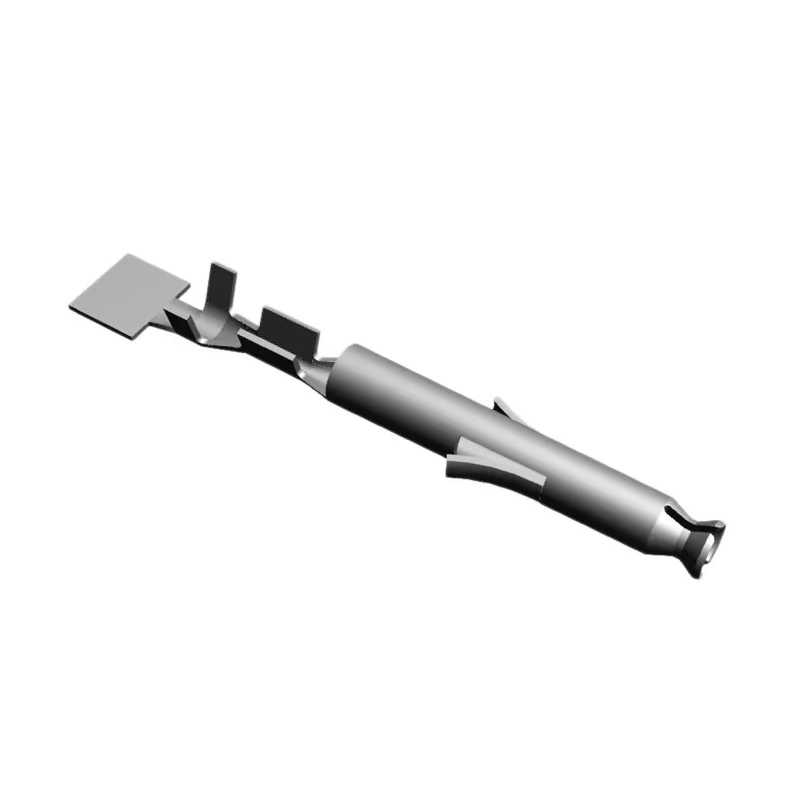

TE Connectivity Mini-Universal MATE-N-LOK Series Female Crimp Terminal 11.2A Current 30-26 AWG 770834-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 11.2A |
| Length | 16.74mm |
| Model | 770834-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | Mini-Universal MATE-N-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 0.1mm² |
| Minimum Wire Size AWG | 30AWG |
| Maximum Wire Size AWG | 26AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed from brass with tin plating for reliable conductivity.
- Suitable for Mini-Universal MATE-N-LOK connector housings.
- Features crimp termination for secure wire connections.
- Operates within a temperature range of -55°C to 105°C.
- Has a maximum contact resistance of 10 milliohms.
- Compact length of 16.74 mm for space-constrained applications.
- Ideal for industrial, electronic, and electrical equipment assembly.
Product Description
TE Connectivity 770834-1 Mini-Universal MATE-N-LOK Series female crimp terminal is a precision-engineered electrical connector component rated for 11.2A current and designed for use with Mini-Universal MATE-N-LOK connector housings. It supports wire sizes ranging from 30 AWG (0.05 mm²) to 26 AWG (0.1 mm²), making it highly versatile for fine wire applications.
Manufactured from high-quality brass and plated with tin, this crimp terminal ensures excellent conductivity and resistance to corrosion. The crimp termination type provides a secure and reliable connection ideal for various industrial and electronic applications.
Operating temperatures range from -55°C to 105°C, allowing deployment in environments with varying thermal conditions without compromising performance. The maximum contact resistance is rated at 10 milliohms, supporting efficient electrical conduction.
The terminal measures 16.74 mm in length, offering compact size suitable for tight installation spaces commonly encountered in PCB connectors and wire housings. This product complies with standard electrical and industrial connector requirements but does not carry additional certifications.
Applications include power connectors in electronic assemblies, industrial machinery, and telecommunications equipment where dependable wire-to-wire connections are critical. Constructed from brass with tin plating for reliable conductivity.
Suitable for Mini-Universal MATE-N-LOK connector housings. Features crimp termination for secure wire connections. Operates within a temperature range of -55°C to 105°C. Has a maximum contact resistance of 10 milliohms. Compact length of 16.74 mm for space-constrained applications.
Ideal for industrial, electronic, and electrical equipment assembly. Explore a broad selection of connectors and electronic components in the Connectors category at EnvMart for your industrial and electronic design needs.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated for a maximum current of 11.2A.
It supports wire sizes ranging from 30 AWG (0.05 mm²) to 26 AWG (0.1 mm²).
The maximum operating temperature is 105°C.
The minimum operating temperature is -55°C.
It is constructed from brass with tin plating for reliable conductivity.
The maximum contact resistance is rated at 10 milliohms.
It measures 16.74 mm in length, making it suitable for space-constrained applications.
This model features crimp termination for secure wire connections.
It is designed for use with Mini-Universal MATE-N-LOK connector housings.
It is suitable for power connectors in electronic assemblies, industrial machinery, and telecommunications equipment.
The country of origin for this terminal is India.
This terminal belongs to the Mini-Universal MATE-N-LOK series.
