Infineon NOR 512 MB SPI Flash Memory 24-Pin BGA S26HL512TFPBHI000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 950μm |
| Length | 8mm |
| Cell Type | NOR |
| Model | S26HL512TFPBHI000 |
| Width | 6mm |
| Mount Type | Surface |
| Series | Semper |
| Maximum Operating Temperature | 85°C |
| Certificates | ISO 26262 ASIL B Compliant |
| Package Type | BGA |
| Minimum Operating Temperature | -40°C |
| Memory size | 512MB |
| Interface Type | SPI |
| Pin Count | 24 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 75mA |
| Maximum Clock Frequency | 166MHz |
| Organisation | 64M x 8 Bit |
| Number of Bits per Word | 8 |
| Timing Type | Synchronous |
| EnduraFlex™ Architecture | Partition memory to provide up to 25-years data retention and 1+ million program/erase cycles endurance |
Key Features
- 512 MB memory size supports extensive data storage requirements.
- Operates with SPI interface for synchronous communication.
- Compact 24-pin BGA package suitable for surface mounting.
- Maximum clock frequency up to 166 MHz enabling fast data access.
- EnduraFlex™ Architecture ensures 25-year data retention and high endurance.
- Certified ISO 26262 ASIL B compliant, ensuring functional safety.
- Automotive standard AEC-Q100 qualified for high reliability.
- Operating temperature range from -40°C to 85°C for harsh environments.
Product Description

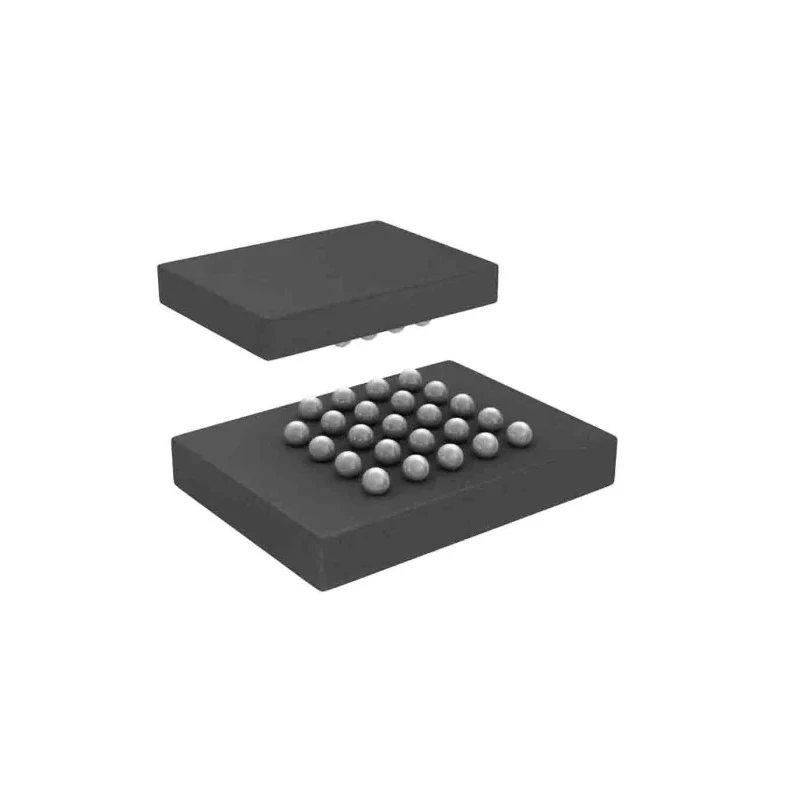

Infineon S26HL512TFPBHI000 NOR Flash Memory is a high-performance 512 MB memory chip featuring a 24-pin Ball Grid Array (BGA) package designed specifically for automotive and industrial semiconductor applications.
This flash memory utilizes a Serial Peripheral Interface (SPI) with synchronous timing and supports a maximum clock frequency of 166 MHz, providing fast and reliable data storage and retrieval. The chip operates within a supply voltage range of 2.7V to 3V and consumes a supply current of 75 mA, making it energy efficient for embedded systems.
The device employs EnduraFlex™ Architecture, allowing partitioning of memory to enable data retention for up to 25 years along with over one million program/erase cycles, which ensures long-term reliability in demanding conditions.
Compliance with ISO 26262 ASIL B certification and readiness for ISO 26262 ASIL-D, combined with the automotive-grade AEC-Q100 qualification, certifies this flash memory for use in safety-critical automotive instrument clusters, advanced driver assistance systems (ADAS), and industrial networking applications.
The chip supports single error correction double error detection (SECDED), SafeBoot capabilities, and data integrity checks through interface CRC, making it well suited for applications requiring enhanced safety and data integrity.
With compact dimensions (8 mm length x 6 mm width x 950 μm height) and surface mount technology compatibility, this memory chip fits seamlessly into modern PCBs for automotive and industrial environments.
Typical industrial use includes automotive instrument clusters, ADAS systems, and industrial communication networks, where durability and safety standards are paramount. 512 MB memory size supports extensive data storage requirements.
Operates with SPI interface for synchronous communication. Compact 24-pin BGA package suitable for surface mounting. Maximum clock frequency up to 166 MHz enabling fast data access. Voltage range from 2.7V to 3V for stable operation.
EnduraFlex™ Architecture ensures 25-year data retention and high endurance. Certified ISO 26262 ASIL B compliant, ensuring functional safety. Automotive standard AEC-Q100 qualified for high reliability. Operating temperature range from -40°C to 85°C for harsh environments.
Low supply current of 75 mA for efficient power usage. Explore more in the Semiconductor and Flash Memory categories on EnvMart for related automotive and industrial grade memory solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 166 MHz, enabling fast data access.
This flash memory has a memory size of 512 MB, supporting extensive data storage requirements.
It operates with a Serial Peripheral Interface (SPI) for synchronous communication.
The dimensions of the package are 8 mm in length, 6 mm in width, and 950 μm in height.
The operating temperature range is from -40°C to 85°C, suitable for harsh environments.
The supply voltage range is from 2.7V to 3V, ensuring stable operation.
It can endure over one million program/erase cycles, providing high endurance.
Yes, it is certified ISO 26262 ASIL B compliant, ensuring functional safety.
It is qualified under the automotive standard AEC-Q100, indicating high reliability.
The supply current is 75 mA, making it energy efficient for embedded systems.
It employs EnduraFlex™ Architecture, allowing for up to 25 years of data retention.
This model is suitable for automotive instrument clusters, advanced driver assistance systems (ADAS), and industrial communication networks.
