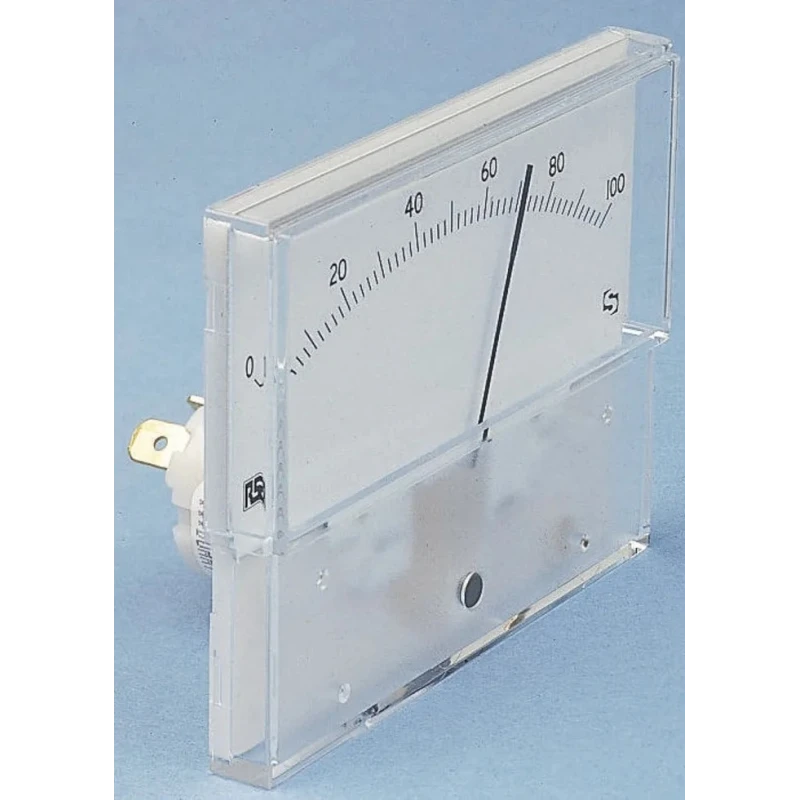

Sifam Tinsley Analogue Panel Ammeter 25 A AC/DC, 20.2 mm x 42.4 mm, ±2.5 % Moving Coil IS 10995

Sifam Tinsley IS 10995 is an Analogue Panel Ammeter designed for precise 25 A AC/DC current measurement applications. Featuring a moving coil element with an accuracy of ±2.5 %, this instrument ensures dependable and accurate readings for various industrial process control tasks.

The ammeter has compact installation dimensions with a panel cutout height of 20.2 mm and width of 42.4 mm and a depth of 31.2 mm. Its operating temperature range spans from -25°C to +55°C, making it suitable for demanding environments.

This model conforms to widely recognized standards including BS89, ANSI C39.1, IEC 51, EN60051, and BS3693, ensuring compatibility and safety in industrial automation and control gear setups. It is capable of measuring maximum voltages of up to 500 V.

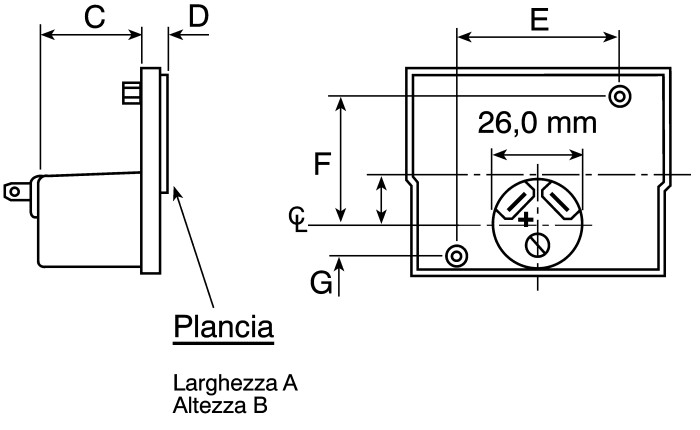

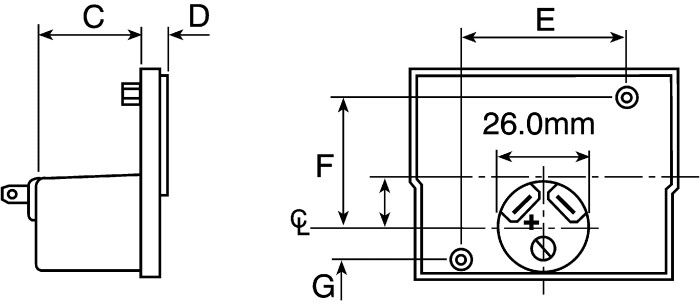

The fixing stud sizes are M2 x 10.0 mm for the 43.9 x 37.9 mm cut-out and M2.5 x 10.0 mm for other panel sizes, facilitating secure and versatile installation. The moving coil mechanism provides stability and precision in measuring AC and DC currents.

Originating from the United Kingdom, the Sifam Tinsley IS 10995 ammeter is ideal for use in industrial, laboratory, manufacturing, electrical automation, and process control applications where accurate current measurement is critical.

Suitable for AC/DC current measurement with moving coil mechanism. Compact cutout dimensions of 20.2 mm height and 42.4 mm width. Reliable meter accuracy of ±2.5 % ensures precise readings. Operates efficiently between temperatures -25°C to +55°C.

Maximum ampere rating of 25 A for varied industrial electrical control needs. Complies with international standards: BS89, ANSI C39.1, IEC 51, EN60051, and BS3693. Sturdy fixing studs with metric sizes for easy panel installation.

Maximum measurement voltage of 500 V supports higher voltage applications. Manufactured in the United Kingdom with quality assurance. Explore similar Analogue Panel Ammeters and electrical control gear products on EnvMart for reliable industrial automation solutions.
