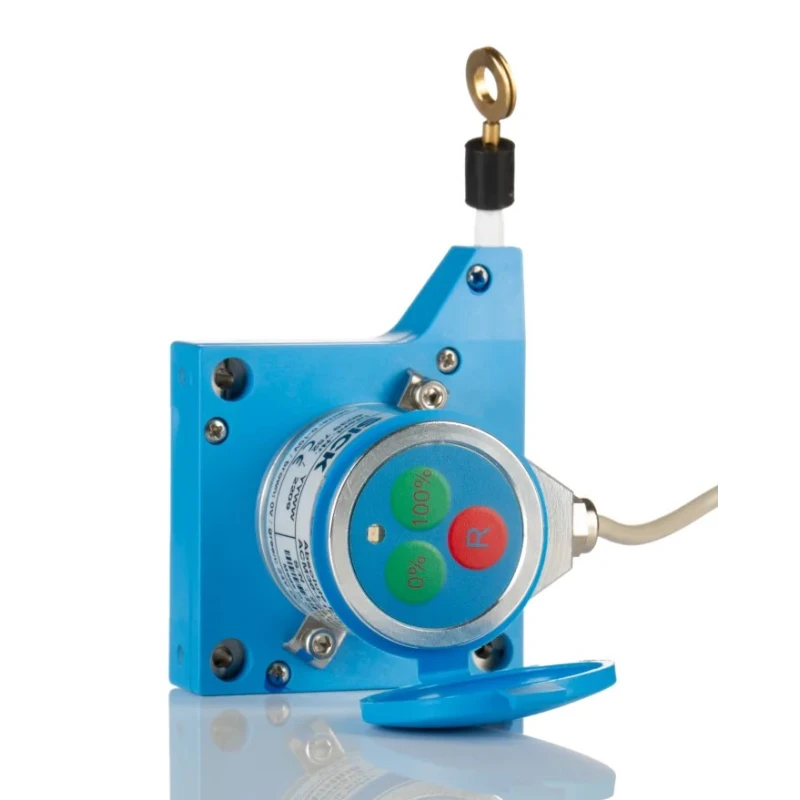

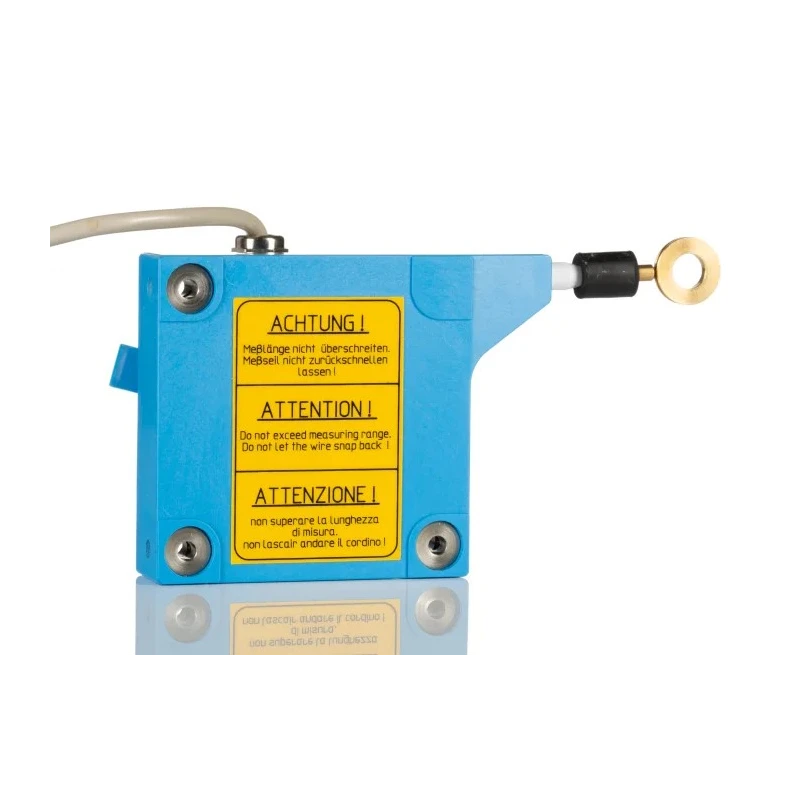

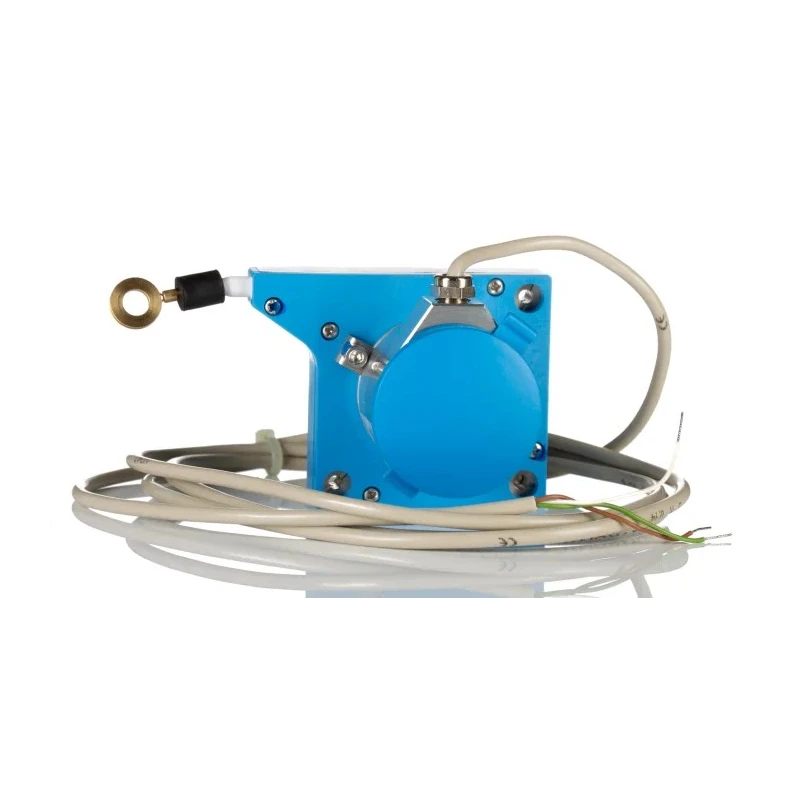

SICK ECOline Series Absolute Draw Wire Encoder 33V Voltage Signal BCG05-L1KM01PP / 6039746

SICK BCG05-L1KM01PP / 6039746 is an absolute draw wire encoder from the ECOline series that operates with a supply voltage up to 33V and provides an analog voltage output signal. Designed with precision and reliability, it is ideal for industrial and automation applications requiring exact linear position measurement.

The encoder features a modular measuring system capable of accommodating various interface options and measuring lengths ranging from 1.25 meters to 10 meters, making it adaptable to numerous installation requirements. Its slim and compact housing, measuring between 55 mm and 190 mm in length, incorporates a spring integrated within the drum for consistent tension and accurate wire retraction.

Constructed with a lightweight yet robust plastic housing, the device withstands shocks and operates reliably across a wide temperature range from -30°C to 70°C. The built-in protective nozzle prevents damage caused by vibration, extending the longevity of the measuring wire. The device carries an IP50 ingress protection rating suitable for general industrial environments.

The analog interface includes an intuitive teach-in function, allowing simplified commissioning and configuration. This encoder is designed for a diverse range of applications including measuring height and tilt of automated guided vehicles, warehouse systems height measurement, medical equipment positioning such as operating tables and MRI machines, vertical load positioning, and more.

Examples of practical industrial uses include monitoring fork lift heights, positioning on mobile cranes, aerial ladder height control on rescue trucks, and safe transport with automated guided vehicles (AGVs). Its German manufacture guarantees adherence to stringent quality standards.

Modular measuring system supports diverse interfaces and length options. Compact slim housing with integrated spring in measurement drum. Durable, shock-proof, temperature-resistant plastic housing. Analog interface with teach-in function facilitates easy setup.

Protective nozzle guards measuring wire from vibration damage. Wide operating temperature range of -30°C to 70°C. IP50 ingress protection rating for industrial use. Suitable for heights and positioning measurement in multiple sectors.

Manufactured in Germany ensuring high quality and reliability. Explore more products from the Electronics & Electricals category at EnvMart, including precision sensors and industrial encoders.
