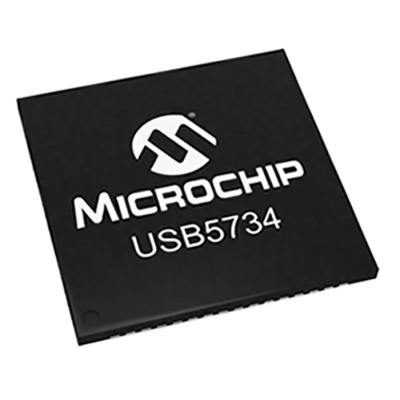

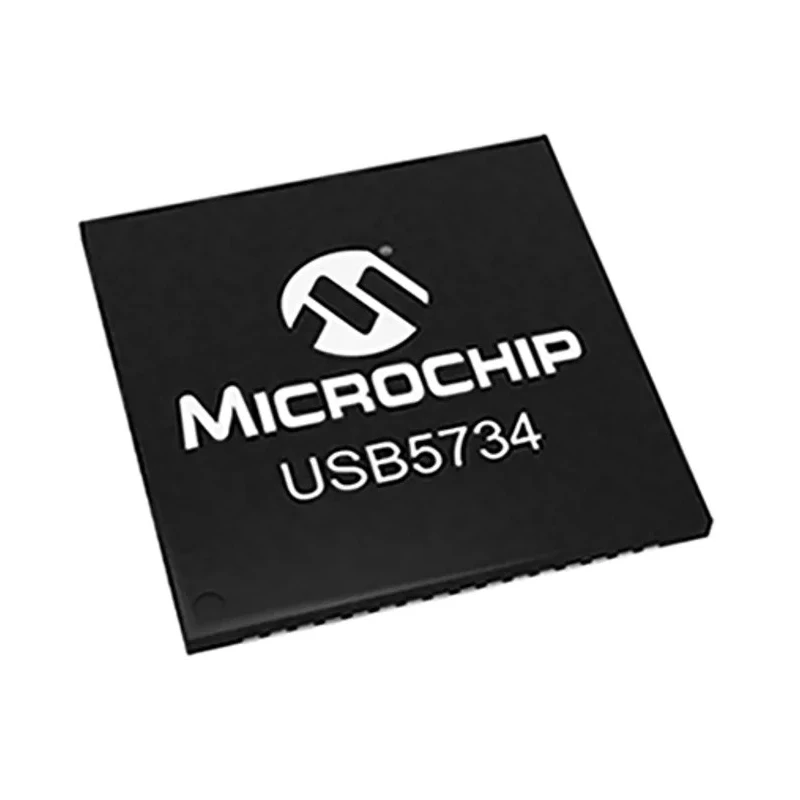

Microchip Controller IC USB 3.0, 1-Channel 5 Gbps, 3.6V, 1.2V, 64-Pin SQFN USB5734-I/MR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 9mm |
| Model | USB5734-I/MR |
| Mount Type | Surface |
| Series | USB5734 |
| Maximum Operating Temperature | 85°C |
| Package Type | SQFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB 3 |
| Battery Charging | USB-IF revision 1.2 support on downstream ports (DCP, CDP, SDP) |
| Pin Count | 64 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.2V |
| Maximum Data Rate | 5Gbps |
| Number of Transceivers | 1 |
| USB Specification | USB 2.0 |
| Supported Protocols | USB 3.0 |
| Dual Supply Voltage | 3.3V |
| I/O Bridging | Host communication to external peripherals - USB to I2C/UART/SPI/GPIO |
| FlexConnect | Host port swapping and switching to downstream devices |
| Port Configuration Straps | Predefined configuration of port settings - Battery Charging, Non-Removable, Disable |
| Application Straps | Predefined configuration of GPIOs for specific Use Cases including Mixed Mode, FlexConnect Mode, Port Speed mode, Port BC Mode and UART Mode |
Key Features
- This controller IC supports the USB 3.0 standard with backward compatibility to USB 2.0 protocols.
- It features integrated USB 3.0 hub controller functions with up to four downstream USB 3.0/2.0 ports.
- The device supports host communication to external peripherals via USB to I2C, UART, SPI, and GPIO interfaces.
- Battery charging is compliant with USB-IF revision 1.2 for downstream ports, supporting DCP, CDP, and SDP charging protocols.
- The surface-mounted SQFN package has 64 pins, providing a compact 9mm length and 1mm height form factor.
- Operating temperature ranges from -40°C to 85°C, making it suitable for industrial and commercial applications.
- The integrated FlexConnect feature enables host port swapping and downstream device switching.
Product Description
Microchip USB5734-I/MR is a high-performance controller IC designed for USB 3.0 applications, delivering a maximum data rate of 5 Gbps using a single channel. It operates with dual supply voltages of 3.6V and 1.2V and is housed in a compact 64-pin SQFN surface mount package measuring 9 mm by 1 mm.
This device integrates USB 2.0 and USB 3.0 protocol support, facilitating efficient data traffic separation to prevent bottlenecks caused by slower USB 2.0 data streams. Its integrated hub controller offers four downstream USB 3.0/2.0 ports with simultaneous high-speed data transfer and battery charging capabilities compliant with USB-IF 1.2 standards.
The USB5734-I/MR supports advanced features including I/O bridging, allowing host communication with peripherals via USB to I2C, UART, SPI, and GPIO interfaces. FlexConnect technology adds flexibility by enabling host port swapping and seamless switching to downstream devices, enhancing system integration options.
Designed for rugged environments, this controller IC operates reliably within a -40°C to 85°C temperature range, making it suitable for industrial, commercial, and embedded system applications. The compact SQFN package facilitates space-saving PCB designs.
Microchip USB5734-I/MR is compatible with major operating systems, including Microsoft Windows 8/8.1, and is ideal for use in computers, peripherals, and embedded systems requiring USB 3.0 connectivity and power management.
This controller supports four USB downstream ports and integrated hub functions. Provides seamless USB 2.0 and 3.0 protocol handling with smart hub features. Battery charging support includes DCP, CDP, and SDP modes for 2500 mA charging.
Compact SQFN package with 64 pins facilitates PCB design. Robust operating temperature range suited for diverse industrial environments. Explore the Electronics & Electricals category at EnvMart for more semiconductor and USB interface IC solutions.
Explore more products in our USB Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this controller IC is 5 Gbps.
It operates reliably within a temperature range of -40°C to 85°C.
This model supports dual supply voltages of 3.6V and 1.2V.
It features four downstream USB 3.0/2.0 ports.
It supports battery charging compliant with USB-IF revision 1.2, including DCP, CDP, and SDP modes.
Host communication can be achieved via USB to I2C, UART, SPI, and GPIO interfaces.
This model is housed in a 64-pin SQFN package with dimensions of 9 mm in length and 1 mm in height.
Yes, it integrates support for both USB 2.0 and USB 3.0 protocols.
The pin count for this controller IC is 64 pins.
It includes FlexConnect technology for host port swapping and switching to downstream devices, enhancing system integration.
Yes, its operating temperature range and features make it suitable for industrial and commercial applications.
The maximum operating temperature is 85°C.
