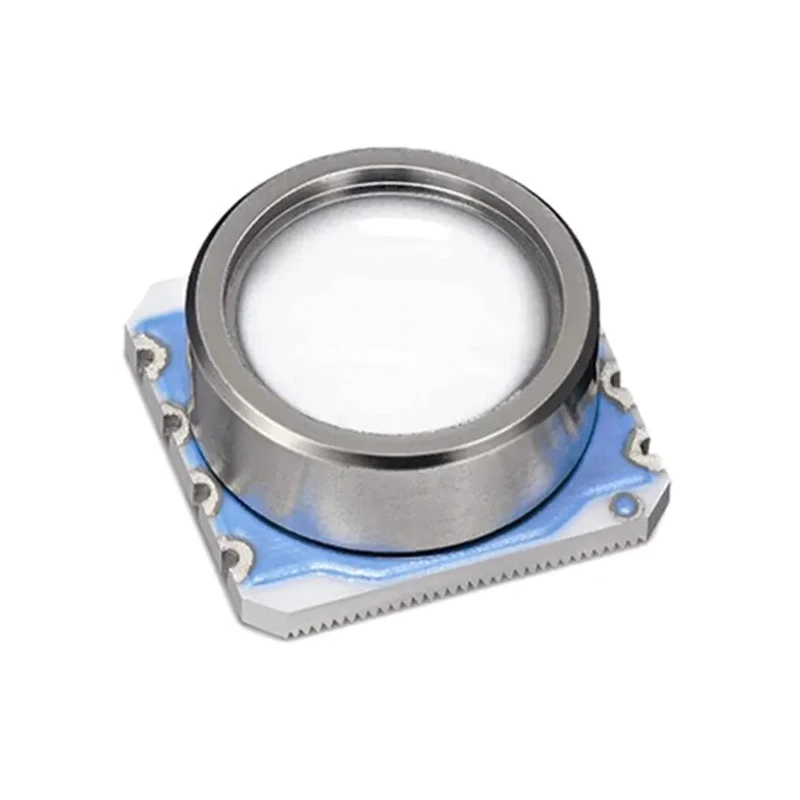

TE Connectivity Barometric Pressure Sensor Surface Mount Absolute Pressure Sensor 1.8-3.6V 5 bar ±2.5 mbar MS580305BA01-00

TE Connectivity MS580305BA01-00 is a high-performance barometric pressure sensor designed for accurate absolute pressure sensing with a maximum operating pressure of 5 bar and a maximum overload pressure of 30 bar. The sensor employs a surface mount package with 8 pins, measuring 5 mm in height, 3 mm in length, and 950 micrometers in width, facilitating compact integration into electronic assemblies.

Featuring a low power 24-bit delta-sigma ADC, internal factory calibration coefficients, and high linearity pressure sensing, this device delivers precise pressure and temperature outputs via digital interfaces such as I2C and SPI. It operates over a voltage supply range of 1.8 to 3.6 volts and performs reliably in harsh environments with operating temperature ranges spanning -40°C to 85°C.

This sensor is ideal for industrial, laboratory, measurement, and embedded applications, including variometers, altimeters, mobile pressure/depth measurement systems, dive computers, bike computers, and data loggers requiring precise pressure monitoring. Its durability is enhanced by the possibility of hermetic sealing and optional protective caps against water and electromagnetic interference, making it suitable for outdoor and rugged environments.

Key features of the MS580305BA01-00 include robust accuracy of ±2.5 mbar, no requirement for external components, and compatibility with automated microcontroller interfaces, enhancing ease of integration. This product supports a range of industrial and scientific applications where compact size and precision pressure measurement are essential.

The package contains one TE Connectivity MS580305BA01-00 Barometric Pressure Sensor with all technical documentation and RoHS certificates provided separately. Operates with supply voltage from 1.8V up to 3.6V. Measures pressure with ±2.5 mbar accuracy for reliable barometric applications.

Surface mount type with 8 pins and compact dimensions of 5mm height, 3mm length, and 950μm width. Wide operating temperature range from -40°C to 85°C for robust performance. Maximum overload pressure capacity up to 30 bar for protection against pressure spikes.

Integrated digital pressure sensor enables I2C and SPI interfacing with microcontrollers. Low power consumption design with ultra-low power 24-bit delta sigma ADC. Suitable for altimeters, variometers, dive computers, and mobile pressure measurement devices.

No external components required and hermetic sealing available for outdoor use. Explore more sensors and semiconductor products from TE Connectivity and related categories at EnvMart for industrial and commercial use.
