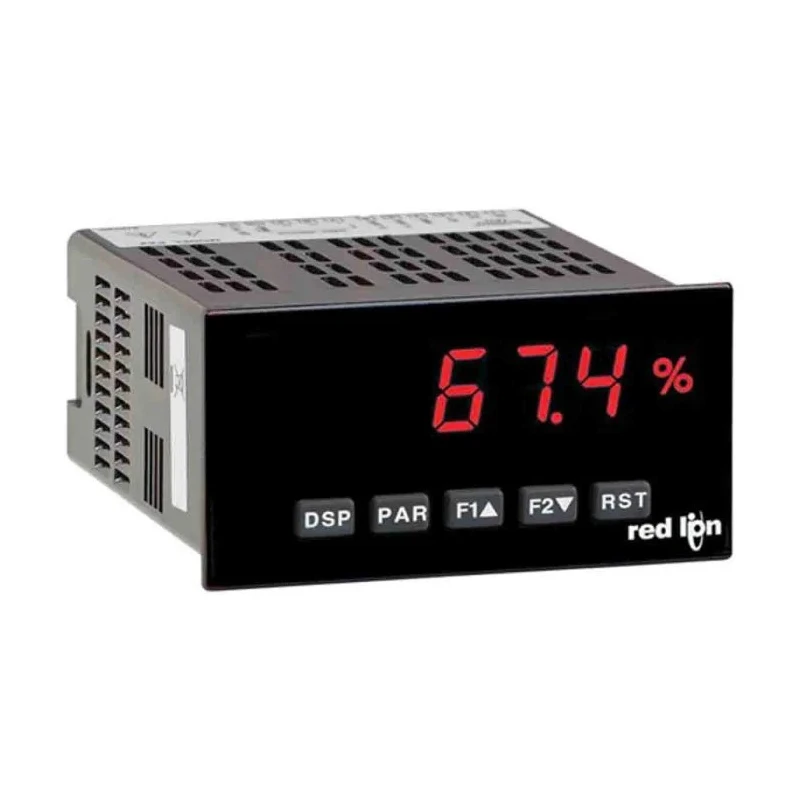

Red Lion Digital Panel Multifunction Meter for Current, Resistance, Voltage, 45 mm x 92 mm PAXD0000
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | LED |
| Brand | Red Lion |
| Model | PAXD0000 |
| Depth | 104.1mm |
| Series | PAX |
| Maximum Operating Temperature | 50°C |
| Meter Type | Electronic |
| Number Of Digits | 5 |
| Minimum Operating Temperature | 0°C |
| Digit height | 14.2mm |
| Standards/Approvals | CE, RoHS |
| Properties Measured | Current, Resistance, Voltage |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| Minimum Measurement | 100 O, 200 μA, 200 mV dc |
| Maximum Measurement | 300 V |
| Red Lion DSP5D LED Digital Panel Multi-Function Meter, 45mm x 92mmBrand | Red Lion |
Key Features
- Equipped with a 5-digit, 14.2 mm high red LED display for clear readability.
- Supports universal DC input with 4 voltage ranges up to 300 VDC max.
- Includes 5 current ranges accommodating up to 2A DC max.
- Offers 3 resistance ranges with a maximum of 10K ohm.
- Operates within a temperature range of 0°C to 50°C.
- Designed as a compact 1/8 DIN (50 mm x 97 mm) panel mount meter.
- Power supply accepts 85 to 250 VAC for flexible installation.
- Certified to CE and RoHS standards ensuring compliance and safety.
Product Description
Red Lion PAXD0000 is a Digital Panel Multifunction Meter designed to accurately measure electrical properties including current, resistance, and voltage. Featuring a sunlight-readable red LED display with 5 digits and a digit height of 14.2 mm, this meter is suitable for precise industrial and automation applications. Its compact 45 mm by 92 mm cutout size (1/8 DIN) allows easy panel mounting in control systems.
The PAXD0000 model supports universal DC input with four voltage ranges up to 300 VDC maximum and five current ranges with a maximum of 2A DC. It also offers three resistance ranges with a maximum of 10K ohm for versatile measurement capabilities. Designed for reliable operation in an industrial environment, it functions within a temperature range of 0°C to 50°C.
Power is supplied between 85 and 250 VAC, enabling flexible installation options across different sites. The unit complies with CE and RoHS standards, assuring its safety and environmental compliance. For enhanced adaptability, it includes field-upgradeable option cards allowing customized measurement extensions.
This meter is ideal for applications in electrical automation, process control, manufacturing, and laboratory instrumentation where monitoring of multiple electrical parameters is required. Manufactured in the United States, PAXD0000 maintains high standards of quality and durability.
5-digit, 14.2 mm red LED display provides clear visibility. Universal DC input supports 4 voltage ranges up to 300 VDC max. Five current ranges with capacity up to 2A DC max. Three selectable resistance ranges up to 10K ohm max.
Operational temperature range from 0°C to 50°C for industrial use. Compact 1/8 DIN (50 mm x 97 mm) form factor for panel mounting. 85 to 250 VAC input power supply supports various installations. Compliant with CE and RoHS standards ensuring safety and environmental care.
Field-upgradeable option cards to extend measurement functions. Manufactured in the United States guaranteeing quality assurance. Explore more precise industrial automation instruments and digital panel meters at EnvMart to support your control and monitoring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The meter supports four voltage ranges with a maximum of 300 VDC.
It can measure current, resistance, and voltage.
The maximum current measurement capacity is 2A DC.
It offers three resistance ranges with a maximum of 10K ohm.
The operating temperature range is from 0°C to 50°C.
It features a 5-digit LED display with a digit height of 14.2 mm for clear visibility.
The cutout dimensions required are 45 mm in height and 92 mm in width.
It accepts a power supply voltage range of 85 to 250 VAC.
Yes, it is certified to CE and RoHS standards, ensuring compliance and safety.
The product is manufactured in the United States.
Yes, it includes field-upgradeable option cards to extend measurement functions.
The series name of this meter is PAX.
