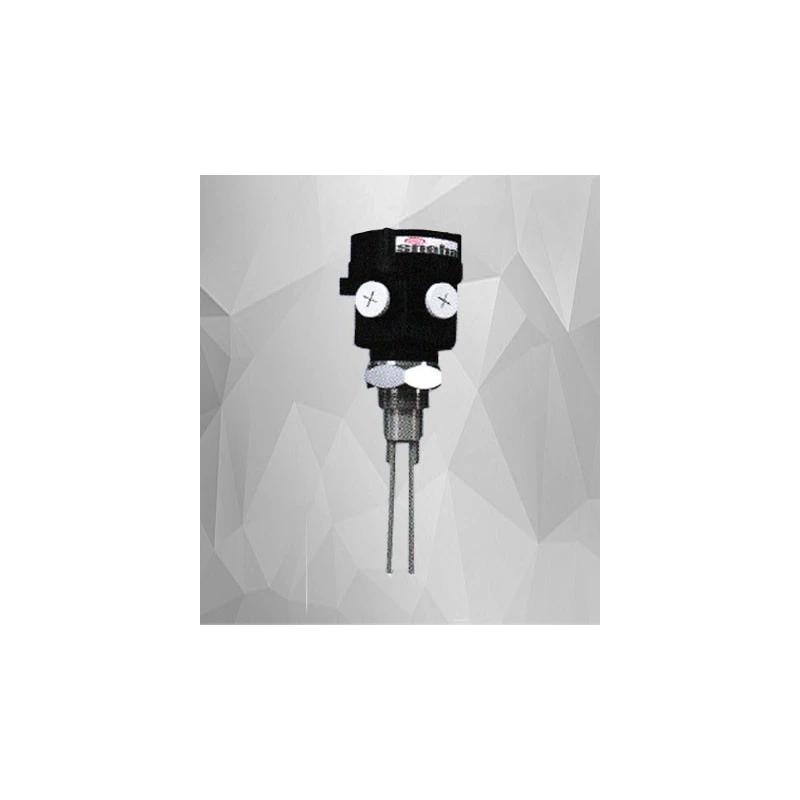

Solitune Level Transmitter 90 to 265 V

Name: Solitune Level Transmitter 90 to 265 V
Brand: ESPL
SKU: AADYR
Price: 55.95 USD
Availability: InStock



SKU AADYR Category Level Transmitter Brand ESPL Condition New

Specifications

Power Consumption	3 VA Max.
Output	SPDT / DPDT relay / open collector PNP / NPN
Power Supply	90 to 265 V AC 50 to 60 Hz and 18 to 55 V DC
Type	Electronics integral with probe
Relay output	Potential free change over contacts rated at 6A 230 V AC 50 Hz
SENSITIVITY	Field selectable for Low and High density Material
Indication	By LEDs\| Yellow for status\| Blue for Normal\| and Red for Alarm
Housing	Cast Aluminium IP68
Cable entry	1/2 BSP / NPT
Switching delay	Adjustable up to 25 sec. for fork covered or uncovered condition
Cable gland	Single compression PG13.5
Mounting arrangement	1 / 1 1/4 / 1 1/2 BSP / NPT Flanged as per requirement
Mounting / Pipe extension M.O.C.	MS / GI / SS304 / SS316 as per requirement
Failsafe condition	High / Low field selectable.
Tuning Fork	SS316 / SS304
Open collector transistor	PNP output as standard\| NPN on request\| current limited to 100ma
Resonant frequency of fork	350 Hz approx. for 100 mm fork

Key Features

Compact size with integral electronics
No calibration required so plug and play
No moving parts so no wear and tear
Universal Power supply for AC / DC operation
Relay or open collector PNP outputs available
Short fork design (100mm) for minimum insertion in small vessels

Product Description

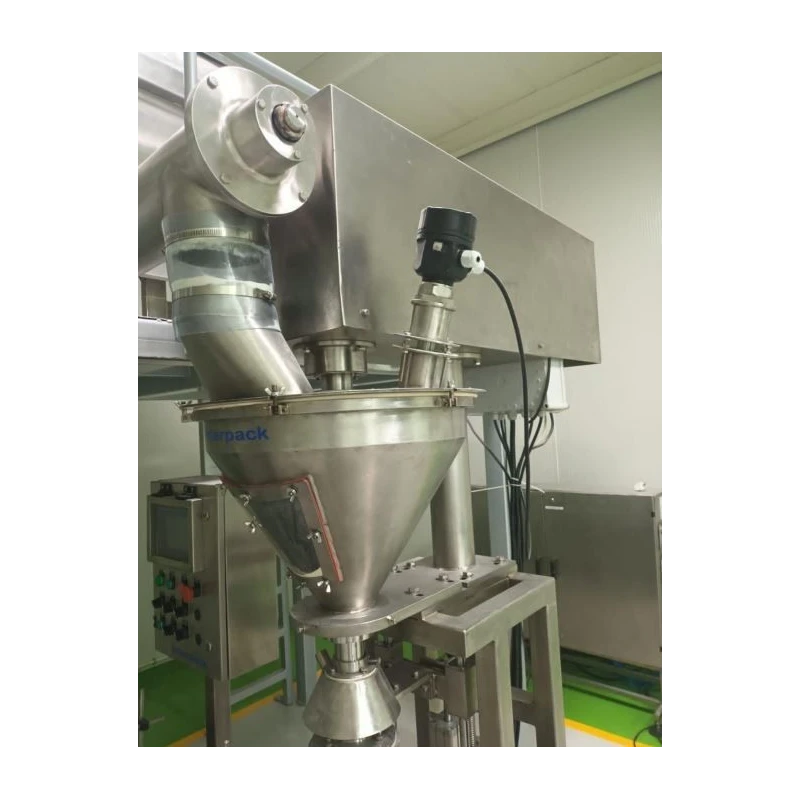

SOLITUNE is specially designed for detecting maximum and minimum level in vessels filled with free flowing fine-grained or powdery material. SOLITUNE can be used for detecting the level of service material having grain size less than 10mm. Variation of electrical parameters of the service material such as conductivity and dielectric constant do not affect its operation. It can be used successfully for level detection of powders and granules of plastic, silica, sand, cement, chalk, pulverized coal, PET, Food grains, minerals, animal feed, Sugar & wood chips etc.

Available in 1 inch and above screwed mounting standards
IP 68 ingress protection
Selectable fail safe mode
LED indicators for status, alarm and normal operation
Density setting and switching delay selectable

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It operates with a power supply range of 90 to 265 V AC at 50 to 60 Hz and 18 to 55 V DC.

It is designed to detect levels in vessels filled with free-flowing fine-grained or powdery materials, such as plastic, silica, sand, cement, and food grains.

The sensitivity is field selectable for low and high density materials.

The housing is made of cast aluminium and has an IP68 ingress protection rating.

The maximum power consumption is 3 VA.

The resonant frequency of the fork is approximately 350 Hz for the 100 mm fork.

The switching delay is adjustable up to 25 seconds for conditions where the fork is covered or uncovered.

It can be mounted using 1, 1 1/4, or 1 1/2 BSP/NPT flanged arrangements as per requirement.

It features a 1/2 BSP or NPT cable entry.

LEDs indicate status with yellow for status, blue for normal operation, and red for alarm conditions.

The mounting/pipe extension can be made from MS, GI, SS304, or SS316 as per requirement.
