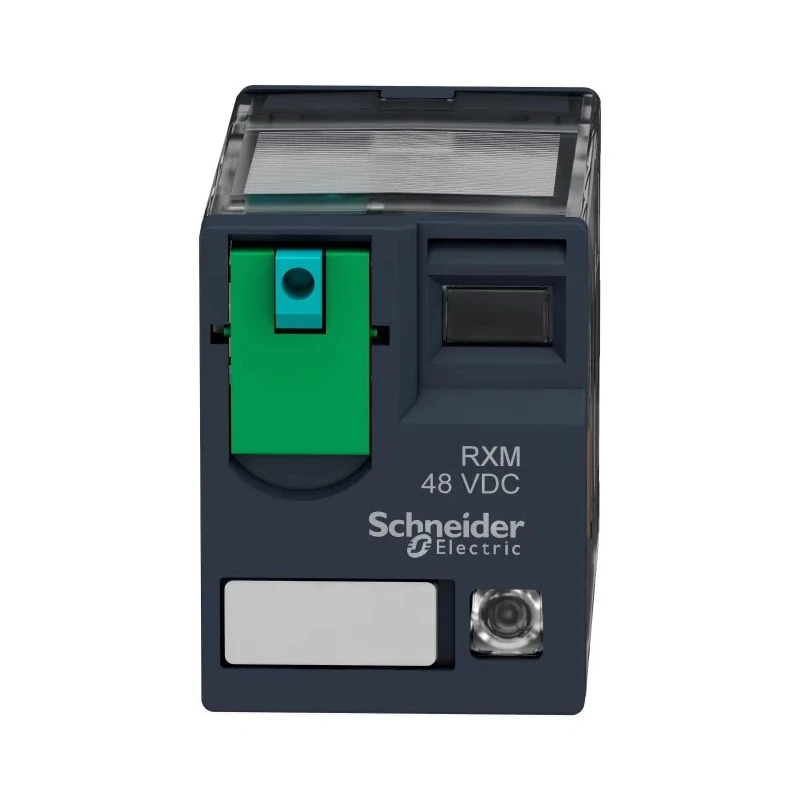

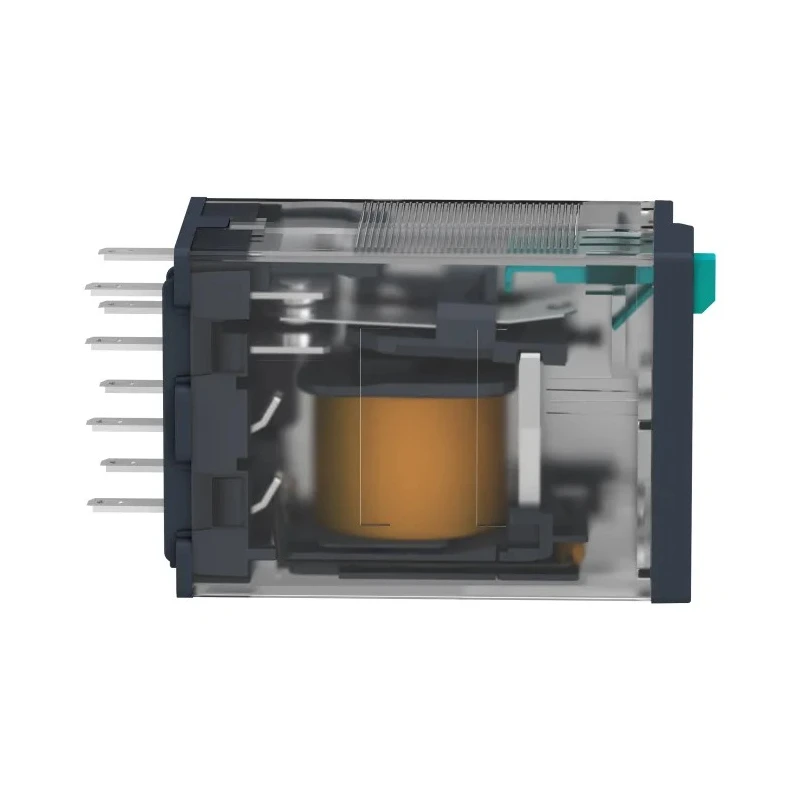

Schneider Electric Power Relay, 48V dc Coil, 12A Switching Current, DPDT RXM2AB2ED
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM2AB2ED |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Plug-In |
| Standards/Approvals | CE, CSA |
| Coil Resistance | 2.6kΩ |
| Coil Voltage | 48V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 900mW |
Key Features
- Equipped with a robust silver alloy contact material for durability.
- Compact dimensions measuring 47.7mm width, 27mm height, and 21mm length.
- Designed for industrial and HVAC applications requiring reliable switching performance.
- Operates efficiently within -40°C to 55°C temperature range.
- Features plug-in terminal type for easy installation and integration.
- Coil resistance is 2.6kΩ with coil power consumption of 900mW.
- Complies with CE and CSA standards for quality assurance.
- Switching AC voltage up to 250V AC and switching power of 3kVA.
Product Description
Schneider Electric RXM2AB2ED Power Relay is a miniature electromechanical relay with a 48V DC coil and 12A switching current. This DPDT (Double Pole Double Throw) relay is designed for industrial, automation, building equipment, and HVAC systems, providing reliable circuit switching and control.
The relay features compact dimensions of 47.7mm width, 27mm height, and 21mm length, making it suitable for integration in electrical enclosures where space optimization is essential. Its robust silver alloy contacts guarantee durability and consistent performance across application cycles.
Operating efficiently in harsh environments, this power relay supports ambient temperatures from -40°C to 55°C and handles switching AC voltages up to 250V AC and switching power capacities up to 3kVA. The coil resistance of 2.6kΩ with power consumption of 900mW ensures energy-efficient operation.
Installation is simplified using plug-in terminals compatible with standard bases (sold separately), allowing flexible mounting options on DIN rails or screw assemblies. The relay includes useful features such as a test button and a mechanical indicator for relay status visualization, improving ease of maintenance and diagnostics.
Certified under CE and CSA standards, this Schneider Electric Harmony RXM series relay is an ideal choice for industrial automation, manufacturing equipment, HVAC controls, and electrical panel assemblies.
Equipped with silver alloy contacts for enhanced conductivity and reliability. Non-latching operation suitable for push-button and micro-controller input applications. Compact design aids in space-saving panel layouts. High switching current rating ensures robust performance in demanding circuits.
Compliance with international standards assures quality and safety. Plug-in terminals enable quick and secure installation. Test button and mechanical indicator facilitate monitoring and troubleshooting. Wide operating temperature range supports diverse industrial environments.
This product is categorized under Power Relay, suitable for use in electronics, electrical automation, machinery equipment, and HVAC sectors. Browse EnvMart for more Schneider Electric Power Relays and related industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RXM2AB2ED power relay has a switching current rating of 12A.
This relay operates with a coil voltage of 48V DC.
The relay measures 47.7mm in width, 27mm in height, and 21mm in length.
It operates efficiently within a temperature range of -40°C to 55°C.
The RXM2AB2ED features a DPDT (Double Pole Double Throw) contact configuration.
This model can switch AC voltages up to 250V AC.
The coil resistance is 2.6kΩ.
The coil power consumption is 900mW.
The contacts are made from a robust silver alloy material.
Installation is simplified using plug-in terminals, which are compatible with standard bases.
It complies with CE and CSA standards for quality assurance.
This power relay is suitable for industrial, automation, building equipment, and HVAC systems.
