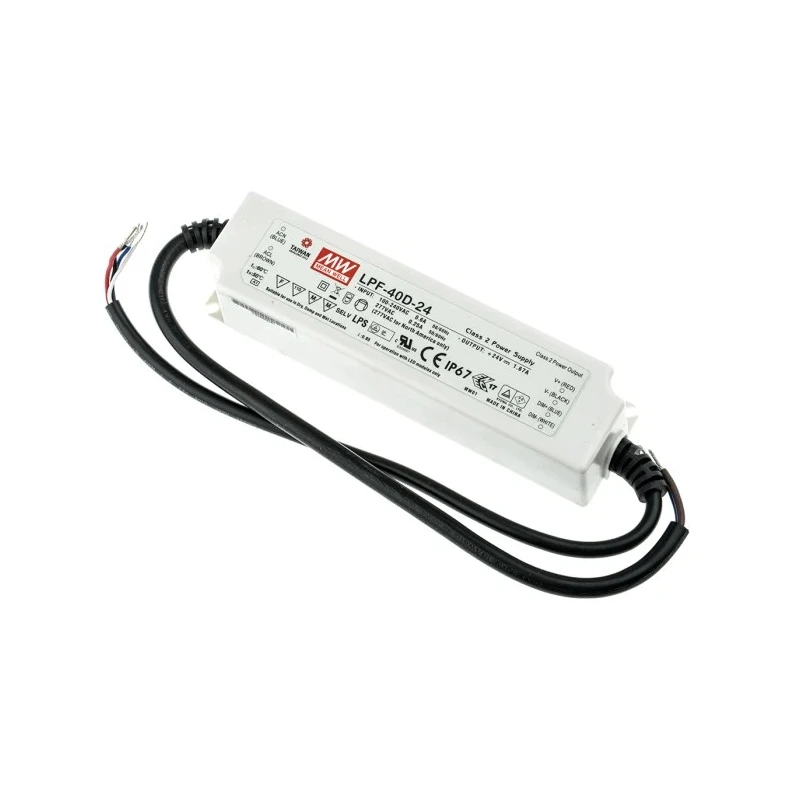

MEAN WELL 5 Output IP67 Waterproof Dimmable Constant Voltage LED Driver 24V 40.08W 1.67A
Specifications
| Country of Origin | India |
|---|---|
| Brand | MEAN WELL |
| Model | IP67 |
| IP Rating | IP67 |
| Mount Type | Screw |
| Series | LPF-40D |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Voltage |
| Number of outputs | 5 |
| Terminal type | Wire |
| Maximum Output Power | 40.08W |
| Input Voltage | 305, 90, 127, 431V ac |
| Output Voltage | 24V |
| Power Dissipation | 40.08W |
| Standards/Approvals | UL, TUV, SELV, ENEC, CSA, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 738-1656 Brand: [MEAN WELL](https://in.rsdelivers.com/brands/mean-well)Manufacturers Part No.: LPF-40D-24 Distrelec Article No.: 16996743 |
| Dimming Operation | 1 to 10 V PWM Resistance |
| Primary Type | AC-DC |
| Driver Current | 1.67A |
Key Features
- Universal AC input voltage range with 3 in 1 dimming function for flexible brightness control.
- Fully encapsulated and isolated plastic case providing IP67 waterproof rating.
- Built-in active Power Factor Correction (PFC) for high energy efficiency.
- Protection against short circuit, overload, over voltage, and over temperature ensuring reliability.
- Compliance with international safety and EMC standards including UL, TUV, ENEC, CSA, and CE.
- Suitable for industrial LED lighting and moving sign applications requiring constant voltage output.
- Wire terminal type and screw mount for secure installation.
- High efficiency up to 89% to reduce energy consumption and heat generation.
Product Description
MEAN WELL LPF-40D-24 is an IP67 rated waterproof, 5 output, dimmable LED driver designed for constant voltage LED applications.
This 40W LED driver operates on a universal AC input voltage range from 90V to 305V, featuring a 3 in 1 dimming function supporting 1 to 10 Vdc, PWM signal, or resistance dimming methods. The fully encapsulated plastic enclosure ensures complete isolation and durability in harsh environments.
The driver incorporates active Power Factor Correction (PFC) for improved energy efficiency and complies with global safety standards such as UL8750, EN61347, TUV, ENEC, and CSA certifications. It also meets EMC requirements including EN55015 and harmonic current limits per EN61000-3-2 Class C.
Short circuit, overload, overvoltage, and over temperature protections safeguard the device and connected LED loads, improving system reliability. With a high efficiency rating of up to 89%, it minimizes power loss and heat generation during operation.
Ideal for industrial lighting, outdoor LED fixtures, and moving signs, this driver supports 5 constant voltage outputs at 24V and a maximum output current of 1.67A per output.
Mounting is secured via screw type method and wiring connection is by wire terminals. The unit design supports free air convection cooling without requiring fans, enhancing quiet operation and maintenance-free use.
Universal AC input voltage range with 3 in 1 dimming function for flexible brightness control. Fully encapsulated plastic case with IP67 protection suitable for harsh environments. Built-in active Power Factor Correction (PFC) for high energy efficiency.
Short circuit, overload, over voltage, and over temperature protection for reliability. Compliance with UL, TUV, ENEC, CSA, and CE safety approvals and EMC standards. Constant voltage output ideal for LED lighting and moving sign applications.
MEAN WELL LED drivers are widely used in industrial, commercial, and outdoor lighting installations, providing efficient power supply with reliable dimming control. Browse the EnvMart catalog for more LED driver options and related components.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this model is 40.08W.
This unit provides 5 constant voltage outputs.
It supports 1 to 10 Vdc, PWM signal, or resistance dimming methods.
The output voltage is 24V.
It includes protection against short circuit, overload, over voltage, and over temperature.
The driver current is 1.67A per output.
It uses a screw mount type for secure installation.
Specific dimensions and weight are not provided in the available data.
It complies with UL, TUV, ENEC, CSA, and CE safety standards.
The country of origin for this model is India.
