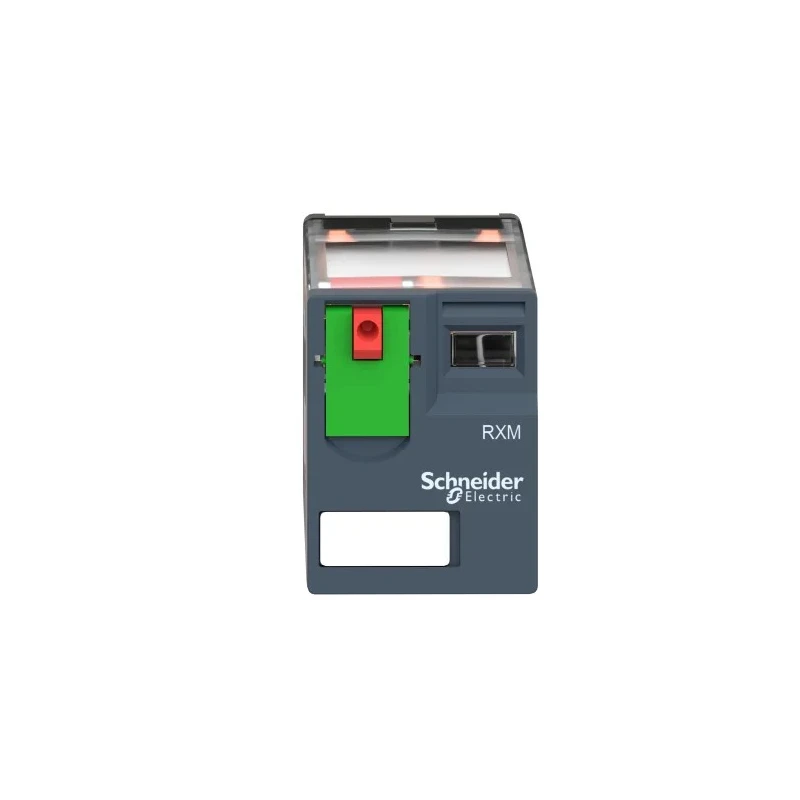

Schneider Electric Power Relay 24V AC Coil 8A Switching Current 4PDT RXM4AB1B7
Specifications
| Country of Origin | China |
|---|---|
| Brand | Schneider Electric |
| Height | 27mm |
| Length | 21mm |
| Model | RXM4AB1B7 |
| Width | 47.7mm |
| Contact Material | Silver Alloy |
| Series | Harmony Relay RXM |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | CSA, CE |
| Coil Resistance | 180Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 1.2W |
Key Features
- Operates with a 24V AC coil voltage for reliable control.
- Equipped with 4PDT contact configuration offering versatile switching options.
- Maximum switching current rating of 8A supports demanding tasks.
- Compact dimensions of 21mm length, 47.7mm width, and 27mm height save panel space.
- Designed for plug-in mounting to enable quick installation and replacement.
- Coil resistance of 180 ohms ensures efficient coil performance.
- Switching AC voltage up to 250V AC and DC voltage up to 28V DC.
- Operates reliably within a temperature range of -40°C to 55°C.
Product Description
Schneider Electric RXM4AB1B7 Power Relay features a 24V AC coil voltage and an 8A switching current capacity with a 4PDT contact configuration. It is part of the Harmony Relay RXM series, designed for robust and reliable performance in various industrial and commercial automation systems.
This plug-in relay has compact dimensions of 21mm length, 47.7mm width, and 27mm height, making it suitable for tight electrical panels and control cabinets. The coil resistance is 180 ohms, delivering efficient coil operation with only 1.2W power consumption.
It supports switching AC voltages up to 250V and DC voltages up to 28V, with a maximum switching capacity of 1500 VA for AC loads and 168 W for DC loads. The 4PDT contacts provide flexible switching configuration to control multiple circuits simultaneously, enhancing system reliability and efficiency.
Built to withstand harsh industrial environments, this relay operates in temperatures ranging from -40°C to +55°C. The silver alloy contact material ensures excellent conductivity and long service life, capable of enduring up to 100,000 operational cycles.
With compliance to CSA, CE, and RoHS certifications, this relay guarantees safety and environmental standards. Commonly used in automation machinery control, electrical panels, HVAC system power management, security system activations, and commercial lighting control circuits.
Operates with 24V AC coil voltage for stable control. 4PDT contact configuration offers multi-circuit switching capability. 8A maximum switching current supports industrial load requirements. Compact form factor allows for efficient space utilization.
Plug-in terminal type simplifies installation and maintenance. Coil resistance of 180Ω ensures low power consumption. Supports switching AC voltage up to 250V and DC voltage up to 28V. Wide operating temperature range from -40°C to +55°C ensures durability.
Silver alloy contact material enhances electrical performance and lifespan. Certified to international safety standards CSA and CE.
This power relay is ideal for use in industrial automation systems, electrical control panels, HVAC power distribution, security system activation/deactivation, and commercial building lighting control. Its robust construction and reliable operation make it an essential component for professionals seeking dependable power relay solutions.
Explore more Schneider Electric products and Power Relays for enhanced control system efficiency at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay operates with a coil voltage of 24V AC.
The maximum switching current rating for this model is 8A.
The dimensions of this relay are 21mm in length, 47.7mm in width, and 27mm in height.
It features a 4PDT (four pole double throw) contact configuration, allowing for versatile switching options.
It can switch AC voltages up to 250V and DC voltages up to 28V.
The coil resistance is 180 ohms, which contributes to efficient coil performance.
This relay operates reliably within a temperature range of -40°C to 55°C.
It utilizes a plug-in terminal type, which simplifies installation and maintenance.
This model is certified to CSA, CE, and RoHS standards, ensuring compliance with safety and environmental regulations.
The coil power consumption is 1.2W, which is efficient for its operation.
The contacts are made of silver alloy, enhancing conductivity and longevity.
It is commonly used in automation machinery control, electrical panels, HVAC systems, security systems, and commercial lighting control circuits.
