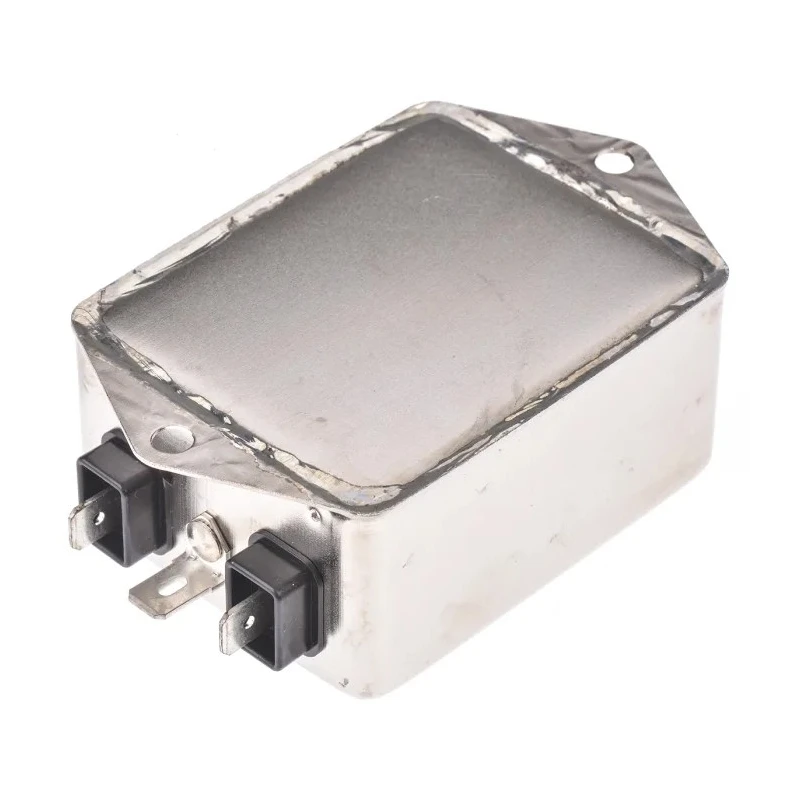

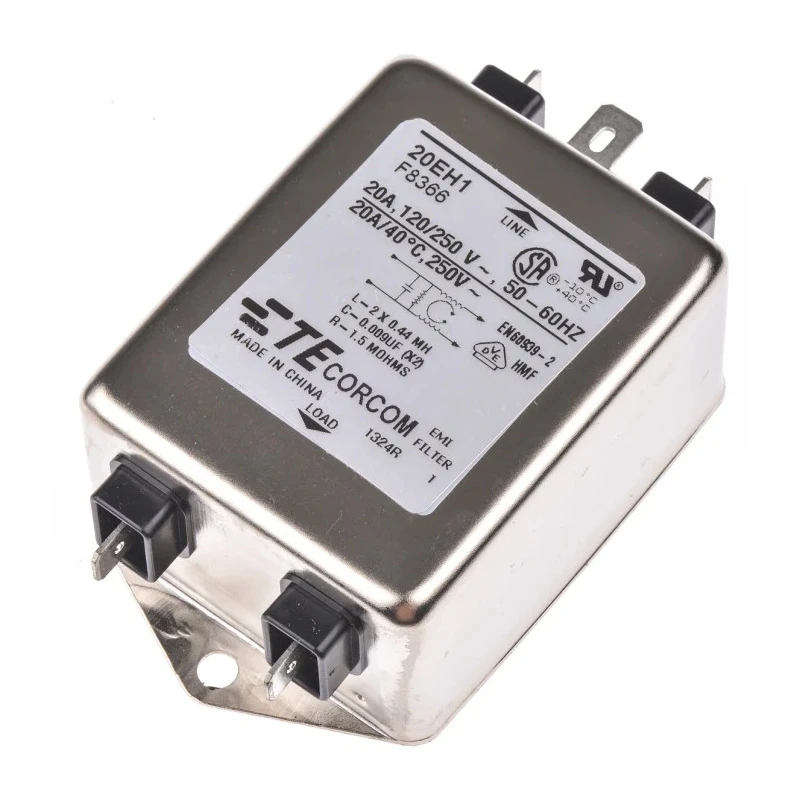

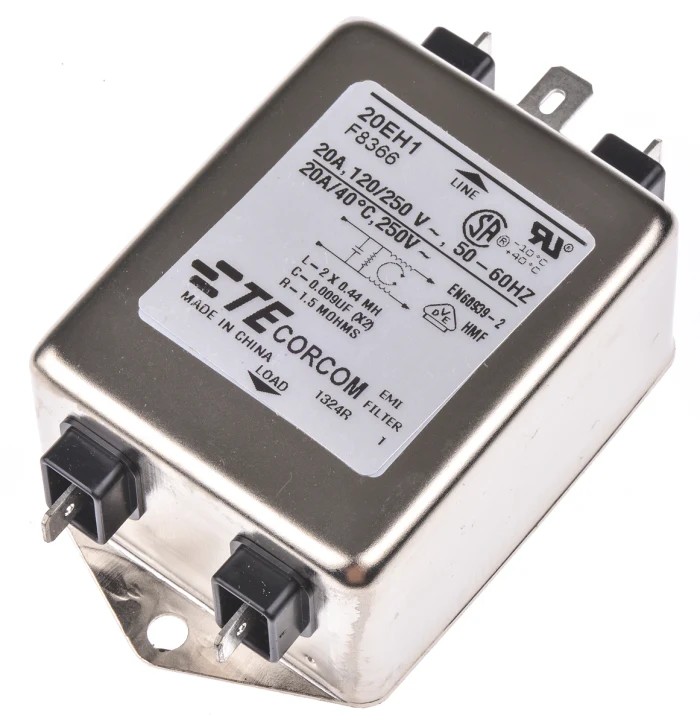

TE Connectivity Chassis Mount EMI Filter, Corcom H Series, 20A, 250V ac, 50Hz/60Hz, Spade Termination, Single 3-1609037-8

TE Connectivity 3-1609037-8 is a premium Corcom H series chassis mount EMI filter designed for high reliability in industrial and medical applications. Rated for 20A current and 250V AC voltage, this single phase filter operates effectively across 50Hz to 60Hz frequencies using a spade termination style for straightforward chassis installation.

The filter's two element circuit provides effective EMI attenuation above 1MHz, ensuring reduced electromagnetic interference in sensitive equipment. Its compact dimensions of 85mm length, 52.6mm height, and 33.3mm depth allow easy integration in confined chassis setups.

With a low leakage current of just 5μA and an operational temperature range from -10°C to 40°C, this EMI filter is ideal for critical medical devices such as dialysis machines, medical lasers, diagnostic and operating room equipment, and imaging systems like MRT and CAT scanners. It complies with UL1283 safety standards, offering reliable and safe operation.

The internal ground circuit inductor variant available in the Corcom H series helps isolate the equipment chassis from power line ground at radio frequencies. This feature enhances performance in environments with stringent EMI regulation.

The robust construction and recognized reliability make this EMI filter suitable for diverse applications including industrial machinery, water treatment equipment, HVAC systems, and manufacturing instruments where EMI suppression is required.

The filter features a spade termination style for secure connection. Compact dimensions of 85mm length, 52.6mm height, and 33.3mm depth enable easy chassis mounting. It delivers EMI attenuation above 1MHz with a two element circuit design.

Low leakage current rating of 5μA makes it suitable for medical and diagnostic equipment. Operating temperature range from -10°C to 40°C ensures reliable performance. The product complies with UL1283 safety standards. Corcom H series filters include an internal ground circuit inductor variant for radio frequency isolation.

Widely used in medical lasers, dialysis machines, MRT and CAT scanners, and physical therapy equipment. Robust construction supports industrial and medical application EMI filtering needs. Explore EnvMart's extensive range of EMI Filters and components for your industrial and medical equipment needs.
