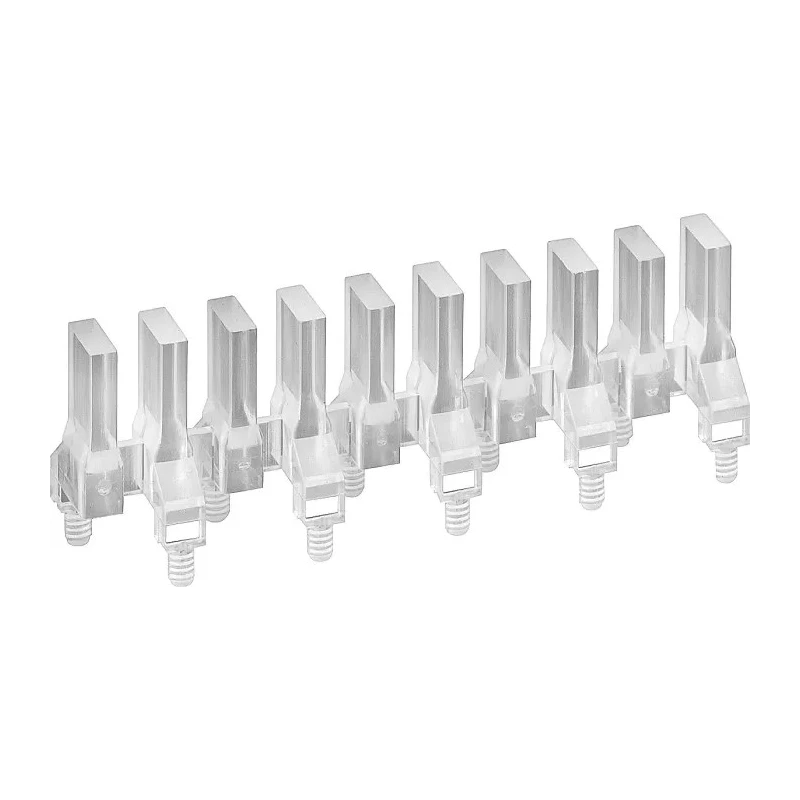

Mentor GmbH Vertical 10-Way Straight Rigid LED Light Pipe Clear 1274.1010

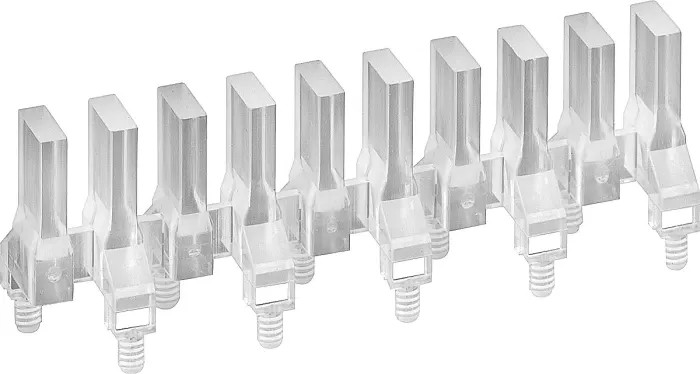

Mentor GmbH 1274.1010 Vertical 10-Way Straight Rigid LED Light Pipe Clear is a precision-engineered light guide designed for transmission of light from PCB-mounted LEDs to the user interface. The product comprises a single row of 10 rectangular light pipes with a vertical mount type and rigid construction ensuring high durability and reliability.

These light pipes are ideal for bargraph displays requiring multiple display segments with minimal light bleed between elements. Each light pipe has a length of 15mm and an outside diameter of 5.2mm, with an inside diameter of 2mm to guide light accurately. The clear polycarbonate material complies with UL94 flammability standards, offering safety and performance in industrial environments.

The vertical orientation and push-fit lugs enable straightforward fitting on circuit boards equipped with SMD LEDs (LEDs not included). The device accommodates an ambient operating temperature range from -40°C to +85°C, suitable for harsh industrial and commercial applications.

This product withstands challenging usage scenarios in electronic components, power connectors, and optoelectronics fields. Its rectangular bargraph configuration supports up to 10 columns for various display requirements.

Constructed with rigid polycarbonate material for durability. Features 10 ways with vertical mounting configuration. Rectangular shape with a length of 15mm and outside diameter of 5.2mm. Clear lens color to transmit light effectively without diffusion.

Designed for use with surface mount device (SMD) LEDs without LED included. Complies with UL94 standard for flammability resistance. Operating ambient temperature range from -40°C to +85°C. Configuration consists of a single row with 10 columns light pipes.

Ideal for industrial electronic and display applications requiring precise light guidance. Made in Germany ensuring quality manufacturing standards.

This vertical 10-way LED Light Pipe from Mentor GmbH is a reliable component suitable for industrial, laboratory, manufacturing, and electronics assembly applications. The product supports effective visual display designs with precision light transfer solutions. For more innovative LED lighting components, explore the full range on EnvMart.
