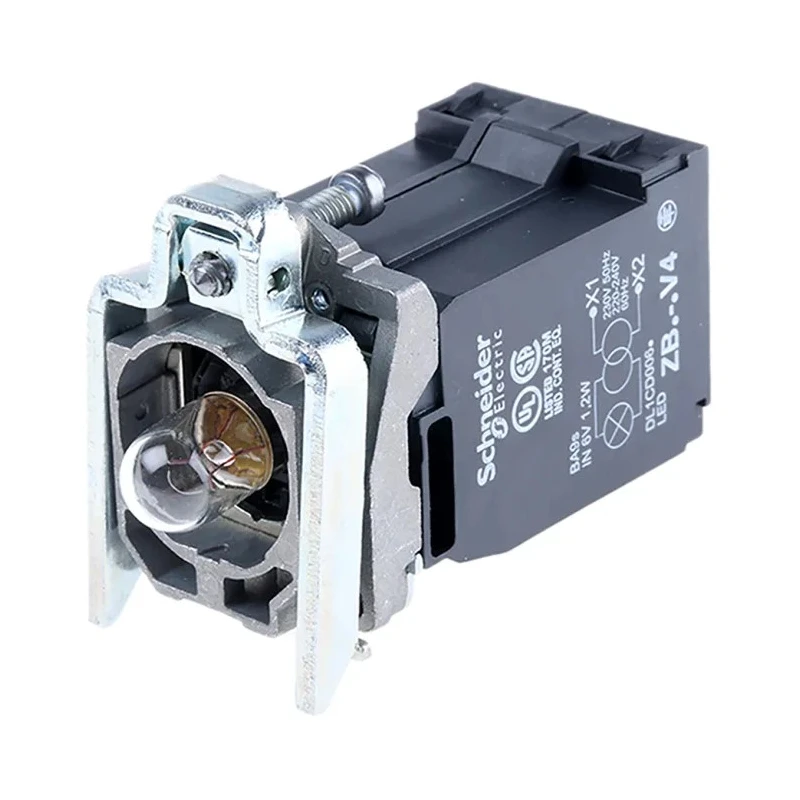

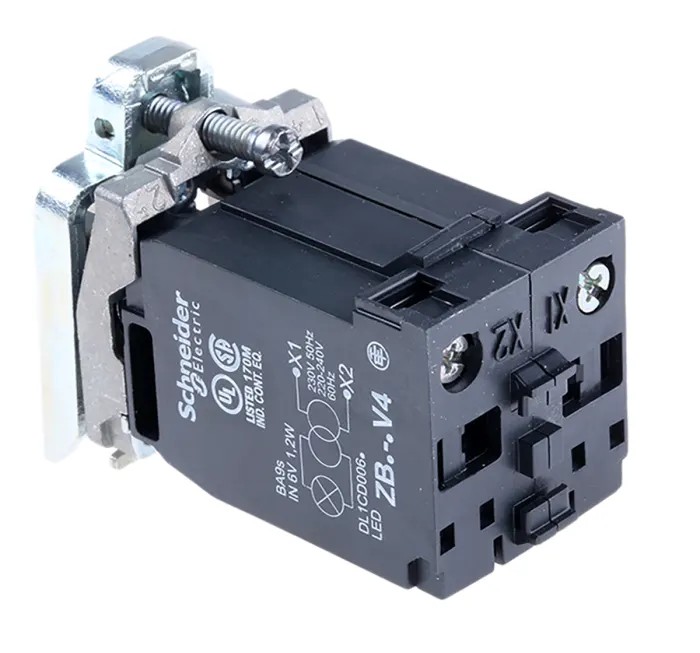

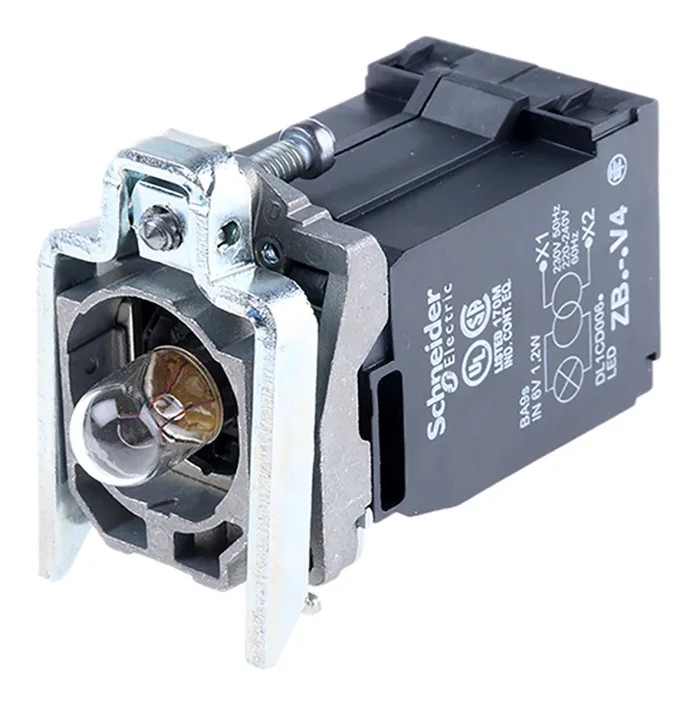

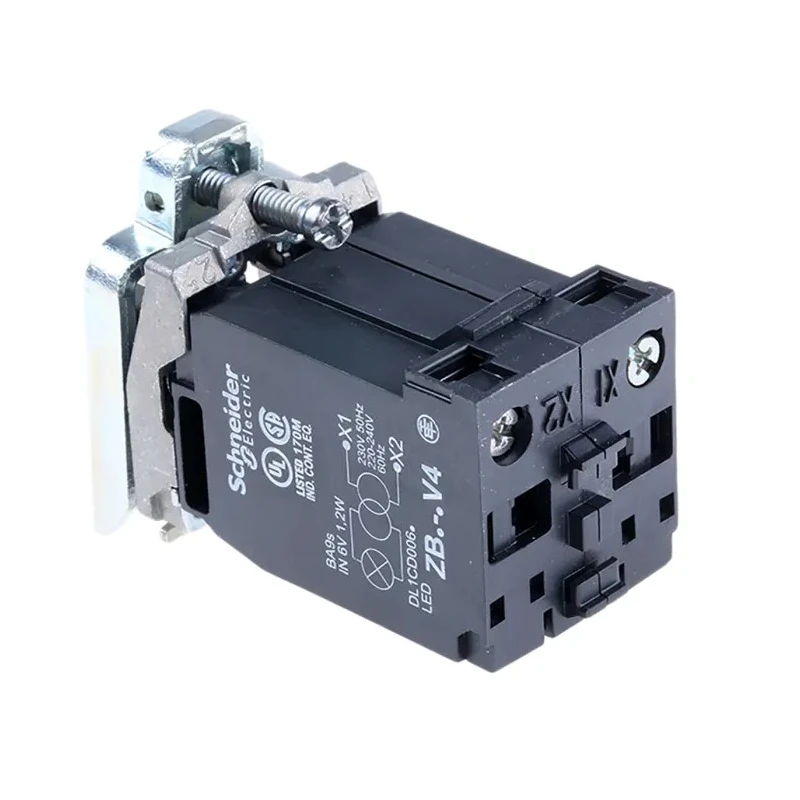

Schneider Electric Harmony Series Light Block Incandescent 240V ZB4BV4

Schneider Electric ZB4BV4 Harmony Series Light Block is engineered for industrial electrical switchgear and automation applications, delivering dependable pilot light functionality at 240 volts. It is designed to be used as a body for pilot lights, compatible with various pilot light heads, facilitating visual status indication in control panels.

The light block features an incandescent illumination system without integrated LED, powered through an integral transformer rated at 1.2 VA - 6 V. It includes screw clamp terminals for secure electrical connections and comes with a body/fixing collar to ensure stable mounting.

With compact dimensions of 60 mm length, 30 mm width, and 47 mm height, this component suits panel installations where space optimization is critical. It operates reliably across a broad temperature range from -40°C up to 55°C, making it suitable for demanding industrial environments.

The product meets important international safety and quality standards including CSA, RoHS, and UL, guaranteeing compliance with electrical equipment regulations. Its IP20 protection rating provides safeguard against solid objects larger than 12 mm, enhancing durability and operator safety.

Engineered to endure harsh conditions, the light block exhibits vibration resistance of 5 gn within 2 to 500 Hz frequencies and shock resistance between 30 to 50 gn depending on test duration. Being a Schneider Electric Green Premium product, it aligns with environmental sustainability goals by reducing ecological impact and facilitating safe disposal.

The assembly is lightweight and easily configurable, enabling quick installation and maintenance in industrial automation, manufacturing facilities, commercial switchboards, and HVAC control systems.

Complete light block body assembly for pilot light applications. 240V incandescent illumination without LED inclusion. Screw clamp terminals and fixing collar included for installation. Compact size with 60 mm length, 30 mm width, and 47 mm height.

Operating temperature range from -40°C to 55°C. Compliance with CSA, RoHS, and UL standards. IP20 protection rating against solid objects up to 12mm. Vibration and shock resistance for industrial durability. Schneider Electric Green Premium environmentally friendly design.

Manufactured in France ensuring quality and reliability.

Ideal for industrial, electrical, automation, and control panel applications requiring dependable pilot light indication. Browse the wide range of Schneider Electric products on EnvMart for complementary control and switching components.
