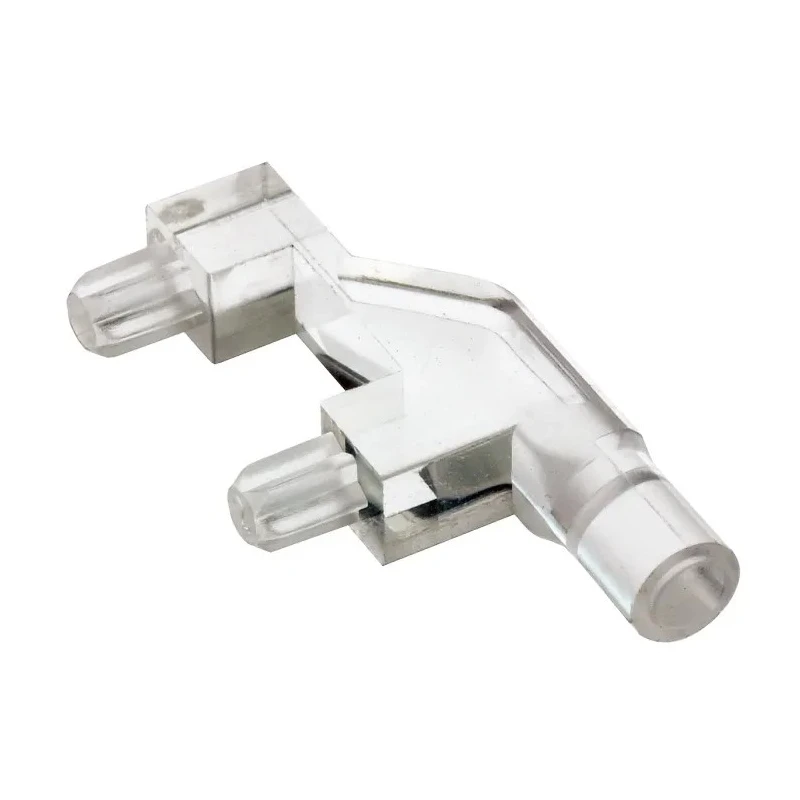

Mentor GmbH Rigid LED Light Pipe 10-Way Press-In, Right Angle, Clear Lens, 3 mm 1271.1000
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Mentor GmbH |
| Orientation | Right Angle |
| Length | 18.29mm |
| Number Of Ways | 10 |
| Mount Type | Press-In |
| Outside diameter | 3mm |
| Inside Diameter | 2.5mm |
| Ambient Temperature | -40°C to +85°C |
| Standards/Approvals | UL94 |
| Flexible/Rigid | Rigid |
| Lens Size | 3 mm |
| Light Pipe Shape | Cylindrical |
| Number of Light Pipes | 10 |
| Configuration Rows x Columns | 1 x 1 |
Key Features
- The light pipe is constructed from rigid PMMA material providing clear light transmission.
- It features a right angle orientation for efficient board mounting.
- Designed with 10 individual light pipes arranged in a single row.
- Mount type is press-in for secure PCB attachment using push-fit lugs.
- The product operates reliably in ambient temperatures from -40°C to +85°C.
- Each light pipe has an outside diameter of 3 mm and inside diameter of 2.5 mm.
- Measuring approximately 18.29 mm in length, suitable for horizontal light guiding.
- Conforms to UL94 flammability standard for safety assurance.
Product Description
Mentor GmbH 1271.1000 is a rigid LED light pipe designed for use in electronic components and LED lighting assemblies. This 10-way light pipe features a right angle orientation with a press-in mount type, facilitating easy and secure installation to printed circuit boards (PCBs). The clear PMMA material ensures optimal light transmission from the SMD LEDs to the user interface without luminance loss or bleed between adjacent elements.
The cylindrical shape and dimensions of each individual light pipe, measuring 3 mm in outside diameter and approximately 18.29 mm in length, make it ideal for horizontal light guiding applications. The inside diameter of 2.5 mm ensures efficient light capture from closely positioned LEDs on the PCB. Its robust construction supports operation across a wide ambient temperature range from -40°C to +85°C, making it suitable for various industrial and commercial environments.
Compliant with UL94 standards, this component ensures safe integration in electrical assemblies, offering high resistance to flammability. The compact single-row configuration with 10 columns accommodates complex lighting designs in industrial controls, instrumentation, and display products.
Its press-in mounting style simplifies assembly and enhances mechanical stability, supporting high ESD protection levels. The light pipe is made from PMMA clear material, offering excellent optical clarity. It has a press-in mount type designed for easy PCB installation.
Consists of 10 light pipes arranged in a single linear row. The rigid construction provides durability and stable performance. Suitable for ambient temperatures ranging from -40°C to +85°C. Usage is ideal for LED lighting components in electronic and industrial applications.
This LED Light Pipe is well-suited for industrial, laboratory, electronic equipment, instrumentation, and HVAC control panel applications where reliable light transmission is crucial. Explore our comprehensive range of LED lighting components for enhanced system designs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The light pipe measures approximately 18.29 mm in length.
Each light pipe has an outside diameter of 3 mm.
The inside diameter of each light pipe is 2.5 mm.
It can operate reliably in ambient temperatures ranging from -40°C to +85°C.
This model features 10 individual light pipes arranged in a single row.
It utilizes a press-in mount type for secure attachment to printed circuit boards (PCBs).
The light pipe is designed with a right angle orientation for efficient board mounting.
It is constructed from rigid PMMA material, which provides clear light transmission.
This model conforms to the UL94 flammability standard for safety assurance.
The light pipe has a cylindrical shape, which is suitable for horizontal light guiding applications.
It is suitable for industrial, laboratory, electronic equipment, instrumentation, and HVAC control panel applications.
The light pipe is manufactured in Germany.
