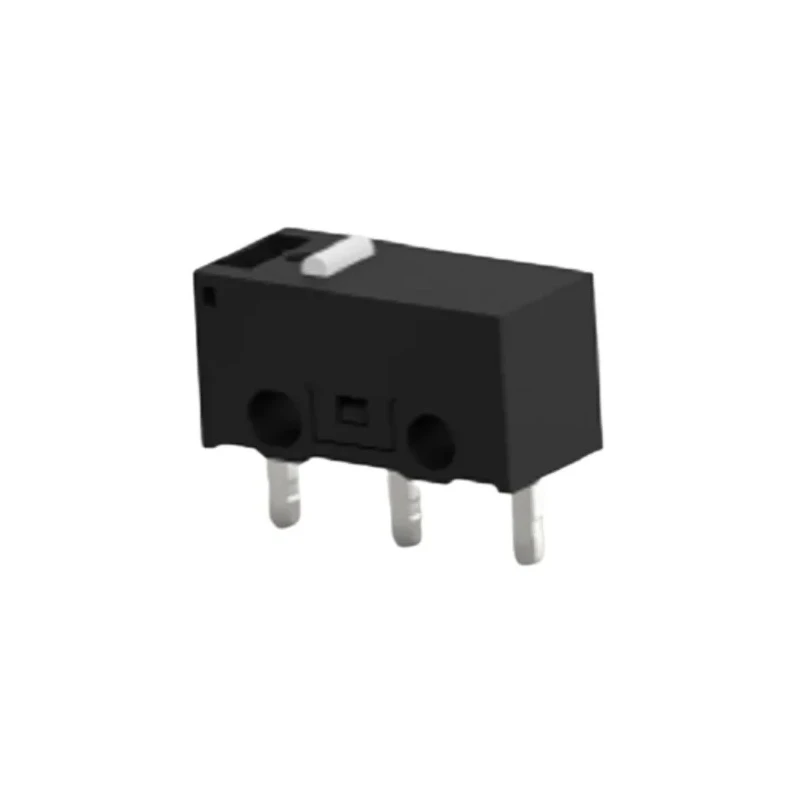

TE Connectivity Pin Plunger Snap Action Miniature Micro Switch, PCB Terminal, SPDT, 0.1A, 0.75N SAJ101XPP0N74SDTPTQ
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Model | SAJ101XPP0N74SDTPTQ |
| Series | SAJ1 |
| Maximum Operating Temperature | 75°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Switch Contact Current | 0.1A |
| Operating Force | 0.75N |
| Mechanical Life | 1000000Cycles |
| Microswitch Type | Miniature |
Key Features
- Pin plunger actuator type ensures reliable mechanical operation.
- Supports a switch contact current of 0.1A for low current switching.
- Operating force is low, at 0.75 Newtons, enabling sensitive actuation.
- Miniature switch type suited for compact designs and space-constrained applications.
- Rated mechanical life of 1,000,000 cycles ensures long-term durability.
- Operating temperature range from -25°C to 75°C enables use in varied environments.
- Complies with RoHS standards for hazardous substance restrictions.
- Suitable for home appliances, consumer electronics, and factory automation.
Product Description
TE Connectivity SAJ101XPP0N74SDTPTQ pin plunger snap action micro switch is a miniature SPDT switch with PCB terminal type. It is engineered to convert mechanical motion into electrical signals with high reliability and prolonged operational life.
The device features a pin plunger actuator type that delivers consistent actuation with a low operating force of 0.75N. It supports a contact current rating of 0.1 Amps and can operate within a temperature range of -25°C to 75°C, making it suitable for diverse industrial and domestic applications.
This miniature micro switch is widely used in home appliances, consumer electronics, factory automation, and other industrial applications due to its excellent lifecycle of one million mechanical cycles. Its PCB terminal design is resistant to flux, facilitating soldering operations on printed circuit boards.
The switch conforms to RoHS standards, ensuring compliance with environmental safety norms. Its compact footprint and dimensional compatibility with other popular micro switches make it ideal for integration into existing designs without modification.
Pin plunger actuator type ensures reliable mechanical operation. Low operating force of 0.75N enables sensitive actuation. Contact rating of 0.1A suitable for low current switching applications. Miniature size ideal for compact electronic devices.
Mechanical life of 1,000,000 cycles for extended durability. Operating temperature range from -25°C to 75°C suits various environments. RoHS compliant for hazardous substances restriction. PCB terminal with flux resistance for durable circuit mounting.
Dimensionally interoperable with other popular micro switches. Applicable in home appliances, consumer electronics, and factory automation.
This high-performance micro switch from TE Connectivity is designed to deliver precision and reliability in electrical switching tasks, making it an indispensable component in industrial automation and consumer devices. Explore more Micro Switch products in the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch features a Single Pole Double Throw (SPDT) contact configuration, allowing it to control multiple circuits.
The maximum operating temperature for this micro switch is 75°C, making it suitable for various environments.
This model has a rated mechanical life of 1,000,000 cycles, ensuring long-term operational reliability.
The operating force required for actuation is 0.75 Newtons, enabling sensitive actuation.
The switch supports a contact current rating of 0.1 Amps, suitable for low current switching applications.
It uses a pin plunger actuator type, which ensures reliable mechanical operation.
The minimum operating temperature is -25°C, allowing for use in colder environments.
This model features a PCB terminal type, designed for easy soldering on printed circuit boards.
Yes, it complies with RoHS standards, ensuring it meets hazardous substance restrictions.
It is suitable for use in home appliances, consumer electronics, and factory automation applications.
This switch is classified as a miniature micro switch, making it ideal for compact designs.
The country of origin for this micro switch is China.
