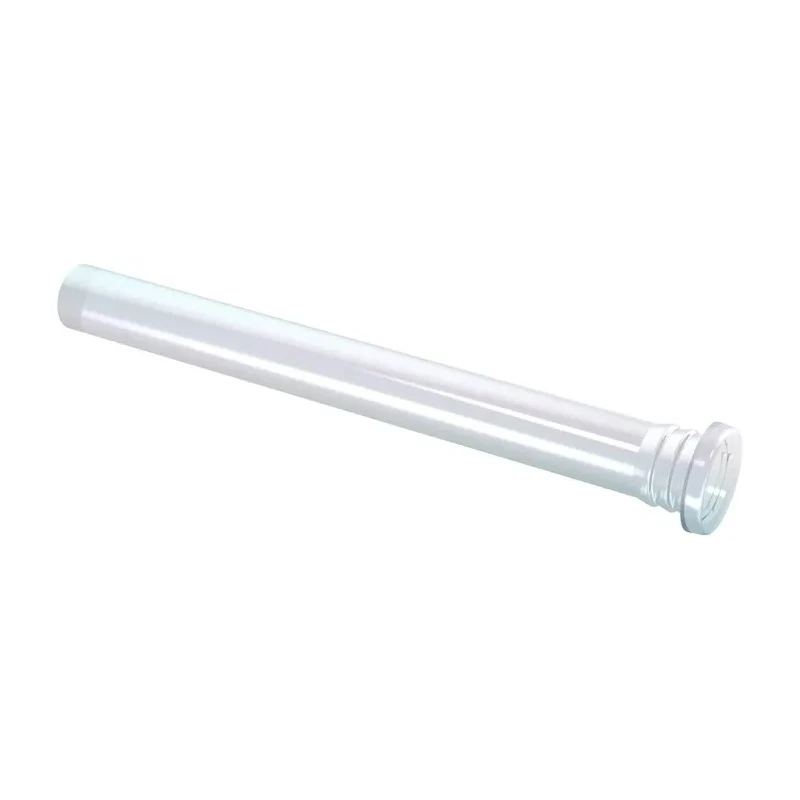

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow 1292.1501

Mentor GmbH 1292.1501 Panel Mount 1-Way Straight Rigid LED Light Pipe is designed for reliable front panel light guiding in industrial, medical, and communications equipment applications. The light pipe is constructed from clear polycarbonate (PC) UL94 material which is both transparent and flame retardant, ensuring durability and safety in various environments.

This LED light pipe mounts easily on front panels using its panel mount design and features a straight 0° inject face that positions closely to the light emitting diode (LED) for efficient light transfer. Its recessed light pipe shape and rigid structure guarantee minimal loss of luminance and prevent light bleed, delivering precise illumination where required.

The product measures 8.7mm in length, with an outside diameter of 2.2mm and an inside diameter of 1.5mm, making it compact yet effective for space-constrained panel designs. It is compatible with several SMD LED families including SIDELED, TOPLED, and CHIPLED, offering design flexibility.

The light pipe achieves an IP68 waterproof rating, tested according to Mentor GmbH's standards, making it suitable for harsh and demanding environments where moisture resistance is critical. Its operating temperature range from -20°C to +50°C further supports reliability in diverse industrial and commercial applications.

This product is RoHS compliant, which means it meets environmental and safety standards restricting hazardous substances, making it an eco-friendly choice. Typical applications include medical devices, security safety systems, communication equipment, and various industrial control interfaces.

Installation is simple with a precise mounting hole that ensures a secure fit on the front panel. The clear plastic lens color with yellow LED color enhances visibility and aesthetic appeal.

Rigid construction ensures durability and stable light transmission. Panel mount design allows easy installation on front panels. Straight orientation with recessed light pipe shape for precise light direction. Length of 8.7mm with an outside diameter of 2.2mm and inside diameter of 1.5mm.

Compatible with SMD LEDs such as SIDELED, TOPLED, and CHIPLED families. Meets RoHS standards and has an IP68 waterproof rating for harsh environment applications. Operating ambient temperature range from -20°C to +50°C. Made from clear PC UL94 material offering translucency and flame retardance.

Suitable for use in industrial controls, medical devices, and communications equipment. Explore more LED Light Pipes and lighting solutions in the Electronics & Electricals category on EnvMart.
