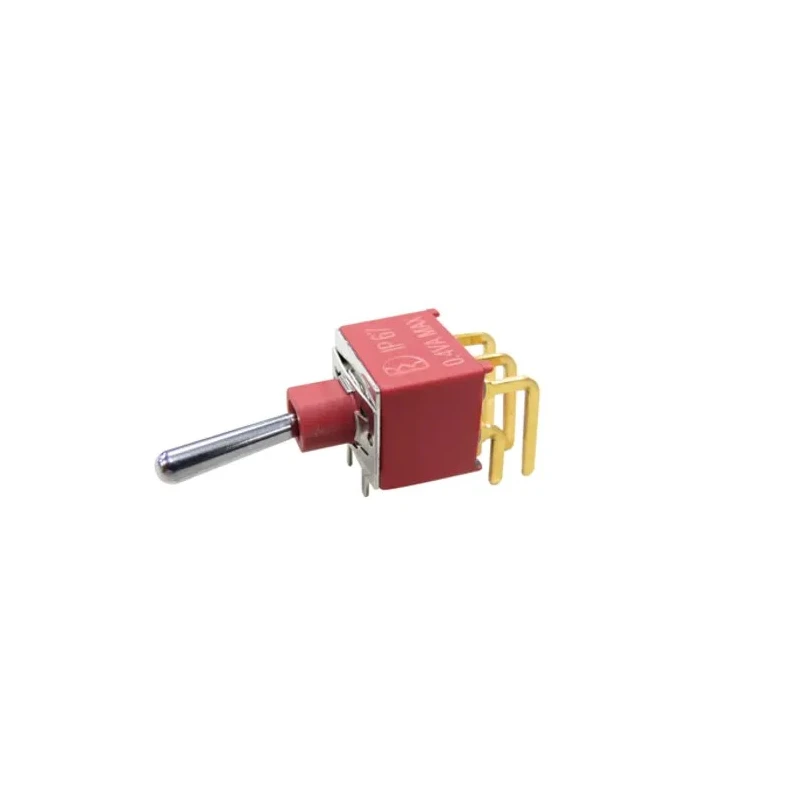

RS PRO Toggle Switch Through Hole Mount On-Off-On SPDT 5A Chrome Plated Brass Actuator 209-9346

RS PRO 209-9346 is a high-quality miniature toggle switch designed for effective control of electrical circuits in industrial, telecommunications, and automation applications. This through hole mount switch provides ON-OFF-ON operation with a Single Pole Double Throw (SPDT) contact configuration.

The switch features a robust chrome plated brass actuator, ensuring reliable tactile feedback and long service life. Its waterproof sealing complies with IP67 standards, protecting sensitive electronic components from dust and water exposure during use or soldering processes.

Rated for a 5 ampere contact current, this toggle switch supports electrical circuits requiring moderate current capacity. The wide temperature range capability from -40°C up to 85°C enables operation in challenging environments such as marine control panels, industrial machinery controls, and instrumentation devices.

Mounting and electrical connection is facilitated via through hole terminals, suitable for printed circuit boards and secure installation. The switch's compact dimensions, including a 12.7 mm actuator height and 6.6 mm width, make it adaptable to space-constrained assembly layouts.

Designed to comply with RoHS directives, the RS PRO 209-9346 upholds strict environmental standards through lead-free and hazardous substance-free materials. The ON-OFF-ON switch operation allows two separate circuit paths and an off state for versatile circuit designs.

Durable construction offers a 30,000 cycle mechanical life for reliability in frequent switching applications. IP67 sealing ensures protection during installation and operation in dusty or wet environments. Applicable in telecommunications, networking equipment, industrial control panels, and instrumentation devices.

The switch is suitable for use in elevators, marine control panels, medical devices, and food processing equipment. The chrome plated brass actuator provides corrosion resistance and long-lasting mechanical performance.

This Toggle Switch is an essential component for engineers and technicians seeking a dependable switching solution for a wide variety of electrical and electronic applications. Explore the full range of reliable industrial switches at EnvMart for your project needs.
