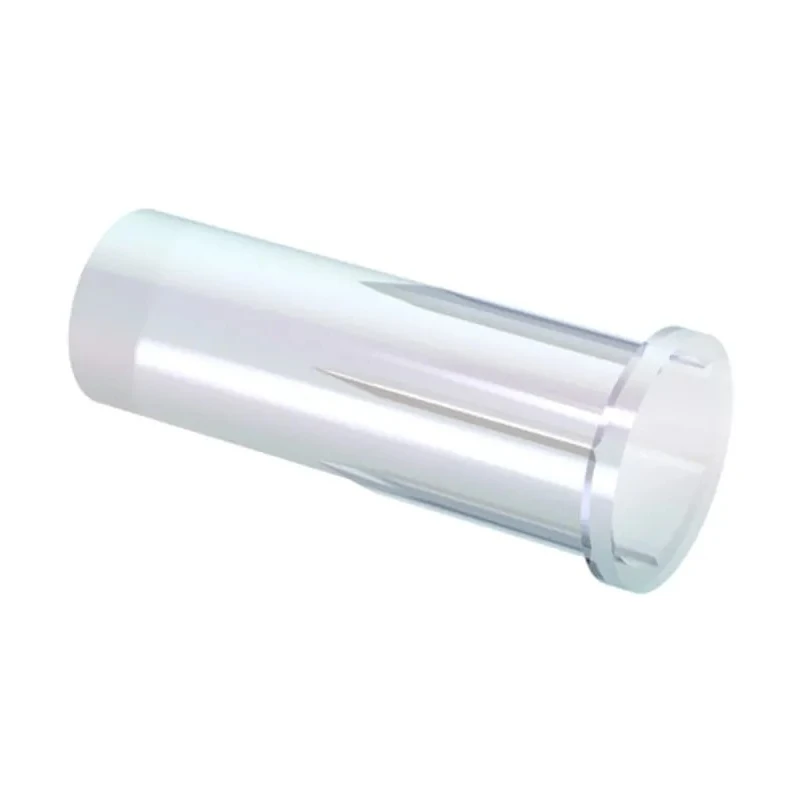

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow 1293.1700

Mentor GmbH 1293.1700 Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow is designed to transmit light efficiently from PCB-mounted LEDs to front panels in industrial, medical, security, communication, and manufacturing applications. This rigid light guide measures 22.4 mm in length and features a straight 0° inject face allowing close proximity mounting to SMD LEDs such as OSRAM's SIDELED, TOPLED, and CHIPLED series.

Constructed from clear PC UL94 plastic, the light pipe ensures excellent durability and reliability, working across a wide ambient temperature range from -40°C up to +85°C. The design offers high electrostatic discharge (ESD) protection and minimizes light bleed between adjacent components, facilitating clean, precise light transmission on control panels.

This product mounts easily in panel cutouts with a diameter of 5 mm outer and 4 mm inner diameter. It complies with UL94 flammability standards, making it a safe choice for electronic device applications. Its single 1-way configuration fits standard front panel mounting requirements.

Common applications include medical devices, security safety systems, communication equipment, industrial controls, and other environments requiring efficient visual LED indication through panel surfaces. The light pipe's clear lens color and yellow LED compatibility deliver bright, clear illumination.

Made of clear PC UL94 plastic material suitable for front panel mounting. Features a straight 0° inject face for efficient light transmission. Compatible with SMD LEDs including OSRAM SIDELED, TOPLED, and CHIPLED families.

Designed for use in medical, security, communication, and industrial control equipment. Operates reliably in ambient temperatures from -40°C to +85°C. Provides high ESD protection and prevents light bleed between adjacent elements.

Dimensions: length 22.4 mm, outside diameter 5 mm, inside diameter 4 mm. Single 1-way light pipe, panel mount type with UL94 approvals.

This product is sourced from Mentor GmbH, manufactured in Germany, and supplied as new. It is ideal for professional electronics assembly, industrial manufacturing, and product development environments where robust LED indication is required.
