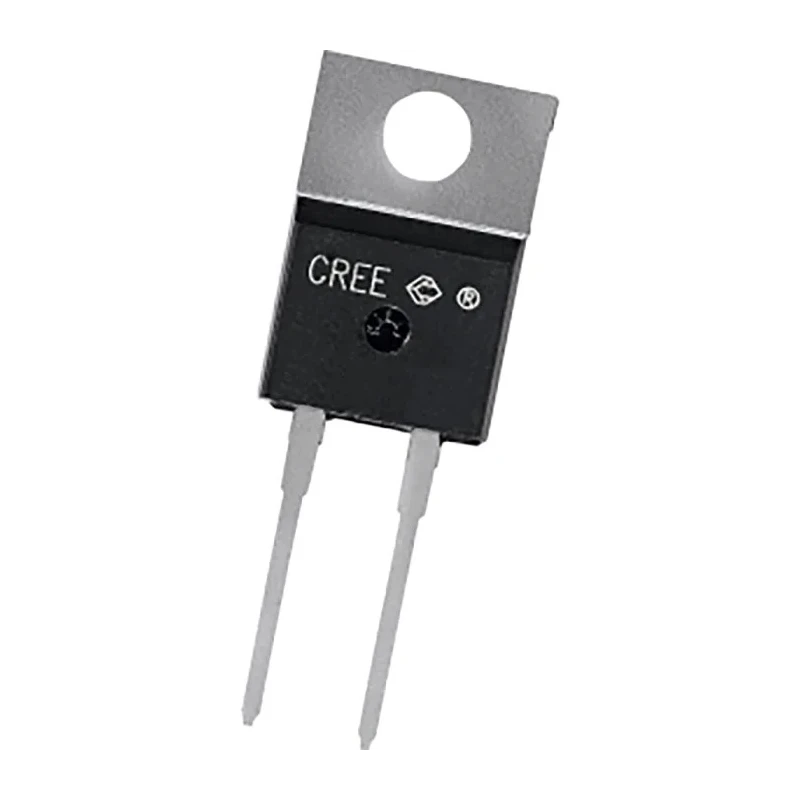

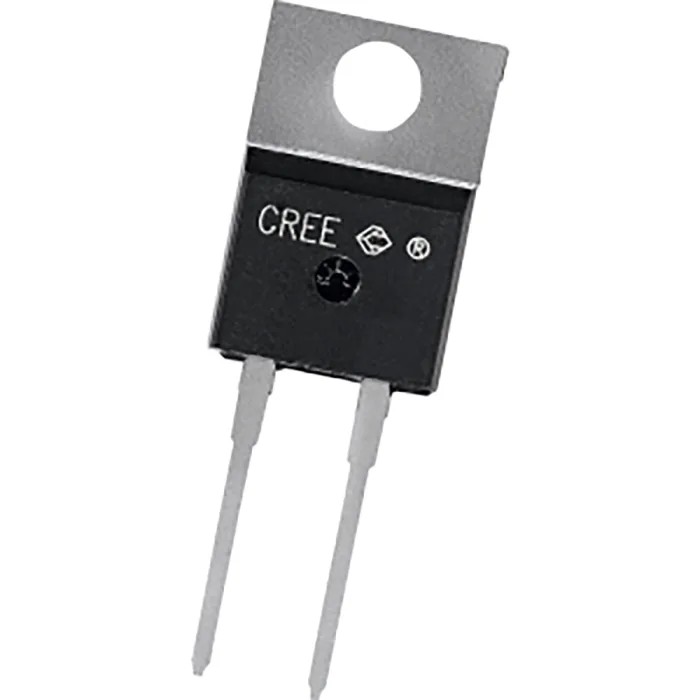

Wolfspeed 650 V 8 A Through Hole Rectifier & Schottky Diode 2-Pin TO-220 C6D08065A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wolfspeed |
| Height | 29.13mm |
| Length | 10.41mm |
| Model | C6D08065A |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Series | Z-Rec |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 8A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 160μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 69A |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- Features a TO-220 package with through-hole mounting for robust PCB integration.
- Operates over a temperature range of -55°C to 175°C ensuring reliability under harsh conditions.
- Offers low forward voltage of 1.6V enabling higher efficiency and lower power loss.
- Peak non-repetitive forward surge current rating of 69A provides excellent transient handling.
- Designed with 6th generation technology for extremely fast switching and zero reverse recovery current.
- Positive temperature coefficient on forward current reduces thermal runaway risk in parallel operation.
- Compact dimensions of 29.13 mm height, 10.41 mm length, and 4.7 mm width allow for high-density circuit design.
- Ideal for industrial, automotive, power conversion, and electronic equipment applications.
Product Description
Wolfspeed C6D08065A is a high-performance rectifier and Schottky diode housed in a TO-220 package with 2 pins and through-hole mounting design.
It supports a maximum continuous forward current of 8 amperes and can withstand a peak reverse repetitive voltage of 650 volts, making it suitable for demanding power electronic applications.
The device features a low maximum forward voltage of 1.6 volts, significantly improving efficiency by reducing conduction losses. Operating reliably between -55°C and 175°C, it withstands harsh industrial environments and extended temperature ranges.
The diode is designed with new 6th generation technology that offers extremely fast switching speeds and zero reverse recovery current, effectively minimizing switching losses and heat generation.
Its positive temperature coefficient on forward current ensures safe operation in parallel device configurations by reducing thermal runaway risks. Compact physical dimensions ensure the component fits in high power density designs and systems requiring efficient power management.
Features a TO-220 package with through-hole mounting for robust PCB integration. Operates over a temperature range of -55°C to 175°C ensuring reliability under harsh conditions. Offers low forward voltage of 1.6V enabling higher efficiency and lower power loss.
Peak non-repetitive forward surge current rating of 69A provides excellent transient handling. Designed with 6th generation technology for extremely fast switching and zero reverse recovery current. Positive temperature coefficient on forward current reduces thermal runaway risk in parallel operation.
Compact dimensions of 29.13 mm height, 10.41 mm length, and 4.7 mm width allow for high-density circuit design. Ideal for industrial, automotive, power conversion, and electronic equipment applications.
This Wolfspeed Schottky diode is widely used in industrial power supplies, automotive electronics, renewable energy systems, and various electronic and semiconductor circuits critical for high reliability and performance.
Explore more Schottky Diodes and rectifiers suitable for high-efficiency and high-speed switching applications within the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 8 amperes.
This diode can withstand a peak reverse repetitive voltage of 650 volts.
It operates reliably over a temperature range of -55°C to 175°C.
The maximum forward voltage is 1.6 volts, which helps in reducing conduction losses.
The peak non-repetitive forward surge current rating is 69 amperes.
The dimensions of the TO-220 package are 29.13 mm in height, 10.41 mm in length, and 4.7 mm in width.
This model features a through-hole mounting design for robust PCB integration.
It is designed with 6th generation technology, which provides extremely fast switching and zero reverse recovery current.
The diode is configured as a single Schottky diode.
It is suitable for industrial, automotive, power conversion, and electronic equipment applications.
The peak reverse current is rated at 160 microamperes.
The positive temperature coefficient on forward current helps reduce the risk of thermal runaway in parallel operations.
