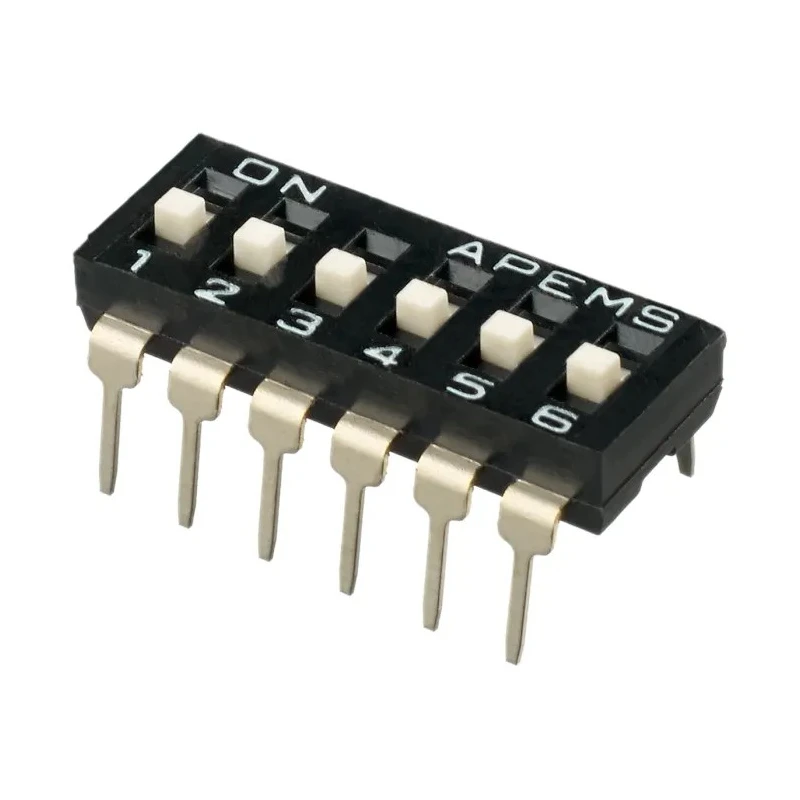

APEM Raised Actuator Slide Rotary Coded DIP Switch IKD0600101

APEM IKD0600101 Raised Actuator Slide Rotary Coded DIP Switch features a low profile design that ensures reliable operation with a positive detent action, making it ideal for precise control in electrical and automation equipment.

Designed with a raised actuator slide, this switch allows for effortless manual actuation even in compact electronic assemblies. It is available with 1 to 12 poles, supporting a wide range of circuit design requirements.

Mounting options include surface mount technology (SMT) or through hole, providing compatibility with different PCB layouts and assembly processes. The switch incorporates self-cleaning wiping contacts which enhance reliability over long-term use by preventing oxidation buildup on contact surfaces.

Terminals are gold plated, ensuring high conductivity and corrosion resistance, essential for maintaining signal integrity and switch longevity. The switch’s SMT gull wing or J bend terminal style supports efficient mass production using IP reflow and wave soldering methods.

These features make the APEM IKD0600101 suitable for applications across industrial automation, laboratory instrumentation, and other electrical control systems requiring dependable multi-pole switching capabilities.

This DIP switch features a raised actuator slide for easy manual switching. Available with 1 to 12 poles to accommodate various circuit configurations. Surface mount or through hole mounting options ensure versatile installation.

Includes self-cleaning wiping contacts to maintain optimal conductivity. Gold plated terminals provide excellent corrosion resistance and signal integrity. Suitable for SMT gull wing or J bend soldering techniques. Compatible with IP reflow and wave soldering processes for manufacturing efficiency.

Ideal for use in industrial, laboratory, and automation control applications. Explore the full range of Rotary Coded DIP Switches for tailored electrical and automation solutions on EnvMart.
