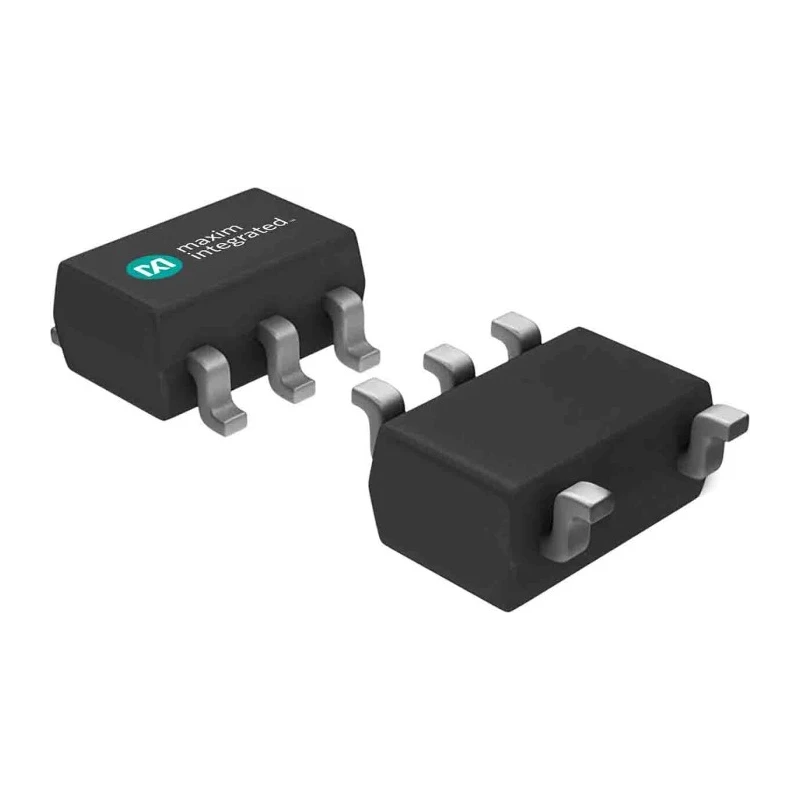

Maxim Integrated Operational Amplifier 5 MHz 5-Pin SOT-23 2.7V to 6.5V Single-Supply MAX4122EUK+T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 1.3mm |
| Length | 3mm |
| Model | MAX4122EUK+T |
| Width | 1.75mm |
| Mount Type | Surface |
| Output Current | 50mA |
| Industrial | Process Measurement and Control |
| Maximum Operating Temperature | 85°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 5 |
| Maximum Supply Voltage | 6.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 5MHz |
| Input Bias Current | 150 nA |
| Vos - Input Offset Voltage | 1.5 mV |
| Slew Rate | 2V/μs |
| Input Offset Current | 12 nA |
| Computers | Desktops, Workstations, and Servers |
Key Features
- Surface-mount package type suitable for compact PCB designs.
- Single channel operational amplifier with rail-to-rail input and output voltage capability.
- Low input offset voltage of 1.5 mV for precise signal amplification.
- Operates within temperature range of -40°C to 85°C for industrial reliability.
- 5 MHz gain-bandwidth product optimizes frequency response.
- Low quiescent current of 650 μA enhancing power efficiency.
- Output current capacity of up to 50 mA suitable for driving moderate loads.
- Slew rate of 2 V/μs supports responsive signal changes.
Product Description
Maxim Integrated MAX4122EUK+T is a high-performance operational amplifier designed for low-voltage, single-supply applications operating from 2.7V to 6.5V. Packaged in a compact 5-pin SOT-23 form factor, this amplifier provides versatile deployment in surface-mount PCB assemblies.
It features a 5 MHz gain-bandwidth product with rail-to-rail input common-mode voltage range and rail-to-rail output swing, optimizing performance in precision signal amplification tasks. The device operates with a low input offset voltage of 1.5 mV and low input bias current of 150 nA, ensuring accurate signal conditioning.
The MAX4122EUK+T supports stable and unity-gain operation while driving loads up to 250 Ohms and capacitive loads up to 500 pF, making it suitable for demanding industrial and automotive environments without phase reversal issues.
It operates reliably across a temperature range from -40°C to +85°C, meeting RoHS compliance standards. Typical quiescent current per amplifier is 650 μA, with an available shutdown function on some variants for power saving.
The operational amplifier finds applications in automotive sensor signal processing, wireless infrastructure base stations, battery-powered portable devices, industrial process measurement and control systems, as well as computer motherboards and programmable logic controllers (PLCs).
Surface-mounted 5-Pin SOT-23 package optimized for compact circuits. Single-supply operation from 2.7V to 6.5V for flexible design options. Rail-to-rail input and output voltage ranges maximize signal dynamic range. Low input offset voltage and bias currents enhance precision performance.
High slew rate and gain-bandwidth product ensure fast and stable signal response. Stable operation with capacitive and resistive loads prevents oscillations. RoHS compliant ensuring environmental safety and regulatory compliance.
Wide operating temperature range suitable for automotive and industrial use cases.
This Maxim Integrated operational amplifier is a robust choice for precise signal amplification in diverse electronics applications including industrial controls, automotive sensors, portable instrumentation, and data acquisition systems. Explore more Operational Amplifiers in the Electronics & Electricals category at EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain-bandwidth product of this operational amplifier is 5 MHz, which optimizes its frequency response for various applications.
It operates reliably within a temperature range of -40°C to +85°C, making it suitable for industrial and automotive applications.
This operational amplifier can drive loads with an output current capacity of up to 50 mA.
The input offset voltage is 1.5 mV, which enhances its precision in signal amplification tasks.
It comes in a 5-pin SOT-23 surface-mount package, suitable for compact PCB designs.
It operates with a single supply voltage ranging from 2.7V to 6.5V.
The dimensions are 3 mm in length, 1.75 mm in width, and 1.3 mm in height.
The slew rate is 2 V/μs, which supports responsive signal changes.
Yes, it meets RoHS compliance standards, ensuring environmental safety and regulatory compliance.
This operational amplifier is suitable for automotive sensor signal processing, wireless infrastructure, and industrial process measurement and control systems.
The input bias current is 150 nA, which contributes to its accurate signal conditioning capabilities.
It supports stable operation with capacitive loads up to 500 pF, preventing oscillations in demanding applications.
