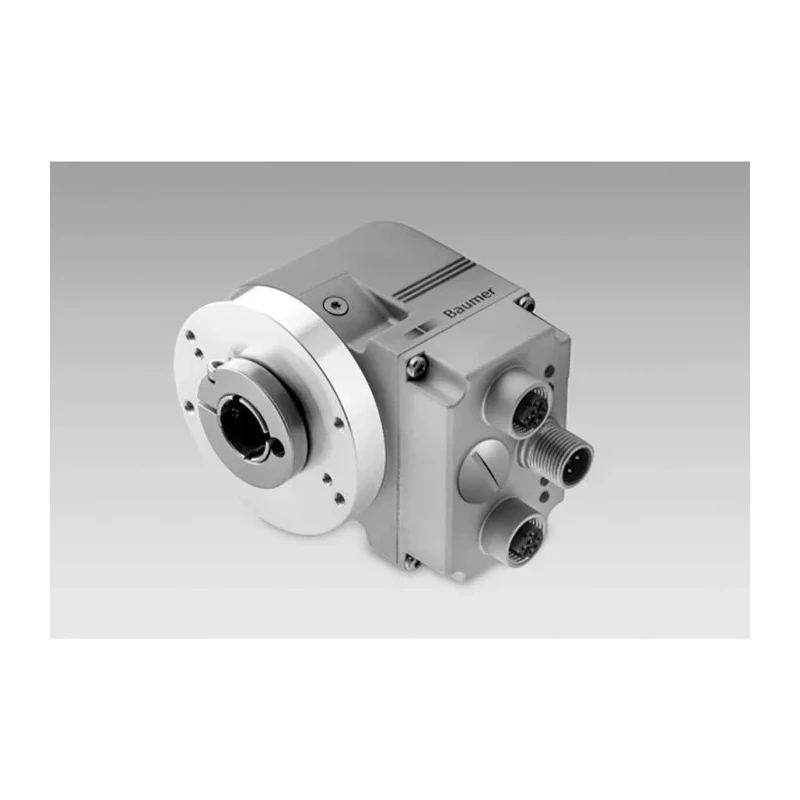

Baumer Optical Absolute Encoder 30V dc, Analogue Signal, Hollow Type, 12 mm Shaft EAL580

Free Delivery in India | Lowest Global Shipping Charges

Baumer Optical Absolute Encoder 30V dc, Analogue Signal, Hollow Type, 12 mm Shaft EAL580

Name: Baumer Optical Absolute Encoder 30V dc, Analogue Signal, Hollow Type, 12 mm Shaft EAL580
Brand: Baumer
SKU: 260582
Price: 1098.05 USD
Availability: InStock



Category Optical Encoder Brand Baumer Condition New

Specifications

Country of Origin	Germany
Brand	Baumer
Model	EAL580
IP Rating	IP65
Mount Type	Blind Hollow Shaft Flange
Series	EAL580
Overall Width	58mm
Maximum Operating Temperature	85°C
Max. Resolution	single turn 18 bit, multi turn 16 bit
Minimum Operating Temperature	-40°C
Shaft Diameter	12mm
Overall height	90.9mm
Shaft Type	Hollow
Terminal type	M12 Flange Connector
Interface Type	PROFINET
Standards/Approvals	UL
Maximum Supply Voltage	30V dc
Overall Depth	59mm
Encoder Technology	Optical
Maximum Revolutions	6000rpm
Output Signal Type	Analogue

Key Features

Features a hollow shaft design with 12 mm diameter for easy integration.
Offers analogue output signal compatible with PROFINET interface.
Robust M12 flange connector ensures secure electrical connections.
IP65 rated casing for protection against dust and water ingress.
Operates reliably within temperature range of -40°C to 85°C.
Maximum rotational speed up to 6000 rpm suitable for varied applications.
Blind hollow shaft flange mounting simplifies installation processes.
Designed for resistance against magnetic fields ensuring signal accuracy.

Product Description

Baumer EAL580 Optical Absolute Encoder 30V dc, model EAL580, delivers high precision multi-turn absolute position measurement with optical sensing technology. It supports single turn resolutions up to 18 bits and multi-turn resolution up to 16 bits, ensuring highly accurate feedback for motion control systems.

The encoder is designed with a hollow shaft of 12 mm diameter and features a blind hollow shaft flange mount for simplified mechanical integration. It provides analogue output interfaced through a PROFINET connection with a robust M12 flange connector to withstand industrial environments.

Boasting an IP65 ingress protection rating, the EAL580 is sealed against dust and jets of water, suitable for demanding manufacturing, automation, and motion control applications. Operational within a wide temperature range from -40°C up to 85°C, it performs reliably in harsh conditions. The unit can handle rotational speeds up to 6000 rpm, making it suitable for a variety of rotary shaft applications.

Additional attributes include resistance to magnetic interference, enhancing signal integrity and precision in electrically noisy environments. The product complies with UL standards, attesting to its quality and safety.

Manufactured in Germany, the Baumer EAL580 is ideal for industrial automation, robotics, packaging machinery, and other precision motion control use cases. It delivers reliable position feedback necessary for process control and monitoring.

Hollow shaft design with 12 mm diameter for flexible mounting. Analogue output compatible with PROFINET industrial communication protocol. IP65 rated for dust and water protection for use in harsh environments. Wide operating temperature range of -40°C to 85°C.

High resolution: single turn 18 bit, multi turn 16 bit for precise positioning. Robust M12 flange connector ensures secure electrical interface. Maximum rotational speed of 6000 rpm supports fast motion applications. Resistance to magnetic fields for signal reliability in industrial settings.

Compliant with UL safety standards. German engineering quality assuring durability and performance. Explore the comprehensive range of Baumer Optical Encoders and sensors on EnvMart for advanced motion control solutions in industrial and automation environments.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum rotational speed of this encoder is 6000 rpm, making it suitable for fast motion applications.

It provides an analogue output signal, which is compatible with the PROFINET interface.

This model offers a single turn resolution of up to 18 bits and a multi-turn resolution of up to 16 bits, ensuring high precision in position measurement.

The encoder has an IP65 rating, providing protection against dust and water ingress, suitable for harsh environments.

The overall dimensions are 58 mm in width, 90.9 mm in height, and 59 mm in depth.

It operates reliably within a temperature range of -40°C to 85°C.

This model features a blind hollow shaft flange mount, simplifying mechanical integration.

It uses a robust M12 flange connector for secure electrical connections.

Yes, it is designed to be resistant to magnetic fields, enhancing signal integrity in electrically noisy environments.

This encoder complies with UL standards, ensuring its quality and safety for industrial applications.

It is manufactured in Germany, reflecting high engineering standards.

It is ideal for use in industrial automation, robotics, packaging machinery, and precision motion control applications.
