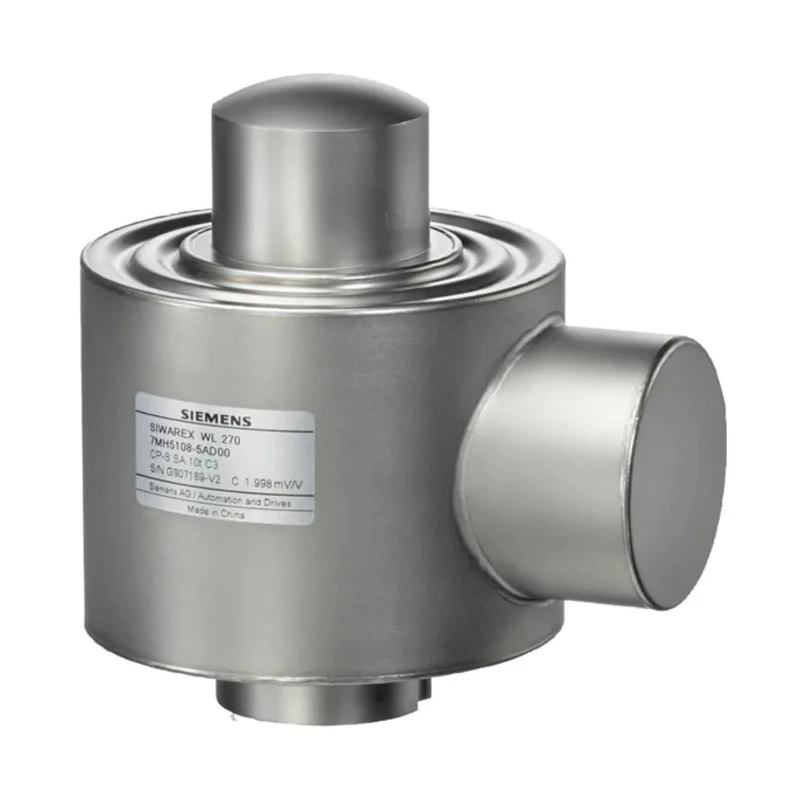

Siemens SIWAREX WL Series Load Cell Compression Measurement 50t Stainless Steel IP68 7MH5108-5PD00
Specifications
| Country of Origin | China |
|---|---|
| Brand | Siemens |
| Length | 27mm |
| Model | 7MH5108-5PD00 |
| Depth | 27mm |
| IP Rating | IP68 |
| Width | 27mm |
| Housing Material | Stainless Steel |
| Series | SIWAREX WL |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -35°C |
| Terminal type | Screw |
| Maximum dc Voltage | 12V dc |
| Standards/Approvals | OIML R60 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 50t |
Key Features
- The load cell features a compact design with a stainless steel housing for durability.
- It provides an IP68 protection rating ensuring resistance to dust and water ingress.
- The unit operates within a temperature range from -35°C to 65°C.
- Equipped with screw terminals and supports a maximum DC voltage of 12V.
- Its accuracy is certified to OIML R60 standards for reliable measurement.
- The device includes a 15m, 4-conductor cable for ease of installation.
- Designed for industrial applications including container, hopper, and vehicle scales.
- The product is manufactured in China and belongs to the SIWAREX WL series.
Product Description
Siemens 7MH5108-5PD00 SIWAREX WL Series Load Cell is designed for compression force measurement with a rated load capacity of 50t. It is constructed with a stainless steel solid cylinder measurement element fitted with four strain gauges, which enables high accuracy and durability in demanding industrial environments.
The load cell offers a compact 27mm cubic form factor and a robust IP68 ingress protection rating, making it suitable for harsh environments where exposure to dust and water is a concern. It operates reliably within an extended temperature range from -35°C to 65°C, accommodating varying climatic and operational conditions.
The device is equipped with screw terminals and supports a maximum DC voltage of 12V, facilitating straightforward electrical connectivity. Accuracy class C3 certification and compliance with OIML R60 standards guarantee precision and reliability for all industrial weighing applications.
With a 15-meter four-conductor cable included, installation is quick and adaptable to different setups. Commonly used in medium and small container, hopper, and vehicle scale applications, the SIWAREX WL load cells deliver stable and consistent force measurements critical to industrial automation, material handling, and process control.
The product is manufactured in China, ensuring quality manufacturing standards as per Siemens expectations. This load cell is part of the Siemens SIWAREX WL series, providing a wide range of options for various nominal loads alongside mounting accessories for optimum alignment and protection.
The load cell features a compact design with a stainless steel housing for durability. It provides an IP68 protection rating ensuring resistance to dust and water ingress. The unit operates within a temperature range from -35°C to 65°C.
Equipped with screw terminals and supports a maximum DC voltage of 12V. Its accuracy is certified to OIML R60 standards for reliable measurement. The device includes a 15m, 4-conductor cable for ease of installation. Designed for industrial applications including container, hopper, and vehicle scales.
The product is manufactured in China and belongs to the SIWAREX WL series.
Ideal for industrial automation, material handling, HVAC systems, manufacturing, and laboratory use, this load cell delivers reliable and precise force measurement for multiple demanding applications. Explore more Siemens sensors and Load Cells at EnvMart for comprehensive industrial weighing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The load cell has a maximum load capacity of 50 tons (50t).
This model has a compact cubic form factor with dimensions of 27mm x 27mm x 27mm.
It operates within a temperature range from -35°C to 65°C.
The load cell has an IP68 protection rating, ensuring resistance to dust and water ingress.
It is equipped with screw terminals for electrical connectivity.
The load cell supports a maximum DC voltage of 12V.
It is certified to OIML R60 standards for accuracy and reliability in measurement.
This model is designed to measure compression forces.
The device includes a 15-meter, 4-conductor cable to facilitate installation.
It is commonly used in industrial applications such as container, hopper, and vehicle scales.
The product is manufactured in China.
The load cell features a stainless steel housing for durability.
