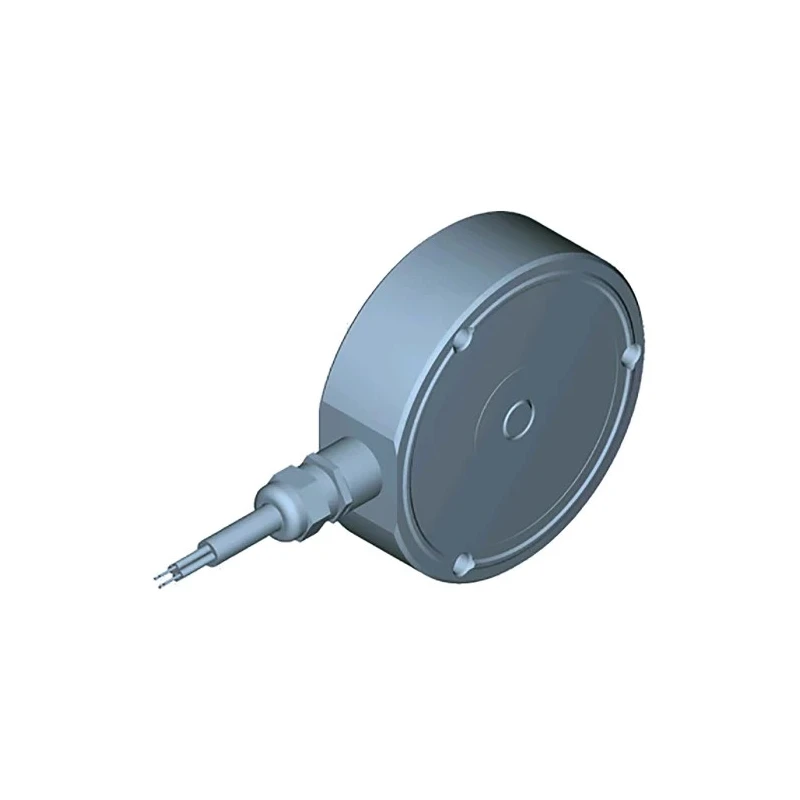

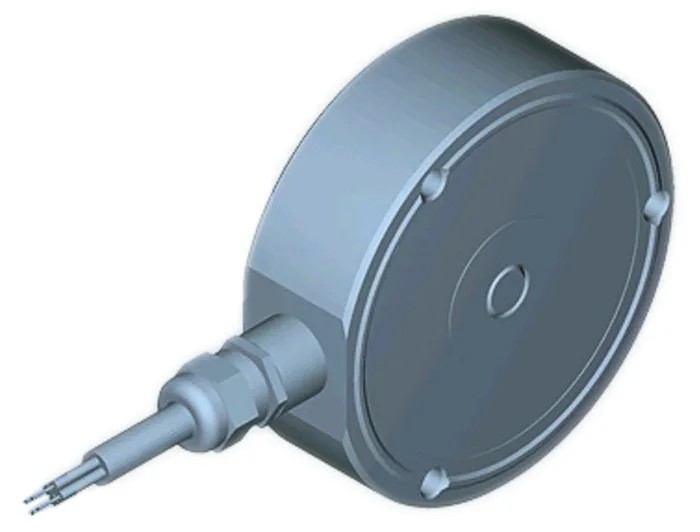

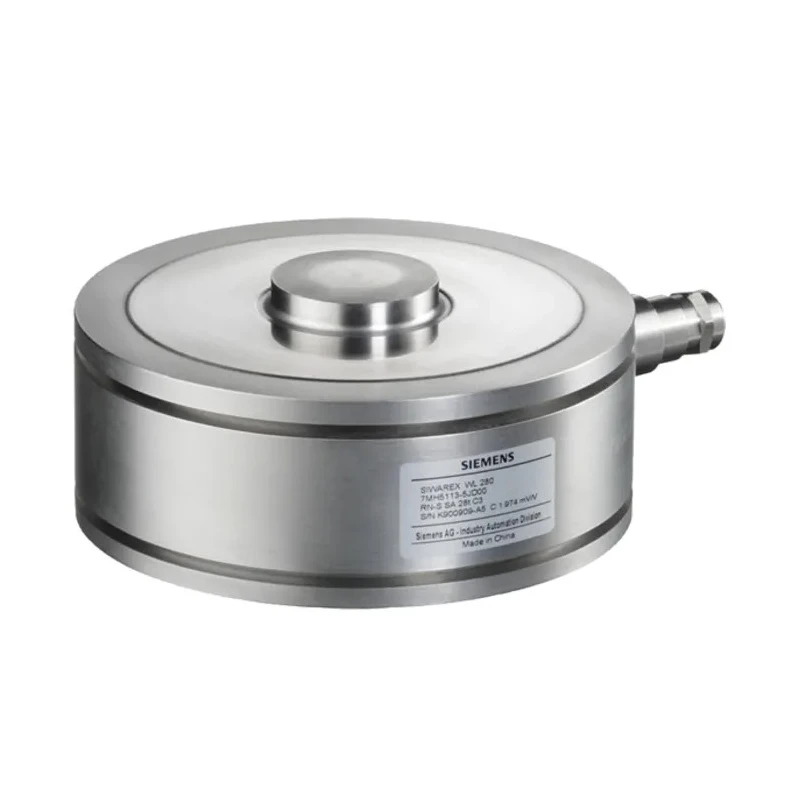

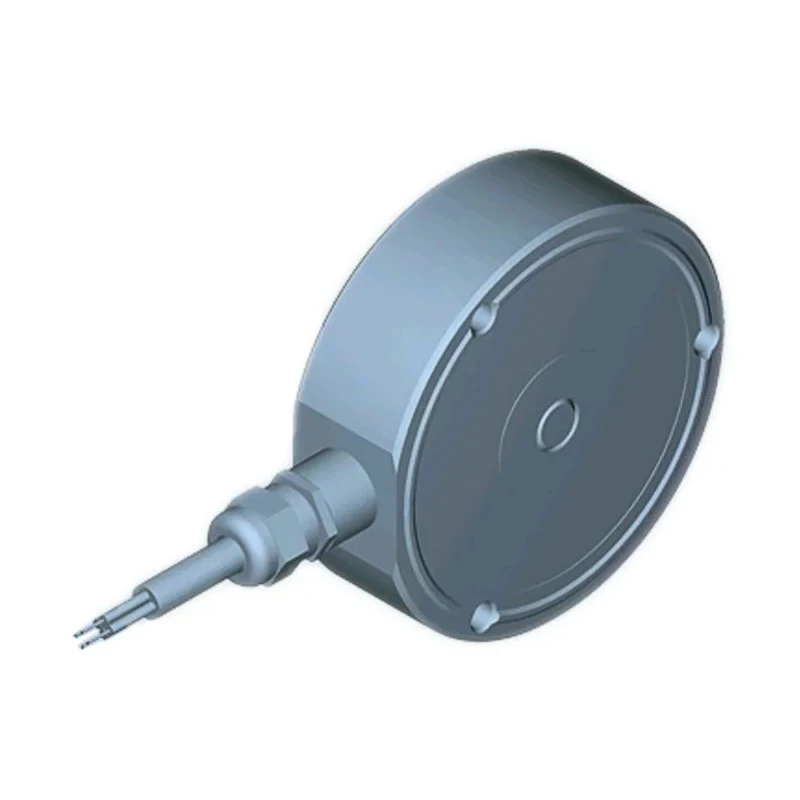

Siemens SIWAREX WL Series Load Cell Compression Force Measurement 5t Stainless Steel Housing 7MH5113-4PD00
Specifications
| Country of Origin | China |
|---|---|
| Brand | Siemens |
| Length | 24mm |
| Model | 7MH5113-4PD00 |
| Depth | 24mm |
| IP Rating | IP68, IP66 |
| Width | 24mm |
| Housing Material | Stainless Steel |
| Series | SIWAREX WL |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -35°C |
| Terminal type | Screw |
| Maximum dc Voltage | 15V dc |
| Standards/Approvals | OIML R60 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 5t |
Key Features
- This load cell offers precise compression force measurement suitable for industrial applications.
- Constructed with durable stainless steel housing for corrosion resistance.
- Rated IP66 and IP68 for protection against dust and water ingress.
- Compact design with dimensions 24mm width, depth, and length forming an 80mm diameter form factor.
- Operates reliably in temperatures ranging from -35°C to 70°C.
- Includes screw terminal type for stable electrical connections.
- Complies with OIML R60 standards ensuring measurement accuracy at ±0.02%.
- Designed for seamless integration in automated weighing systems and material testing.
Product Description
Siemens 7MH5113-4PD00 SIWAREX WL Series Load Cell is designed specifically for precise compression force measurements up to 5 tons. The sensor features a robust stainless steel housing, offering excellent corrosion resistance, making it ideal for demanding industrial environments.
The load cell benefits from an IP66 and IP68 rating, providing strong protection against dust and water, allowing reliable operation even in harsh outdoor or industrial conditions. Its compact dimensions of 24mm width, depth, and length with an 80mm diameter design enable easy integration where space is limited.
Operational temperature range spans from -35°C to +70°C, supporting diverse environmental applications. The device uses screw type terminals for secure electrical connections, compatible with Siemens load cell technologies and industrial automation systems.
This model conforms to OIML R60 standards, delivering high accuracy of ±0.02%, which is critical for sensitive force measurement tasks in automated weighing systems, material testing, and machinery load evaluation. The maximum rated DC voltage is 15V, ensuring safe electrical parameters.
This load cell offers precise compression force measurement suitable for industrial applications. Constructed with durable stainless steel housing for corrosion resistance. Rated IP66 and IP68 for protection against dust and water ingress.
Compact design with dimensions 24mm width, depth, and length forming an 80mm diameter form factor. Operates reliably in temperatures ranging from -35°C to 70°C. Includes screw terminal type for stable electrical connections.
Complies with OIML R60 standards ensuring measurement accuracy at ±0.02%. Designed for seamless integration in automated weighing systems and material testing. Maximum direct current voltage rating of 15V DC for safe operation.
Ideal for a variety of industrial sectors including manufacturing, automation, laboratory testing, and heavy machinery force evaluation. EnvMart offers a comprehensive range of sensors and Load Cells including the Siemens SIWAREX WL Series for professionals requiring precision measurement solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can measure compression forces up to 5 tons.
It has compact dimensions of 24mm in width, depth, and length, with an overall diameter of 80mm.
It operates reliably in temperatures ranging from -35°C to +70°C.
It includes screw terminal type connections for stable electrical integration.
This load cell is rated IP66 and IP68, providing protection against dust and water ingress.
It complies with OIML R60 standards, ensuring measurement accuracy at ±0.02%.
The housing is constructed from stainless steel, providing corrosion resistance.
It is suitable for automated weighing systems, material testing, and machinery load evaluation.
The maximum direct current voltage rating is 15V DC.
It is designed specifically for measuring compression forces.
The weight is not specified in the provided information.
The compact design allows for easy integration in spaces where size is limited.
