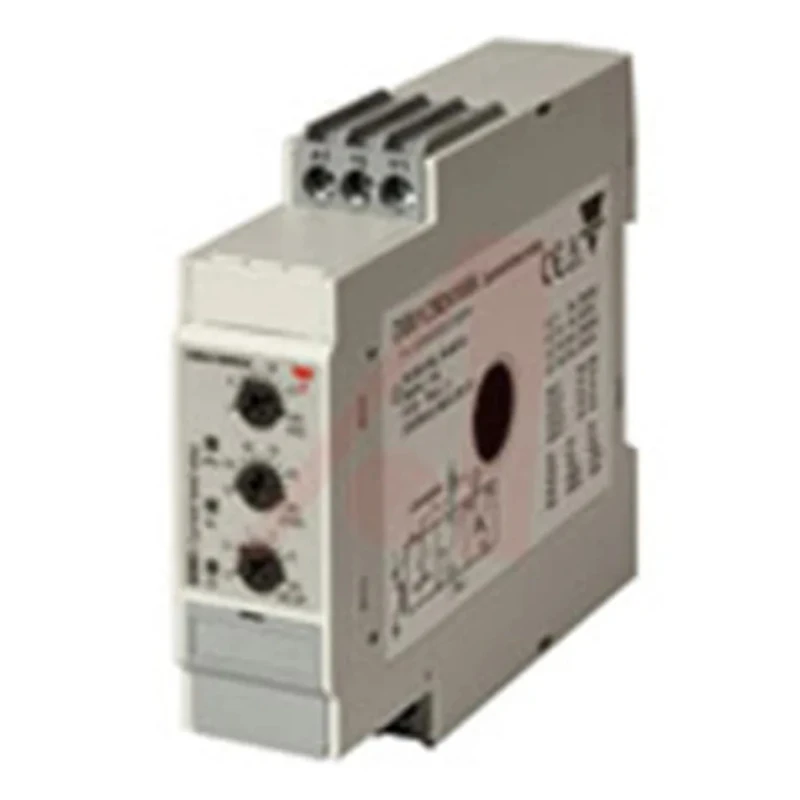

Carlo Gavazzi Monitoring Relay, 1 Phase, SPDT, DIN Rail Mount, 2A to 100A Range, 24 V dc / 24, 240 V ac DIB01CM24100A
Specifications
| Country of Origin | Italy |
|---|---|
| Output | 8 A SPDT relay normally de-energized |
| Brand | Carlo Gavazzi |
| Height | 80mm |
| Length | 99.5mm |
| Model | DIB01CM24100A |
| Width | 22.5mm |
| Mount Type | DIN Rail |
| Series | DIB01 |
| Measuring ranges | 2 to 20 VAC/DC, 5 to 50 VAC/DC |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | +60°C |
| Terminal type | Screw |
| Electrical Phase | 1 |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24, 240V ac |
| Minimum Current Sensed | 2A |
| Maximum Current Sensed | 100A |
| Current Sensitivity | Overcurrent |
| Relay Contact Current | 8A |
Key Features
- This relay supports supply voltage of 24 V dc and 24 V or 240 V ac.
- Features an 8 A contact current rating with screw terminal connections.
- Equipped with a built-in latch function and red LED alarm indication.
- Adjustable voltage limit and hysteresis with DIP switches for measuring ranges.
- Suitable for industrial, automation, and electrical panel applications.
- Complies with UL EN 61000-6-2, IEC 60947, CSA, and RoHS standards.
- Compact dimensions of 99.5 mm length, 22.5 mm width, and 80 mm height.
- Operating temperature range up to 60°C for reliable performance.
Product Description
Carlo Gavazzi DIB01CM24100A is an advanced monitoring relay designed for single-phase electrical systems, featuring SPDT contact configuration and DIN rail mounting for easy integration in industrial and automation control panels. It operates within current sensing ranges from 2A to 100A, with supply voltages supported at 24 V dc, and 24 or 240 V ac, offering versatile application across various electrical installations.
The relay includes a built-in latch function to maintain relay output status on activation, with a red LED indicator clearly displaying alarm conditions. Users can program the voltage limit and hysteresis via DIP switches, enabling precise monitoring and protection against overvoltage and overcurrent conditions. It supports multiple measuring ranges from 2 to 20 VAC/DC up to 50 to 500 VAC/DC, suitable for complex electrical environments.
Designed for robust industrial use, the relay complies with international standards including UL EN 61000-6-2, IEC 60947, CSA, and RoHS, ensuring safe and reliable operation. The unit features screw terminals for secure connections and compact dimensions (99.5 mm x 22.5 mm x 80 mm) that save panel space. It operates efficiently up to 60°C, making it suitable for many harsh industrial and commercial environments.
This monitoring relay is ideal for applications in industrial automation, electrical distribution, and control systems requiring accurate current and voltage fault detection. Its durable design and compliance certifications make it suitable for installation in HVAC, manufacturing processes, water treatment plants, and other electrical monitoring scenarios.
This relay supports supply voltage of 24 V dc and 24 V or 240 V ac. Features an 8 A contact current rating with screw terminal connections. Equipped with a built-in latch function and red LED alarm indication. Adjustable voltage limit and hysteresis with DIP switches for measuring ranges.
Suitable for industrial, automation, and electrical panel applications. Complies with UL EN 61000-6-2, IEC 60947, CSA, and RoHS standards. Compact dimensions of 99.5 mm length, 22.5 mm width, and 80 mm height. Operating temperature range up to 60°C for reliable performance.
Discover more Monitoring Relay solutions and related electrical components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This monitoring relay can sense currents from a minimum of 2A to a maximum of 100A.
It supports supply voltages of 24 V dc, as well as 24 V ac and 240 V ac.
The relay features a single-pole double-throw (SPDT) contact configuration.
The relay has compact dimensions of 99.5 mm in length, 22.5 mm in width, and 80 mm in height.
It can operate efficiently at temperatures up to 60°C.
This model features screw terminals for secure connections.
The relay contact has a current rating of 8 A.
The voltage limit and hysteresis can be adjusted using DIP switches on the relay.
It complies with UL EN 61000-6-2, IEC 60947, CSA, and RoHS standards.
It is suitable for industrial automation, electrical distribution, and control systems requiring accurate current and voltage fault detection.
This monitoring relay is designed for DIN rail mounting, facilitating easy integration into control panels.
It supports measuring ranges from 2 to 20 VAC/DC and 5 to 50 VAC/DC.
