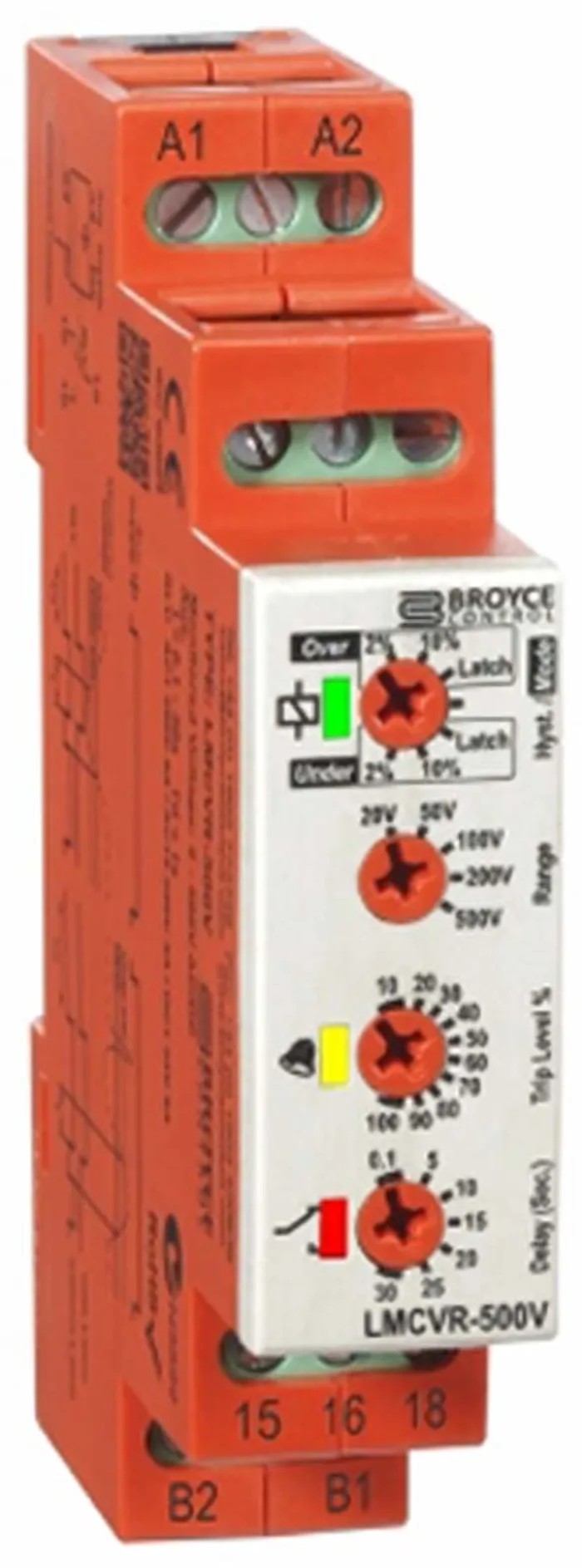

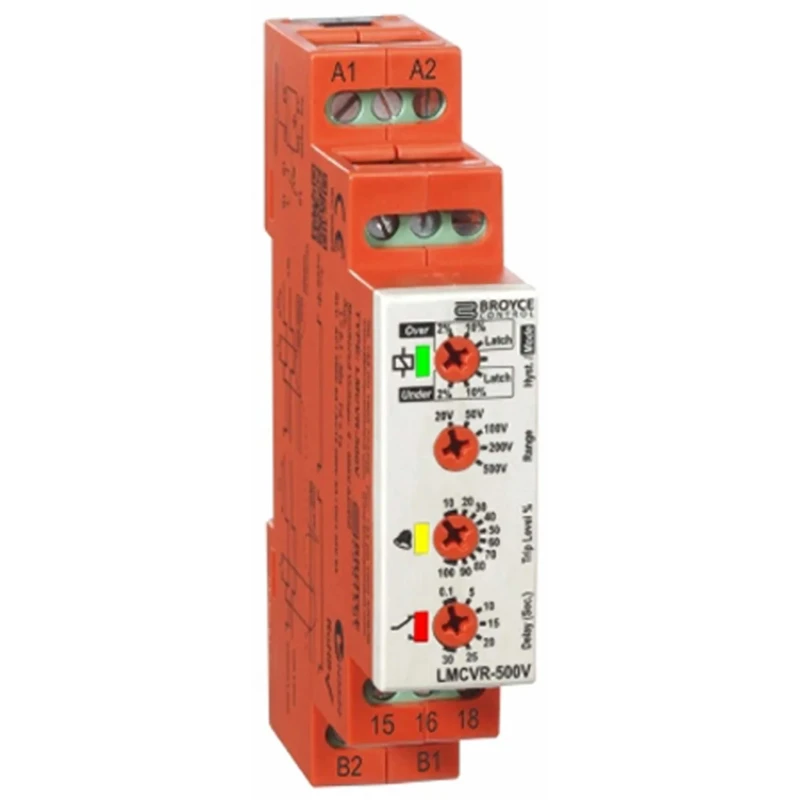

Broyce Control Monitoring Relay 3 Phase, 0.1 → 20 V AC/DC Monitor Range, SPDT Contact, DIN Rail LMCVR-20V 24-230VAC/DC

Broyce Control LMCVR-20V 24-230VAC/DC monitoring relay is designed for three-phase electrical systems to provide precise voltage monitoring within a 0.1 to 20 V AC/DC range. This device features a single pole double throw (SPDT) contact configuration and mounts easily on DIN rails, making it ideal for integration into industrial electrical control panels.

It operates with a supply voltage of 230V AC or 25 V AC DC, consuming only 1.4 VA of power, and utilizes screw terminals for reliable wiring connections. The relay supports switching voltages up to 250V AC and can handle a maximum contact current of 8 amperes, suitable for controlling a wide range of electrical loads.

With IP20 ingress protection rating, it is protected against solid objects larger than 12mm, and it is engineered to operate in ambient temperatures ranging from +60°C to 60°C. The relay's compact footprint, with dimensions measuring 17.5 mm width, 89 mm height, and 66.5 mm length, ensures efficient use of space within DIN rail enclosures.

This microprocessor-based relay incorporates true RMS voltage monitoring technology to provide accurate and stable readings under varying electrical conditions. A green LED indicator shows the supply status clearly, enhancing user feedback during operation.

The Broyce Control L Series relays comply with important international standards including CE, EN 61000-6-4 for electromagnetic compatibility, IEC standards, RoHS for hazardous substances restriction, and UL approvals, ensuring safety and reliability in industrial environments.

Manufactured in the United Kingdom, this relay assures European build quality and is well-suited for use in industrial automation, process control, electrical cabinets, and HVAC systems requiring precise voltage monitoring and switching capabilities.

Operates with a supply AC voltage of 230V AC and DC voltage of 25 V AC. Equipped with a 1.4 VA power consumption and screw terminal type connections. Supports switching voltage up to 250V AC with a maximum contact current of 8A.

Designed with IP20 ingress protection and an operating temperature range of +60°C to 60°C. Compact dimensions: width 17.5mm, height 89mm, and length 66.5mm suitable for DIN rail installations. Microprocessor-based true RMS voltage monitoring for accuracy.

Green LED indication for supply status and single SPDT relay output. Certified compliant with CE, EN 61000-6-4, IEC, RoHS, UL, and EN 61000-6-2 standards. Manufactured in the United Kingdom ensuring high quality standards.
