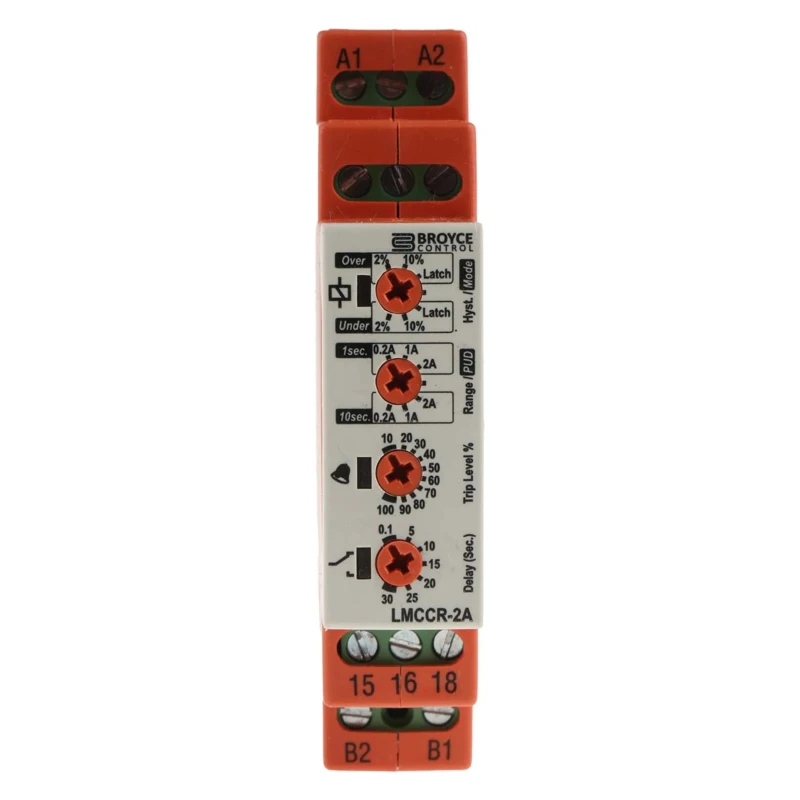

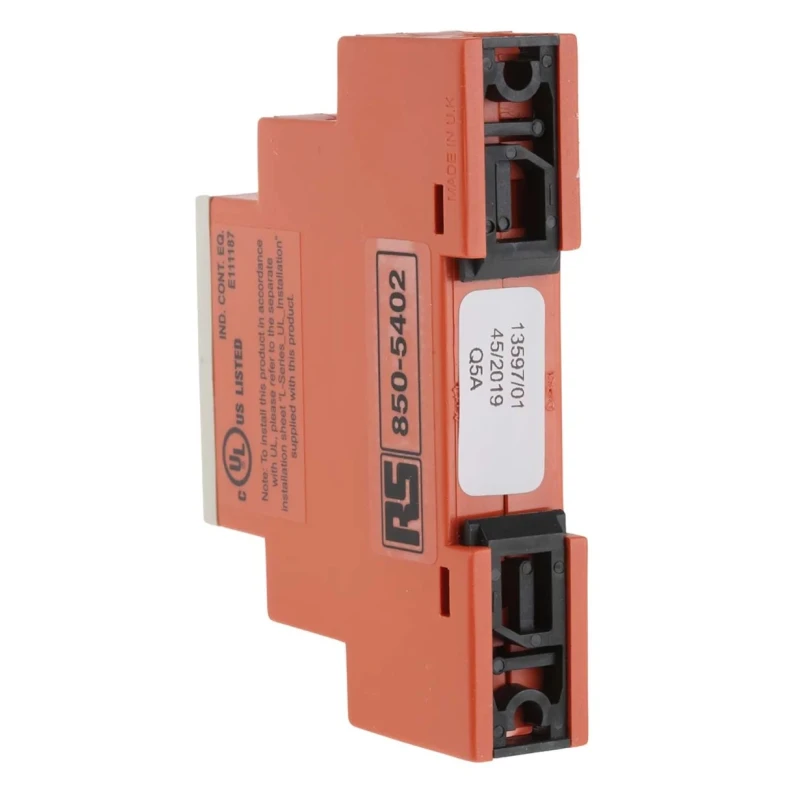

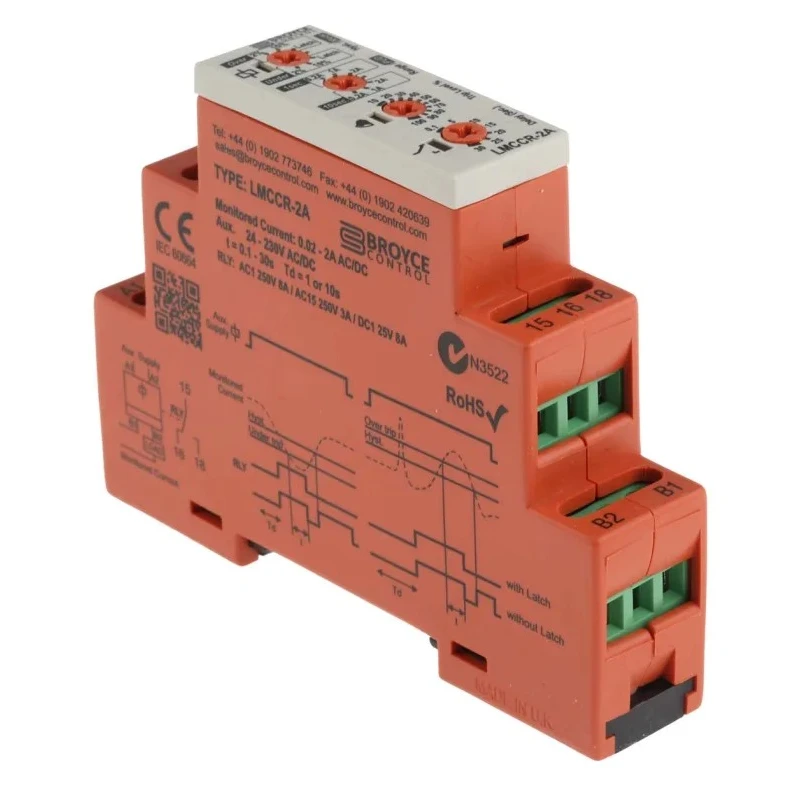

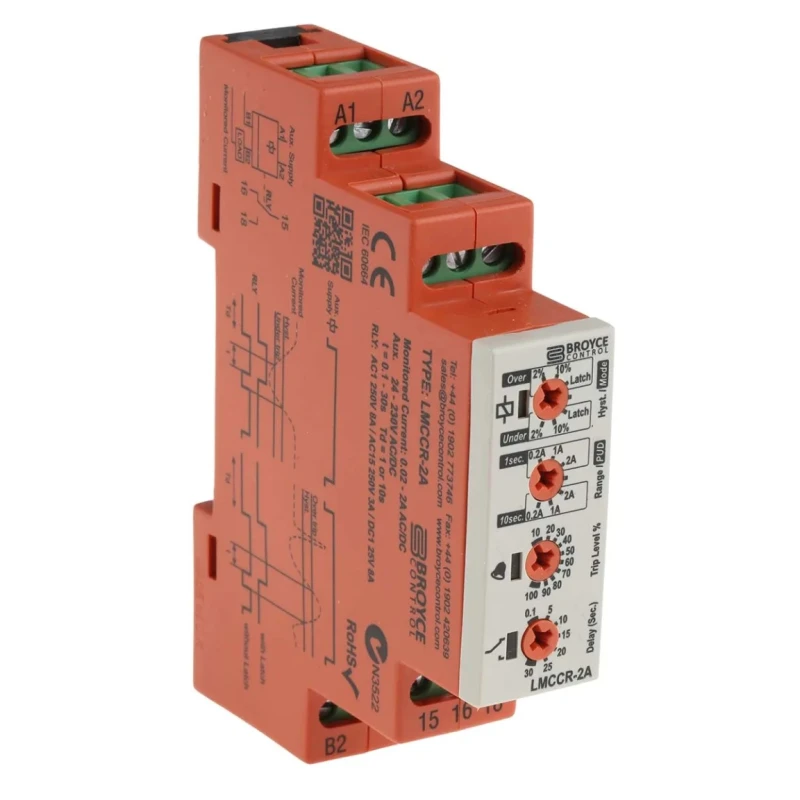

Broyce Control Monitoring Relay 3 Phase SPDT DIN Rail Mount, 0.02A Sensitivity, 25 V AC/DC, 230V AC LMCCR-2A 24-230VAC/DC

Broyce Control LMCCR-2A 24-230VAC/DC monitoring relay is a high-precision, microprocessor based device designed for three-phase electrical monitoring applications. Featuring a single pole double throw (SPDT) relay output rated at 8A, this relay supports isolated auxiliary supply voltages from 24 V AC/DC to 230 V AC, ensuring versatile integration in various industrial environments.

This device utilizes True Root Mean Square (R.M.S.) monitoring technology for accurate current sensing with a minimum sensitivity of 0.02A. It offers user adjustable time delay settings ranging from 0.1 to 30 seconds, allowing precise control over protection and signaling functions in electrical circuits.

The LMCCR series relays are housed in a compact 17.5 mm wide DIN rail mount enclosure, facilitating straightforward installation within electrical control panels. The device operates reliably in ambient temperatures up to 60°C and features screw terminals providing secure wiring connections.

Equipped with a green LED that indicates supply status, the relay enhances operational transparency and aids diagnostics in automation and safety systems. Its IP20-rated enclosure provides basic protection suited for indoor industrial use.

Certified to multiple international standards including CE, UL, IEC, EN 61000-6-2, EN 61000-6-4, and RoHS, it assures compliance with stringent electromagnetic compatibility and safety requirements.

This monitoring relay is ideal for use in industrial process control, automation systems, electrical protection devices, and building management systems where reliable phase monitoring and control is critical.

Microprocessor based True R.M.S. monitoring provides high accuracy. Supports isolated auxiliary supply voltages from 24 to 230 V AC/DC. Single SPDT relay output rated at 8A enables versatile control functionality. User adjustable time delay from 0.1 to 30 seconds for customizable operation.

Compact DIN rail mount design measuring 17.5 mm width. Operating temperature range up to 60°C for stable performance. Green LED indicates supply status for easy monitoring. Compliance with CE, UL, IEC, EN standards, and RoHS directive.

Screw terminal connections ensure reliable wiring. Suitable for industrial, automation, and process control applications.

Choose this Broyce Control LMCCR-2A 24-230VAC/DC monitoring relay for precise three-phase current monitoring and dependable operational safety in industrial and automation control systems. Explore more relays and electrical components in the Electronics & Electricals > Relays & Contactors > Monitoring Relay category at EnvMart.
