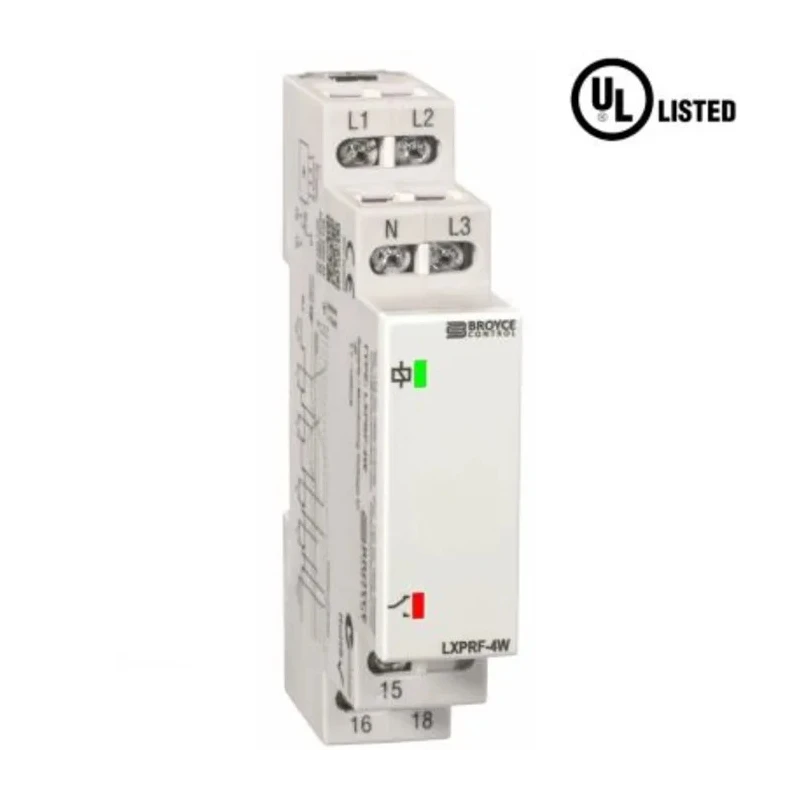

Broyce Control Monitoring Relay 3 Phase 230/400 V AC SPDT DIN Rail Mount LXPRF-4W 230V (400V)

Broyce Control LXPRF-4W 230V (400V) monitoring relay is a microprocessor-controlled device designed for three-phase AC voltage monitoring applications in industrial and commercial electrical panels. It is engineered to measure phase-to-phase voltages within a monitoring range of 230/400 V AC, providing protective functions against voltage anomalies.

The relay features a single pole double throw (SPDT) contact rated for 8 A, suitable for switching control circuits. Its compact DIN rail mount housing, measuring 89mm in height, 66.5mm in length, and 17.5mm in width, facilitates easy integration into standard electrical enclosures without occupying excessive space.

Equipped with screw terminals, the device ensures secure and dependable electrical connections. The monitoring relay includes visual indicators with a green LED signifying supply power presence and a red LED indicating relay activation status, aiding quick diagnostics during operation.

Operating within a temperature range up to 60°C and designed with an IP20 rating, the relay is suited for protected indoor environments. Compliance with international standards such as IEC, RoHS, EN 61000-6-4, CE, and UL EN 61000-6-2 confirms its quality and adherence to electromagnetic compatibility requirements.

This LX series model, manufactured in the United Kingdom, integrates latest microprocessor technology delivering reliable voltage monitoring for industrial process control, electrical distribution panels, automation systems, and safety relay functions.

Designed for 3 phase electrical systems with monitoring voltage range of 230/400 V AC. Features a SPDT (single pole double throw) relay contact rated at 8 A. DIN rail mounting ensures easy and secure installation in control panels.

Operating temperature range allows use in environments up to 60°C. Equipped with screw terminals for reliable electrical connections. Microprocessor-based technology provides precise phase to phase voltage measurement. Includes green LED indicator for supply status and red LED for relay status.

Compact dimensions: 89mm height, 66.5mm length, and 17.5mm width for space-saving installations. Conforms with IEC, RoHS, EN 61000-6-4, CE, and UL EN 61000-6-2 standards for safety and performance.

The Broyce Control LXPRF-4W 230V (400V) Monitoring Relay is ideal for industrial automation, electrical control, power distribution, and monitoring applications requiring precise, reliable, and compact relay solutions. It supports enhanced protection and control within complex electrical systems.
