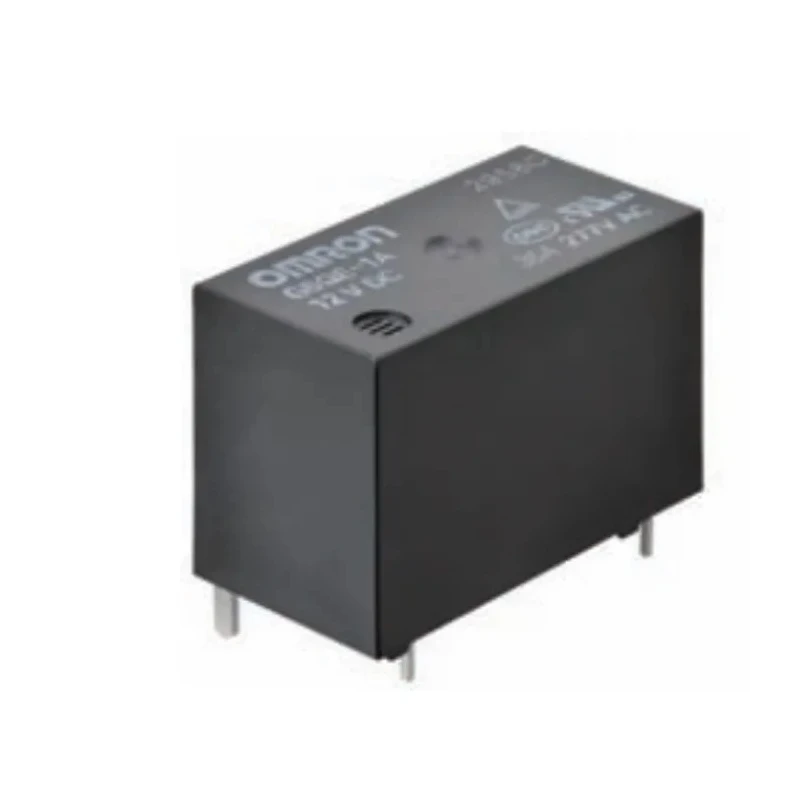

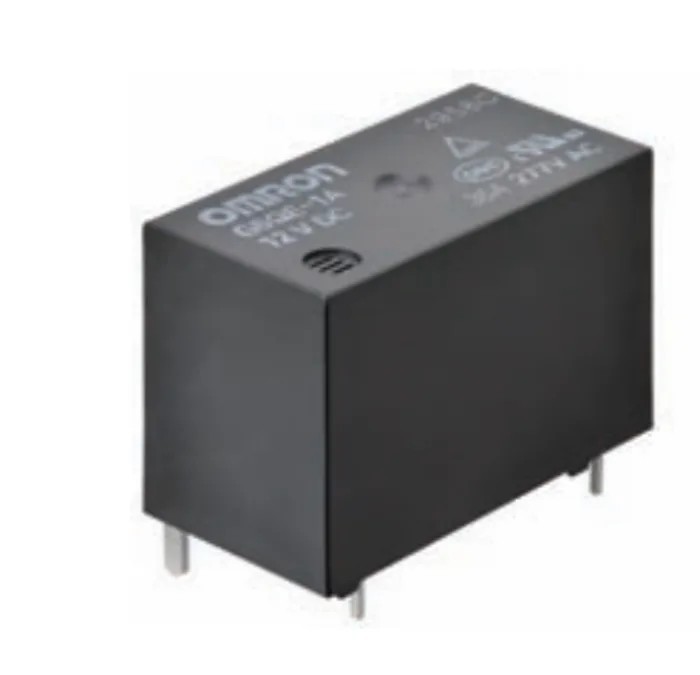

Omron PCB Power Relay 5V DC Coil 36A Switching Current SPST G6QE-1A DC5

Omron G6QE-1A DC5 PCB Power Relay is a miniature and low-height power relay optimized for PCB mounting applications. It features a coil voltage of 5V DC and supports a high switching current of 36A, making it suitable for robust electrical switching tasks in industrial automation, electronics, and power control systems.

The relay uses a single-pole single-throw (SPST) contact configuration with silver alloy contacts, offering a contact resistance of only 100mΩ to ensure efficient electrical conduction with minimal loss. The design includes PCB pin terminals for secure and stable mounting on printed circuit boards.

Its compact size of 30.5mm length, 16mm width, and 20.5mm height enables easy integration into densely packed electronic assemblies. The coil has a resistance of 17.9Ω and consumes 1.4W of power, reflecting energy efficiency in coil operation. The device withstands operating temperature extremes from -40°C up to 85°C, making it versatile for many industrial, commercial, and HVAC applications.

The G6QE-1A DC5 model has been tested for high endurance, achieving 10,000 operations at a high switching current of 36A at 250VAC and up to 100,000 operations at 30A at 250VAC. This durability ensures long service life in demanding applications.

Additionally, the relay boasts an impressive 10-kV impulse withstand voltage between coil and contacts for enhanced reliability and safety under transient voltage conditions. The power consumption of the coil is reduced to 12% by lowering the applied voltage after initial activation, promoting energy savings.

The product complies with RoHS environmental standards, highlighting its eco-friendly manufacturing and usage. Made in China, this Omron power relay is a dependable choice for electrical engineers, system integrators, and industrial designers requiring compact, reliable relays for power switching tasks.

This power relay supports single-pole single-throw (SPST) contact configuration. Operates at a coil voltage of 5V DC with coil resistance of 17.9Ω. Capable of handling a switching current of up to 36A and switching AC voltage up to 277V AC.

Compact dimensions with length 30.5mm, width 16mm, and height 20.5mm for space-efficient PCB integration. Features silver alloy contacts with contact resistance of 100mΩ ensuring reliable electrical performance. Designed to operate in temperature ranges from -40°C to 85°C, suitable for diverse industrial environments.

Achieves high durability with 10,000 operations at 36A@250VAC, and 100,000 operations at 30A@250VAC. Compliance with RoHS standards ensuring environmental safety and regulatory adherence. Manufactured in China maintaining high-quality standards.
