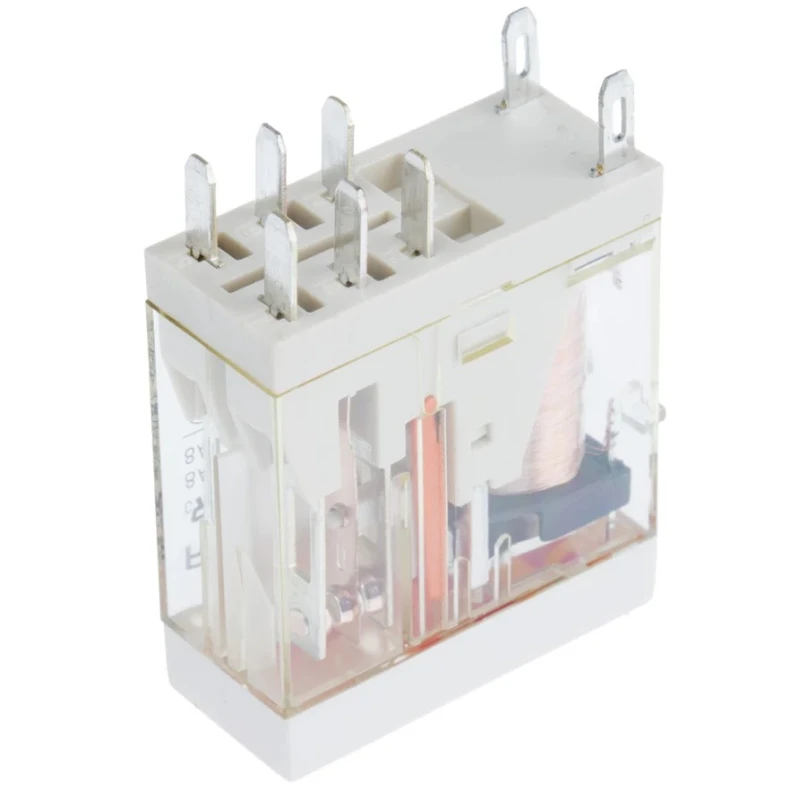

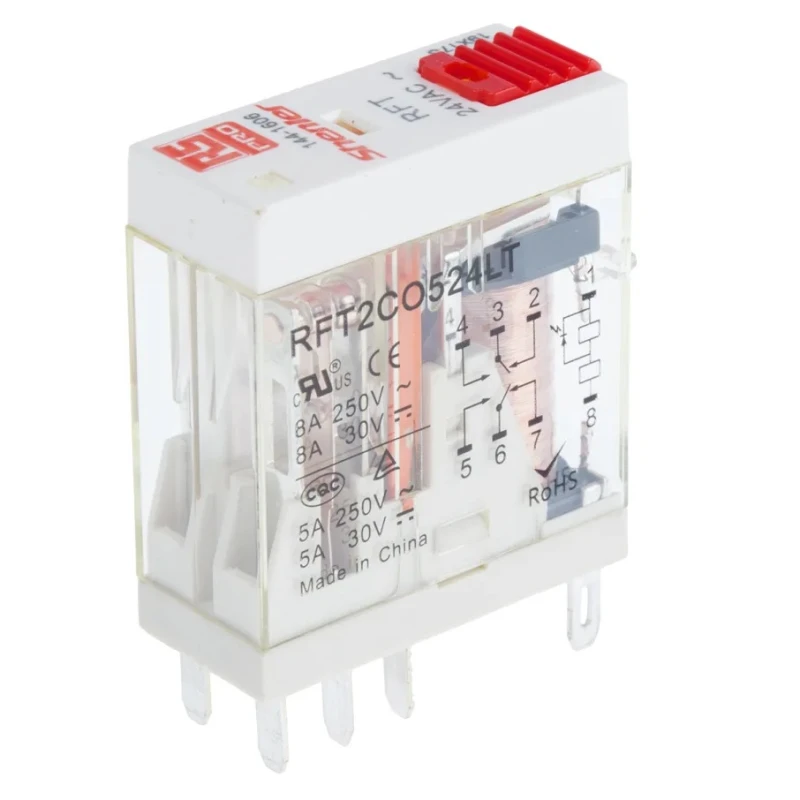

RS PRO Power Relay 24V AC Coil 8A Switching Current DPDT 144-1606
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 28mm |
| Length | 29mm |
| Model | 144-1606 |
| Width | 12.6mm |
| Contact Material | Silver Alloy |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 240Ω |
| Coil Voltage | 24V ac |
| Switching DC Voltage | 30V dc |
| Switching AC Voltage | 250V |
| Coil Power | 530mW |
Key Features
- Offers reliable switching current of 8 amperes for industrial use.
- Silver alloy contacts provide low contact resistance of 50 milliohms.
- Designed for a wide operating temperature range from -40°C to 55°C.
- Coil resistance is 240 ohms with a coil power consumption of 530 mW.
- Suitable for switching AC voltages up to 250V and DC voltages up to 30V.
- Compliance with RoHS standards ensures environmental safety.
- Ideal for industrial, automation, HVAC, and machine building applications.
Product Description
RS PRO 144-1606 Power Relay features a 24V AC coil and DPDT (Double Pole Double Throw) contact configuration with a switching current rating of 8A, making it suitable for a broad range of industrial automation and electrical applications. The relay is compact with dimensions of 29mm in length, 28mm in height, and 12.6mm in width, enabling installation in restricted spaces.
Constructed with silver alloy contacts, it ensures low contact resistance of 50 milliohms for efficient electrical conduction. The coil resistance is 240 ohms consuming a coil power of only 530 milliwatts, promoting energy efficiency. Additionally, it supports switching AC voltages up to 250V and DC voltages up to 30V, broadening its versatility in various electrical circuits.
Operating temperature ranges from -40°C to 55°C, making it reliable even in extreme environments. The RS PRO 144-1606 meets RoHS compliance for ecological safety.
This power relay is ideal for use in industrial equipment, machine building, automation systems, HVAC control, and signal conditioning applications. The product is part of the RS PRO series known for high-capacity and reliable relays.
Reliable switching current of 8A with DPDT configuration. Compact dimensions optimize space utilization in panel assemblies. Silver alloy contacts with low contact resistance enhance performance. Wide operational temperature range supports diverse environments.
Energy-efficient coil with 240Ω resistance and 530mW power consumption. Supports AC switching up to 250V and DC switching up to 30V. RoHS compliant for reduced environmental impact. Made in China. Explore our extensive range of Power Relays at EnvMart to find the right components for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This power relay has a switching current rating of 8A, making it suitable for various industrial applications.
The coil voltage for this model is 24V AC, which is necessary for its operation.
The relay measures 29mm in length, 28mm in height, and 12.6mm in width, allowing for installation in compact spaces.
It supports switching AC voltages up to 250V and DC voltages up to 30V, providing versatility in electrical circuits.
The relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for flexible circuit design.
The contact resistance is 50 milliohms, which ensures efficient electrical conduction.
The operating temperature range is from -40°C to 55°C, making it suitable for extreme environments.
This relay uses PCB pin terminals for easy integration into circuit boards.
The coil resistance is 240 ohms with a power consumption of 530 milliwatts, promoting energy efficiency.
Yes, it is compliant with RoHS standards, ensuring reduced environmental impact.
The contacts are made of silver alloy, which contributes to low contact resistance and efficient performance.
It is ideal for use in industrial equipment, automation systems, HVAC control, and signal conditioning applications.
