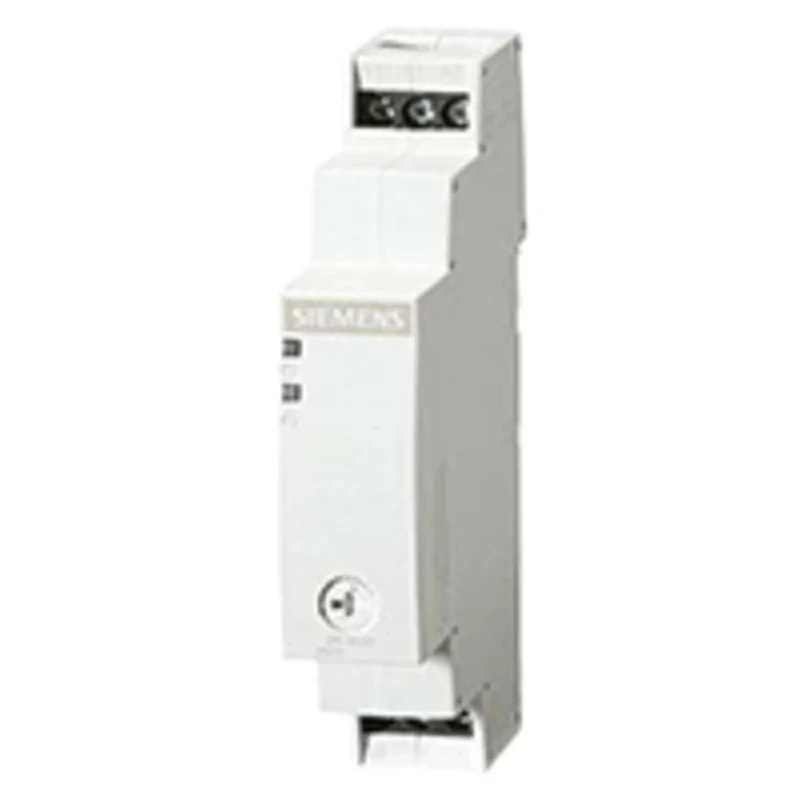

Siemens SIRIUS Series DIN Rail Timer Relay, 1-Contact, SPDT Switch, 24 V dc, 100 V ac, 127 V ac, Time Range 7PV1512-1AQ30

Siemens 7PV1512-1AQ30 DIN Rail Timer Relay is a solid-state timing relay from the SIRIUS series, specifically designed for industrial automation, electrical control, and time delay switching applications. It includes a single SPDT contact configured for on-delay operation controlled by a rotary switch on the front panel. The timer range is adjustable between 0.5 to 10 seconds, enabling precise timing control in circuits.

This relay supports a broad voltage range with supply voltages of 24 V dc and 100 to 127 V ac. It is mounted easily on standard DIN rails, measuring 17.5 mm in width, 90.5 mm in length, and 67 mm in height. The integrated LED indicator provides clear feedback on the switch position and operational voltage status.

The design includes built-in surge suppression to protect reliable functionality in industrial environments. It is suitable for timing operations in functional buildings, airports, industrial plants, and other demanding settings. The relay supports a contact current rating of 3 A, and it operates within temperatures ranging from -25°C to 55°C, with IP20 and IP40 ratings for protection against dust and ingress.

Operates on 24 V dc and 100 to 127 V ac supply voltages. Single on-delay timer function for precise switching control. DIN rail mounting for secure and standardized installation. Rotary switch and LED for easy setting and status indication.

Integrated surge suppressor enhances durability and reliability. Rated contact current of 3 A for versatile electrical loads. Compact form factor with dimensions suitable for panel mounting. Suitable for various industrial, building automation, and control circuits.

Operating temperature range supports operation in diverse environments. Complies with CE standards and manufactured in the Czech Republic.

This Siemens DIN Rail Timer Relay combines reliability, compactness, and versatility, making it an ideal choice for automation and control systems requiring timed switching operations.
