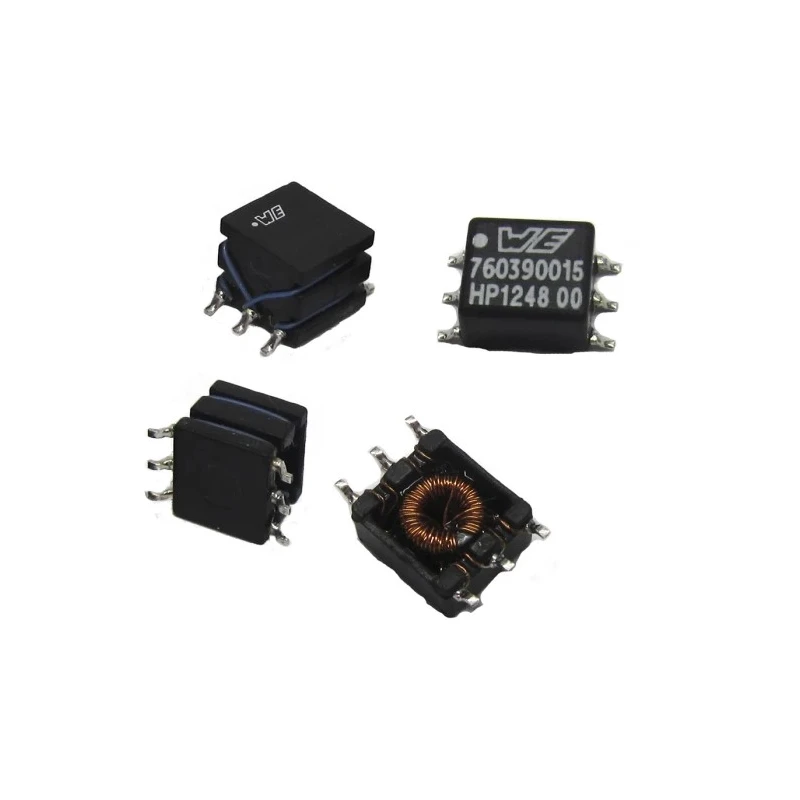

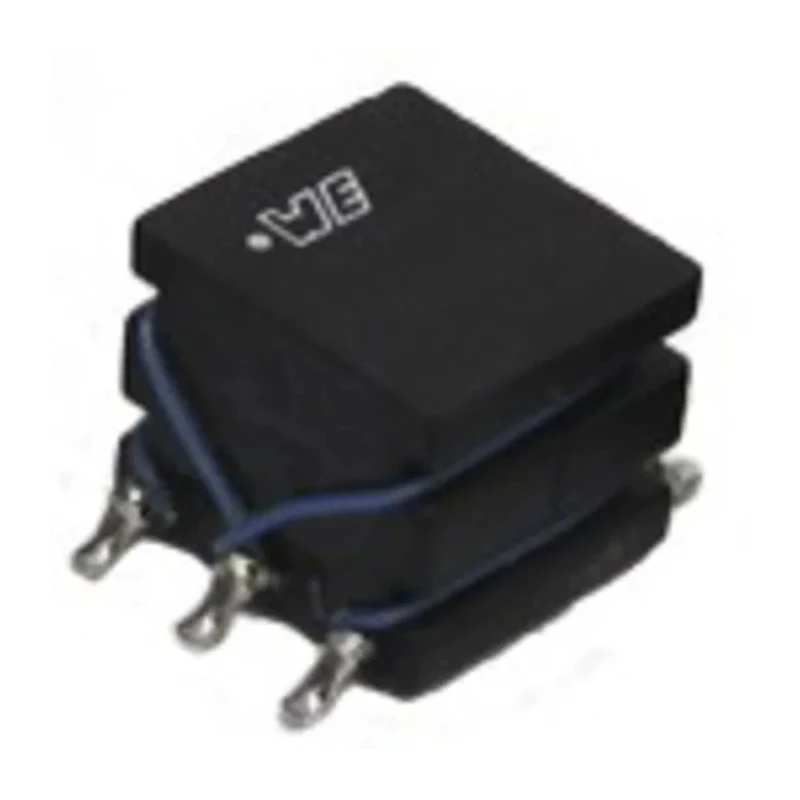

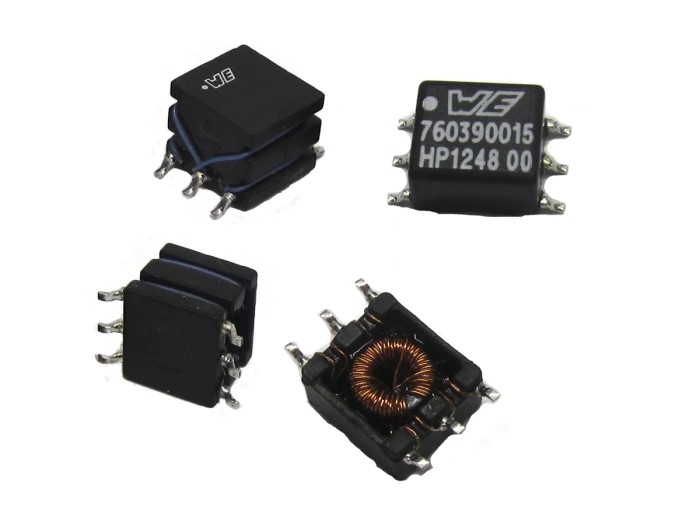

Wurth Elektronik 3.3 V 1 Output Surface Mount PCB Transformer IEC6681
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Length | 8mm |
| Model | IEC6681 |
| Depth | 9.14mm |
| Operating Temp | -40°C to 125°C |
| Width | 7.62mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | LAN |
| Number of outputs | 1 |
| Standards/Approvals | IEC6681, Free JEDEC JS709B, ASNZS668.1 and J6681, UL6681CSA6681, CSA, RoHS, REACH, IEC6180051, IEC606641, EN6681, cULus Approva |
| Number of Pins | 6 |
| Primary Voltage | 5 V dc |
| Secondary Voltage | 3.3 V |
| Minimum Operating Frequency | 250kHz |
| Maximum Operating Frequency | 550kHz |
| PCB Transformer Current | 350mA |
Key Features
- Designed for surface mount with a compact size of 8 mm x 7.62 mm x 9.14 mm.
- Operates efficiently within a temperature range of -40°C to 125°C.
- Supports frequencies between 250 kHz and 550 kHz for versatile use.
- 350 mA transformer current rating ensures reliable performance.
- Conforms to IEC6681, JEDEC JS709B, ASNZS668.1, UL6681, CSA, RoHS, REACH, and other global standards.
- Ideal for isolated interface power supplies for CAN, RS-485, RS-422, RS-232, SPI, I2C, and lower-power LAN applications.
- Suitable for industrial automation, process control, medical equipment, PLC modules, AC motor drives, UPS, solar inverters, energy meters, protection relays, and IEDs.
- Constructed for reliable, functional, supplementary, or reinforced insulation in demanding environments.
Product Description
Wurth Elektronik IEC6681 is a 3.3 V surface mount PCB Transformer featuring a single output designed for compact and efficient power supply solutions. Measuring 8 mm in length, 7.62 mm in width, and 9.14 mm in depth, this transformer supports a current of 350 mA and operates over a frequency range of 250 kHz to 550 kHz, making it suitable for a variety of industrial and electronic applications.
The robust construction supports operating temperatures from -40°C to 125°C, ensuring reliable performance in harsh environments. It meets numerous international standards, including IEC6681, JEDEC JS709B, ASNZS668.1, UL6681, CSA, RoHS, and REACH certifications.
This transformer is primarily used for isolated interface power supplies in communication protocols such as CAN, RS-485, RS-422, RS-232, SPI, and I2C, as well as lower-power LAN applications. Its small size and surface mount design facilitate PCB space saving and ease of integration.
Applications span across industrial automation, process control systems, medical equipment, programmable logic controllers (PLCs), AC motor drives, uninterruptible power supplies (UPS), solar inverters, polyphase energy meters, protection relays, and intelligent electronic devices (IEDs).
The IEC6681’s push-pull configuration is optimized for Texas Instruments devices, providing functional, supplementary, or reinforced insulation depending on application requirements.
Designed for compact surface mounting to optimize PCB layout. Wide operating temperature range supports diverse environmental conditions. Compliance with multiple international standards ensures global usability. High frequency operation for efficient power conversion.
Robust current rating enables reliable signal isolation and power delivery. Ideal for communication and industrial control interface power supplies. Manufactured in China with quality assurance for performance and durability.
Explore more transformers and electronic components for your projects at EnvMart to find the perfect fit for your industrial and electronic power needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates efficiently within a temperature range of -40°C to 125°C.
This model measures 8 mm in length, 7.62 mm in width, and 9.14 mm in depth.
The transformer has a current rating of 350 mA, ensuring reliable performance.
It is ideal for isolated interface power supplies for CAN, RS-485, RS-422, RS-232, SPI, I2C, and lower-power LAN applications.
It supports frequencies between 250 kHz and 550 kHz, allowing for versatile use in various applications.
It conforms to IEC6681, JEDEC JS709B, ASNZS668.1, UL6681, CSA, RoHS, and REACH, among other global standards.
This model is designed for surface mounting, optimizing PCB layout and space.
The primary voltage required for this transformer is 5 V DC.
This transformer features a single output.
It has a total of 6 pins.
It is suitable for applications in industrial automation, process control, medical equipment, PLC modules, AC motor drives, UPS, solar inverters, energy meters, protection relays, and intelligent electronic devices (IEDs).
The IEC6681 model is manufactured in China.
