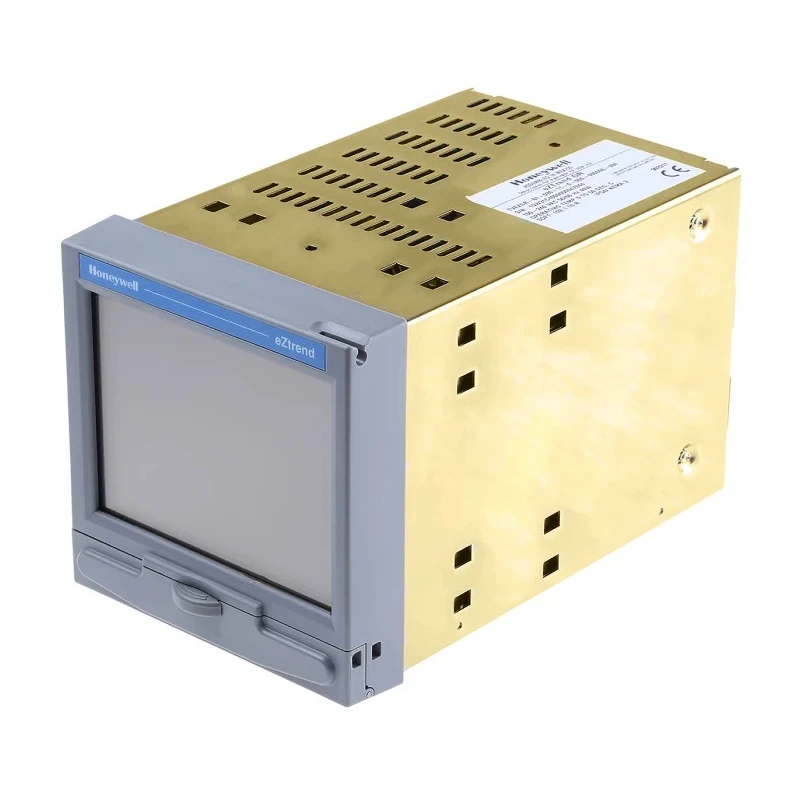

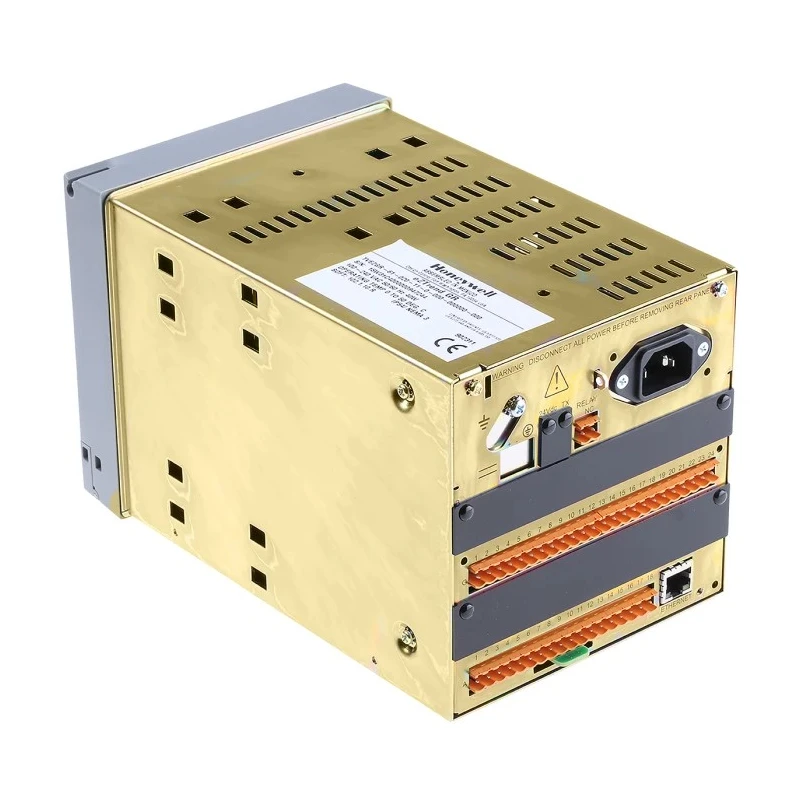

Honeywell Technologies 8-Channel Graphical Chart Recorder Current Resistance Temperature TVEZGR-61-020-11-0-000-000000-000

Honeywell TVEZGR-61-020-11-0-000-000000-000 is an advanced 8-channel graphical chart recorder designed for precise measurement and logging of current, resistance, temperature, and voltage signals. This electronic data recorder is a modern replacement for traditional 100 mm paper strip chart recorders, capturing continuous and batch data electronically in a secure digital format which enhances data integrity and eliminates interpolation errors when transferring data to spreadsheets for analysis.

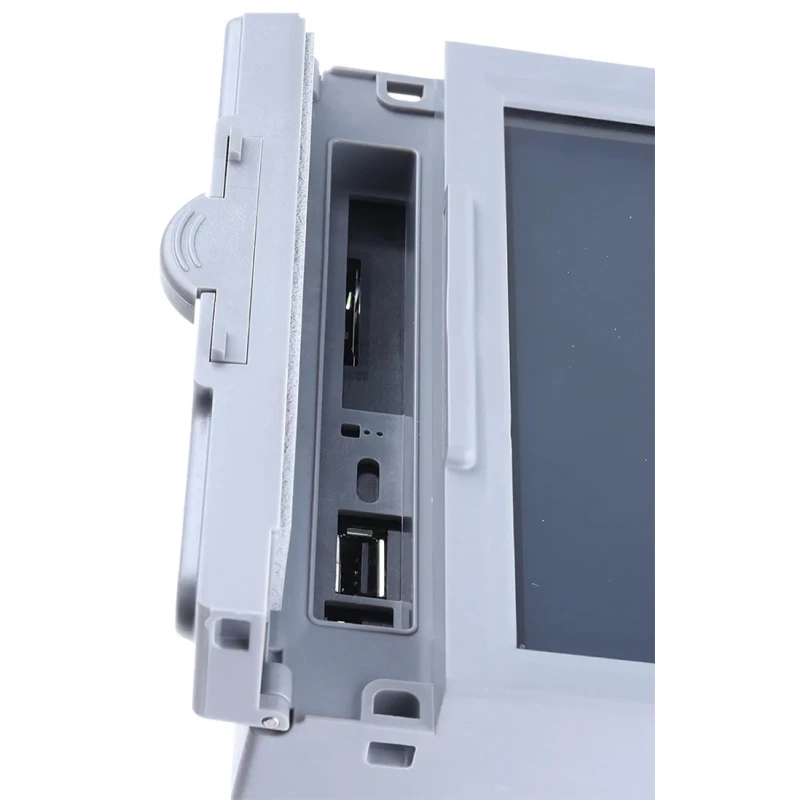

The device features a 5.7-inch digital color TFT LCD with a resolution of 320 by 240 pixels, providing clear and intuitive operation. Its industrial-grade rugged touch screen offers rapid navigation with no moving parts, leveraging solid-state Flash memory for increased durability and reliability. The front USB port facilitates connectivity with keyboard and mouse accessories, and removable USB storage allows easy data transfer.

This recorder comes with 1 GB of on-board non-volatile memory, supporting encrypted data files that can be securely accessed and analyzed only through Honeywell's TrendManager Pro software, assuring data confidentiality and accuracy. The Health Watch feature provides preventative maintenance notifications to minimize downtime. The system includes an Extended Security System (ESS), password protection, and allows independent chart and logging speeds for versatile operation.

Compactly sized at 200 mm length, 144 mm width, and 144 mm height, with a gross weight of 2.4 kg, it is CE compliant and made in Mexico, aligning with international standards for quality and safety. The USB interface supports easy integration into industrial, laboratory, HVAC, manufacturing, and water treatment applications.

The TVEZGR-61-020-11-0-000-000000-000 supports a variety of measurement parameters crucial for process control including current, resistance, temperature, and voltage, making it a versatile tool for continuous operational monitoring and data acquisition in demanding industrial environments.

Equipped with 8 input channels for diverse process monitoring. High accuracy of ±0.2 % and ±0.1 % to ensure reliable readings. Features a 5.7-inch digital color TFT LCD with 320 x 240 pixel resolution. Supports data recording in secured digital format eliminating interpolation errors.

Industrial rugged touch screen with rapid navigation and front USB port standard. 1 GB on-board non-volatile memory with removable USB storage capability. No moving parts, employing solid-state Flash memory for durability.

Health Watch system enables preventative maintenance alerts. Created encrypted data files compatible with TrendManager Pro software. Complies with CE standards and manufactured in Mexico. Explore more innovative measuring and testing instruments including Chart Recorders and data acquisition devices at EnvMart for reliable industrial and laboratory applications.
