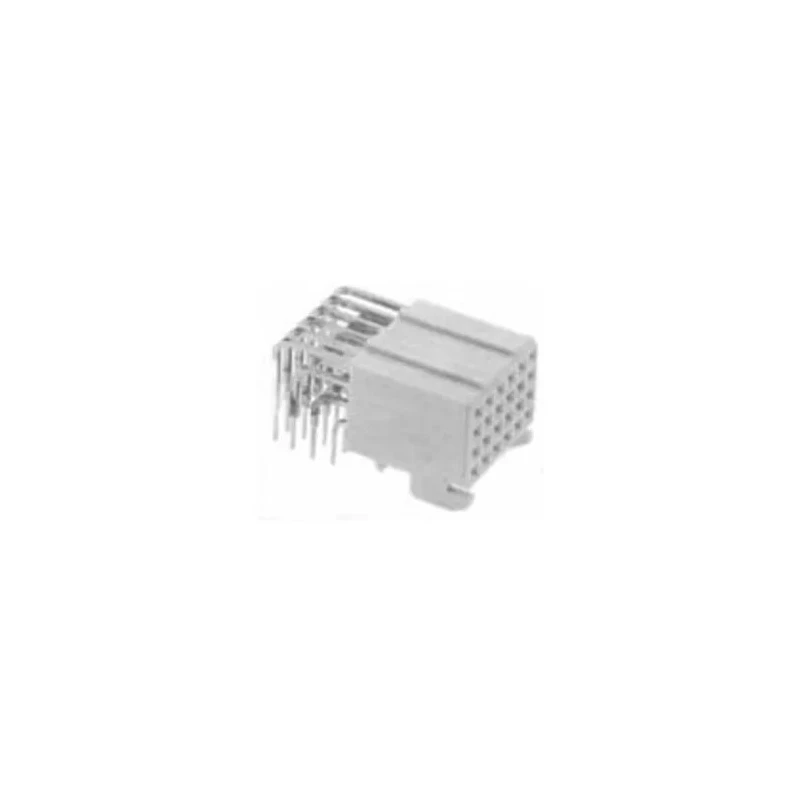

Amphenol Communications Solutions Metral 2 mm Pitch Right Angle Receptacle Backplane Connector Vertical HM1F43TAP000H6LF

Amphenol Communications Solutions HM1F43TAP000H6LF is a 2 mm pitch right angle receptacle backplane connector designed for vertical female orientation with 4 rows, providing 96 contact points for high-density connections.

The connector housing is made from liquid crystal polymer, ensuring mechanical stability and durability even in demanding industrial environments. The contacts are manufactured from copper alloy and plated with gold, delivering excellent electrical conductivity and corrosion resistance.

The connector supports a current of 1 ampere and operates reliably across a temperature range from -55°C to 125°C. Its termination type is solder, and it is mounted through hole, facilitating robust mechanical and electrical bonding to PCBs.

This product complies with UL94 V‑0 flammability requirements and carries RoHS, UL, and CSA approvals, signifying its adherence to quality and environmental standards.

The Metral series connectors are modular and scalable with options of 1, 2, 4, and 8 modules, enabling flexible configuration. They feature press-fit, solder-to-board, and pin-in-paste terminations with varying pin lengths supporting first-mate, last-break capability. The dual beam contact design enhances electrical reliability and vibration resistance, making it ideal for industrial, electronic, automotive, and communication applications requiring secure backplane connections.

This connector allows stacking with Metral® high-speed range connectors and supports flexible loading for low and high-speed signals. Accurate positioning on PCBs is possible with locating peg options, ensuring secure and reliable interconnections in demanding systems.

The connector supports a current rating of 1 ampere. Housing material is liquid crystal polymer for enhanced durability. Contact material is copper alloy with gold plating for superior conductivity. Termination type is solder with through hole mount style.

Operating temperature ranges from -55°C to 125°C. Meets UL94 V‑0 flammability standard and is RoHS, UL & CSA approved. Modular and scalable design enables flexible configurations. Dual beam contact design provides electrical reliability and vibration resistance.

Compatible with Metral® high speed range for stackable connectors.

This backplane connector is manufactured in China and is suitable for a broad range of industrial and electronic applications requiring high signal density and reliable mounting solutions. EnvMart offers this product as part of the Backplane Connectors category for professional use in electronics manufacturing and system integration.
