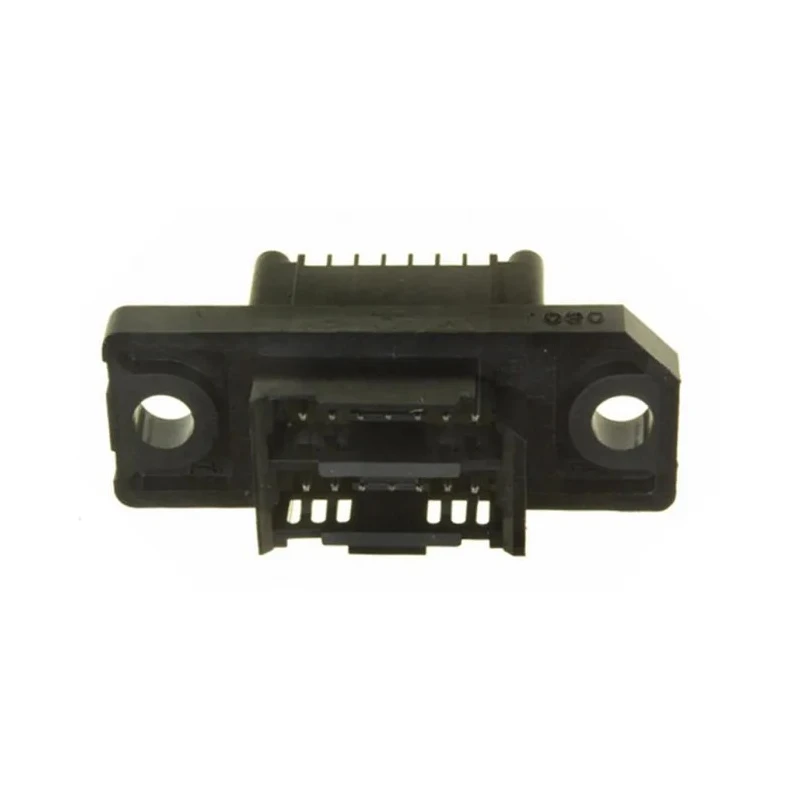

TE Connectivity Mini-Drawer 2 mm Pitch Connector Assembly Backplane Connector Straight Male 2 Row 14 Way 5-292177-1

TE Connectivity 5-292177-1 Mini-Drawer 2 mm Pitch Connector Assembly is a high-quality backplane connector featuring a straight male configuration with 2 rows and 14 contacts. This connector assembly is designed for panel mounting with a thermoplastic housing and gold plated copper alloy contacts to ensure excellent conductivity and corrosion resistance.

Rated for 1 ampere current and 125 V AC voltage, this connector operates reliably over a temperature range of -20°C to 120°C. The 2.00 mm pitch allows for dense PCB layouts, suitable for modern electronic equipment.

Part of the Mini-Drawer series, this connector assembly facilitates secure and precise connections in wire-to-board and wire-to-wire applications, frequently used in industrial electronics, audio-video systems, automation equipment, and computational racks.

The solder termination type enhances mechanical stability and electrical integrity for long-term operation. Its compact size and gold plating on contacts assure low insertion force and optimal mating cycles.

The connector features a straight male orientation with gold plated contacts for reliable signal transmission. It supports a current rating of 1A and voltage rating of 125 V AC. Constructed with a thermoplastic housing, it offers durability and maintains performance from -20°C to 120°C.

The connector system uses a 2.00 mm pitch for compact board designs and solder termination type. Ideal for electronic systems requiring secure and compact backplane connections in industrial and commercial applications.

It is categorized under Backplane Connectors in the Electronics & Electricals domain, suitable for advanced industrial applications, data center infrastructure, and electronic assembly processes.
