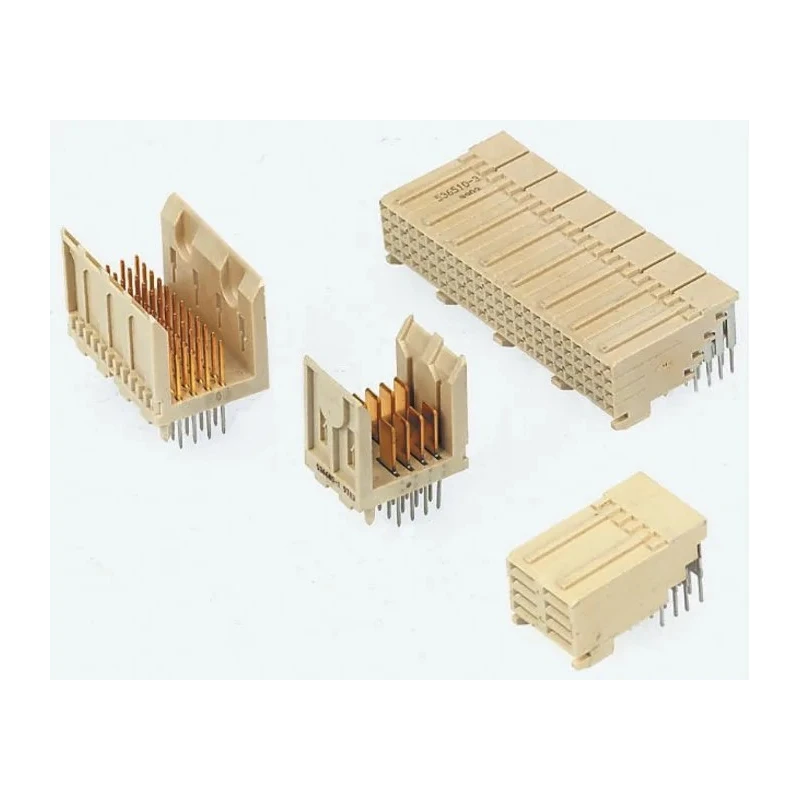

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Right Angle Female 30 Contacts 5223008-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Right Angle Female 30 Contacts 5223008-1

Name: TE Connectivity Z-PACK 2 mm Pitch Futurebus+ Backplane Connector Right Angle Female 30 Contacts 5223008-1
Brand: TE Connectivity
SKU: 220251
Price: 8.14 USD
Availability: InStock



Category Backplane Connectors Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	30V ac
Brand	TE Connectivity
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	Z-PACK
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	5
Number of columns	6
Pitch	2mm
Contact Plating	Gold over Nickel
Number of Contacts	30
Contact Gender	Female
Connector Gender	Female
Backplane Connector Type	Futurebus+

Key Features

This connector features 30 contacts arranged in 6 columns and 5 rows for reliable connectivity.
It supports a current rating of 3A and voltage of 30V AC, suitable for demanding electronic applications.
The housing is made from Liquid Crystal Polymer providing durability under operational conditions.
Contacts are made of phosphor bronze and plated with gold over nickel to ensure excellent conductivity and corrosion resistance.
The connector is designed for through-hole mounting, enabling sturdy PCB attachment.
The operating temperature range is from -55°C to 125°C, allowing use in harsh environments.
Complies with Futurebus+ standards and IEC 1076-4-0X-(48B) specifications for backplane connectors.
Originating from China, this product delivers industrial-grade performance for electronic system manufacturing.

Product Description

TE Connectivity 5223008-1 is a Futurebus+ 2 mm pitch backplane connector designed to provide high-density, high-speed signal and power connections in electronic assemblies.

This right angle female connector features 30 contacts arranged in 6 columns and 5 rows, making it ideal for interconnection between daughterboards and motherboards or backplanes in electronic equipment.

Constructed with a durable Liquid Crystal Polymer housing, it withstands demanding conditions with a temperature range from -55°C to 125°C. Its contacts are made from phosphor bronze with gold over nickel plating to ensure reliable electrical performance and corrosion protection.

The connector mounts through-hole on printed circuit boards and complies with Futurebus+ and IEC 1076-4-0X-(48B) industry standards, ensuring high-quality interoperability and modular stacking capability for complex electronics systems.

This product is widely used in industrial, telecommunications, and data processing applications where high-speed and reliable backplane connections are critical. High density, 30-way Futurebus+ backplane connector. Right angle female orientation with 2 mm pitch.

Phosphor bronze contacts plated gold over nickel for performance and durability. Liquid crystal polymer housing for durability and thermal stability. Through-hole mounting ensures strong PCB mechanical connection. Operates reliably in temperature ranges from -55°C to 125°C.

Complies with Futurebus+ and IEC 1076-4 standards. Explore more connectors and components in the Electronics & Electricals category at EnvMart for industrial and manufacturing applications.
